Evaporation Technologies

devex-evaporation-plant-2

Devex-evaporation-plant

Ancient civilizations discovered that plant extracts were useful for the treatment of pathologies. The origin of plant extraction cannot be specifically verified, but we can infer that the earliest attempts at plant extraction were more intuitive than scientific. Today, the extraction of compounds is a precise process with plant extraction systems complimenting traditional knowledge.

Plant extracts

Essential oils are known as the liquid gems of nature. The sweet-smelling essences impact not just our senses but also our biochemical and cellular make-up. Besides aromatherapy, the products of an essential oil extraction system found applications in pharmaceuticals and foods.

Essential oil

Detergents are cleaning agents that help remove dirt and grease from porous and non-porous surfaces. Industrial production of detergents began after World War I. Still, it was after the 1950s and 1960s that the detergent industry grew exponentially due in part to the development of new detergent manufacturing equipment.

Detergents

Liquid

Evaporation technology is used to reduce or remove the moisture content of a mixture. Considerations for choosing suitable evaporation equipment include the moisture content in the mixture, the boiling point of the solvent, heat sensitivity of the product, and the amount of material to be processed. Evaporators are used for applications such as obtaining fruit and vegetable concentrates in the food industry, concentrating aromas and herbal extracts in the cosmetics industry, and isolating active ingredients in the pharmaceutical industry.

Industrial

In the food, pharmaceutical, and chemical industries, separating liquid multi-component mixtures is essential to concentrate solutions, recover substances, or recycle water. Traditional methods often fall short in efficiency and sustainability requirements.
<h2>Optimize liquid mixture separation and concentration</h2>
The DEVEX evaporation plant for liquid mixtures is a versatile solution designed for the thermal separation of liquid multi-component mixtures. It excels in concentrating mixtures and recovering individual substances such as solvents and recycle water. DEVEX offers various types of evaporators, including plate or shell and tube, operating in falling film or rising film modes, as well as flash, natural circulation, or forced circulation options. The system integrates advanced features such as multi-stage designs and vapor compressors, which significantly reduce energy consumption and operating costs. Ideal for complex products requiring specific technologies, the DEVEX plant is customizable, ensuring high efficiency, yield, and compliance with the latest sustainability standards. Key industries include food, pharmaceuticals, and chemicals.

Evaporation plant for liquid mixtures

Concentration

Evaporation

Purification is the removal of contaminating substances and by-products to increase the level of purity of the desired substance. Considerations for choosing a suitable purification system in the industry, include the physical state of the mixture, the desired product, required level of purity, the type of mixture, heat sensitivity of the product, number of purification steps needed, and the production volume. Industrial purification systems are used for the production of pure water in the food pharmaceutical and biotech industries.

Purification

Recovery

Industrial separation equipment encapsulates the separation process which is to separate components of a liquid mixture, for recovering dissolved solids from liquids. The choice of a suitable technology depends on the identification of the key physical or chemical property, such as size, mass, density, or boiling point, which sets the product of interest apart from the rest of the components. Separation technology is widely used in the pharmaceutical and chemical industries for the isolation of active ingredients and high-purity chemicals. As well as in waste management and recycling industries.

Separation

liquid

Batch

Pilot

In the chemical, pharmaceutical, and fine chemicals industries, the need often arises to evaporate light boiling components from mixtures while maintaining gentleness on temperature-sensitive substances. Conventional methods can be time-consuming and inefficient for pilot and small-scale productions.
<h2>Increase evaporation efficiency with reduced thermal stress</h2>
The QVF® ROTADEST by De Dietrich Process Systems is designed for solvent evaporation and various chemical reactions in both EX-rated and non-ex-rated areas. It utilizes a rotating spherical flask made of borosilicate glass 3.3 for excellent corrosion resistance and process observation. It ensures an efficient and gentle evaporation process with its mechanical PTFE/ceramic seal, protecting against low vacuum and slight overpressure. The system's heating bath can be raised or lowered hydraulically, making it suitable for both batch and semi-continuous processes. Available in 50 and 100-liter capacities, it supports controlled operation through an integrated touch panel and offers flexible condensation configurations for diverse applications.

Rotary evaporator for solvent evaporation

<span style="font-weight: 400">The heating process is a step of raising the temperature of food, pharma, cosmetics, and many other types of products. You may employ different heating solutions for this process, depending on the type of product you intend to manufacture. Selecting the appropriate heater machine for your product is quite important since various products require different ranges of temperatures and different ways of heat transfer using exchangers. Industrial heating equipment varies in two ways - the type of material it can process and the reaction you want to achieve.</span>

Heating

solid

In analytical and quality control laboratories, precise and efficient sample preparation is crucial for accurate results. Techniques like solvent evaporation before analysis often require methods that protect sensitive compounds and reduce processing time.
<h2>Efficiently evaporate samples to specified volumes</h2>
The SyncorePlus by Buchi is a parallel evaporation system designed to concentrate multiple samples to final volumes of 0.3 mL, 1.0 mL, or 3.0 mL. The system offers two configurations: SyncorePlus Analyst for precise volume reduction and SyncorePlus Polyvap for high throughput evaporation to dryness. Equipped with vacuum-vortex technology, it ensures gentle evaporation conditions, protecting volatile and heat-sensitive analytes. The automated system allows for unattended operation, optimizing laboratory workflows. The SyncorePlus Analyst can handle up to 12 samples simultaneously, with temperature controls ranging from 20 to 100 °C and a rotation speed of 60 to 400 rpm. Its design includes individual sample sealing and a cooled appendix to prevent cross-contamination and loss of volatile compounds. Buchi's intelligent design and wide range of interchangeable racks enhance adaptability to various workflows.

Parallel evaporation system for laboratory sample preparation

Filling lines are used extensively in all industries, such as food, pharmaceutical, chemical, and cosmetics, to accurately package different products into a container suitable for that product. Although the filling process is at the very end of the production line, it is no less important than the earlier steps. Last but not least, the idiom that dates back to 1382 when John Wyclif wrote the firste the laste, and the laste the firste, indicates just that the last things on a list are just as valuable as the previous ones. In this case, this idiom fits perfectly.

Filling

Manual

Efficient and precise solvent removal is critical in various laboratory processes, including sample preparation and concentration. Common challenges include maintaining consistent control over evaporation parameters and ensuring reliable outcomes with minimal user intervention.
<h2>Streamline solvent removal with modular flexibility</h2>
The Rotavapor® R-300 by Buchi offers a versatile and convenient solution for rotary evaporation, catering to the needs of different laboratory applications. Its modular design allows customization to specific requirements, enabling a personalized platform that can handle evaporation tasks with varying degrees of complexity. Equipped with features such as a one-touch interface, Combi-Clip for fast flask handling, and options for manual and automatic lift mechanisms, the system ensures ease of operation. The I-300 Pro interface enables users to program standard operating procedures (SOPs) and monitor the distillation process remotely via a mobile app. Integrated BUCHI Cloud Services provide updates and maximize system uptime with self-service tools. The Rotavapor R-300 systems have a temperature range of 20-220 °C and can handle evaporation flasks from 50 mL to 5000 mL, making it suitable for various processes in the chemical, pharmaceutical, food, environmental, and academic industries.

Rotary evaporation for laboratory applications

Industrial distillation equipment is used in the process of separating different constituents of a liquid mixture. Considerations for choosing suitable distillation systems include the boiling points of the components, heat sensitivity of the product of interest, pressure requirements during the process, and the scale of production. Distillation is used for concentrating extracts such as herbal extracts, flavors, and aromas in the food industry. In the pharmaceutical industry, distillation is used in the production of active ingredients and in the chemical industry for the purification of chemical products.

Distillation

Continuous

In laboratory settings, precise temperature control is essential for processes such as rotary evaporation and extraction. Traditional water-based cooling systems can be inefficient and wasteful, leading to high water consumption and inconsistent results.
<h2>Optimize cooling efficiency and reduce water usage</h2>
The Recirculating Chiller F-305 / F-308 / F-314 from Buchi is designed to enhance cooling efficiency during evaporation and extraction processes. These chillers are ideal for integration with the Rotavapor® R-300 system for fully automated rotary evaporation. The closed-loop circuit system efficiently recirculates coolant, eliminating water waste and minimizing environmental impact. Users can benefit from different cooling capacities ranging from 250 W to 1400 W, depending on the model. Temperature settings are easily managed either directly on the chiller or via the central Interface I-300 / I-300 Pro, allowing for dynamic pressure adjustments and improved distillation performance. Additionally, the ECO-mode significantly reduces energy use by switching into standby mode when not in operation, further supporting sustainable lab practices. Each model, differing in tank capacities from 3 L to 6.5 L, ensures you have options to suit different laboratory scales.

Recirculating chiller for evaporation and extraction

Industrial cooling equipment varies according to the consistency and temperature conversion demands the material you are handling, but the process typically involves heat exchange treatment as your products are conveyed through a cooling chamber equipped with extraction fans or circulating water. Temperature control is a crucial aspect of your commercial production and cooling systems are applied to a range of industries.

Cooling

Industrial extraction equipment unlocks the valuable compounds hidden away in natural materials. Automated extraction equipment is applied in the pharmaceutical and cosmetic industries to extract active compounds from medicinal plants or herbs. For example, extracting cannabinoids from cannabis plants. But the process is also fundamental to the food industry, recovering various components like aromas, oleoresins, and proteins.  Considerations for selecting suitable extraction technology include the type of plant material to be processed, the extract's heat sensitivity, and the production volume.

Extraction

When producing high-quality fruit jams or purees, ensuring uniform heating and preserving the integrity of the fruit pieces can be challenging. Traditional vertical systems often result in overcooked spots and loss of fruit integrity.
<h2>Enhance uniform heating and fruit integrity</h2>
The Horizontal Bowl JPB 205 by Boema S.p.A. is an advanced evaporation solution designed to overcome the limitations of traditional vertical systems. This horizontal evaporation bowl utilizes a rotating inner coil for thermal transfer instead of the typical outer jacket. The increased exchange surface and rotational movement substantially enhance the thermal exchange coefficient and reduce heat dispersion, leading to shorter work cycles. Continuous mixing by the rotating coil and blades ensures quicker thermal exchange, preventing unheated product areas and yielding uniform results. Unlike vertical cookers that often leave a cooked or burned aftertaste, the JPB 205 significantly reduces burnt particles, delivering a higher quality end product. With an adjustable motor, it is ideal for handling delicate fruits, ensuring pieces remain intact.

Horizontal evaporation bowl for fruit jams and purees

Industrial mixing equipment is used to combine two or more solid, liquid or gaseous segregated ingredients into a homogenous single product. The choice of mixing technology depends largely on the physical state of the ingredients and the desired final product. But the sensitivity of the ingredients, the process temperature, and pressure requirements are also critical factors. All these parameters result in a wide range of industrial mixers.

Mixing

For development of concentrates of extracts based on water or ethanol solvents,  a small form factor pilot evaporation plant provides the ideal solution for testing and developing product in a reliable and easy to use configuration, or for small batch processing.
<h2>Pilot evaporation plant for R&amp;D and small scale production of a wide range of concentrates</h2>

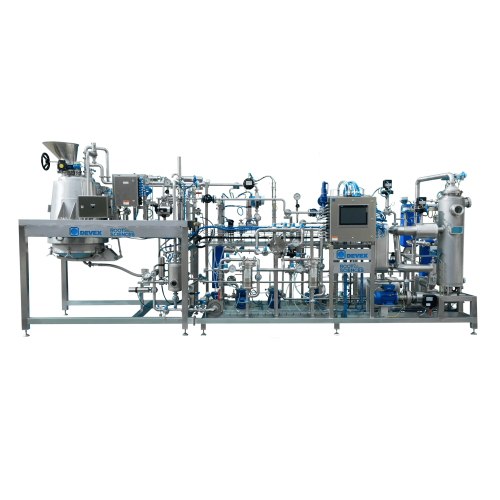

The Devex pilot evaporation plant has been designed with a 100kg per hour capacity and yet its compact construction means it can operate in the smallest of spaces.

Appropriate for use to concentrate a wide range of extractions based on water or ethanol solvent including herbal extracts and medicinal plant, coffee and tea, fruit and vegetable concentrates, and aromas and colourings.

The plant consists of a plate evaporator with a downstream centrifugal separator. The evaporated vapours are condensed in a plate condenser. A vacuum pump is connected to the condenser, and the vacuum can be adjusted between 20 and 800 mbar. The evaporation temperature can be adjusted according to the product specific boiling curve through the applied vacuum. In this way even temperature sensitive extracts can be concentrated.

Each Devex pilot plant is designed to meet your exact requirements, and can utilise various technologies such as rising film evaporators and falling film evaporators, solvent recovery, and optional thermal vapour compressor.

Pilot evaporation plant for the recovery of extracts

Bespoke evaporation plants using the latest plate evaporation technology can improve your efficiency and reduce costs when concentrating extracts for the food, pharmaceutical or chemical industries.
<h2>Production evaporation plant for concentration of a wide range of natural extracts</h2>
Devex evaporation plants are tailor-made to your exact requirements, providing a bespoke solution designed to work seamlessly with your production needs.

A huge range of options and possibilities includes plate evaporators, tube evaporators, flash evaporators and high concentrators. Economical multi-stage systems are available to minimize running costs.

Devex evaporation plants can be operated standalone, although most widely used as part of an integrated extraction, concentration and vacuum drying production process.

Appropriate for a wide range of concentrate production, including coffee, tea, fruit, vegetables, herbs and medicinal plants.

Evaporation plant for the recovery of extracts

In industries such as pharmaceuticals and chemicals, transitioning products from a liquid state to a solid bulk can be challenging. Effective drying and evaporation processes are critical for ensuring quality, uniformity, and consistency, especially when dealing with filter cakes or high-viscosity pastes.
<h2>Shorten drying times with uniform heat distribution</h2>
The Cylindro Conical Dryer CCD from Heinkel (Bolz Summix) is designed for efficient drying and evaporation of powders, liquids, and pastes. Featuring a central shaft agitator within a vacuum/pressure-rated vessel, it ensures short drying times by keeping the entire batch in constant motion. The heated helix agitator, available as an optional feature, provides uniform heat distribution, preventing cold spots throughout the process. The dryer supports a working volume from 15% to 80% of its gross capacity, making it versatile for various batch sizes. The external shaft sealing and bearings contribute to reliability and ease of maintenance. The CCD is equipped with an integrated dust filter and variable speed control for optimal product quality. The device meets ATEX and EHEDG standards, ensuring safety and compliance with industry regulations.

Vacuum drying solution for filter cake or viscous materials

Industrial drying machines are designed to remove moisture from your product. But the drying process must cater to variations in the state of matter and molecular structure of the input material. Industrial dryer technology exploits the modes of heat transfer (convection, conduction, radiation, evaporative cooling) to control the moisture content.

Drying

Processing high boiling point, heat-sensitive, or viscous materials poses challenges in maintaining product integrity while achieving efficient separation. Conventional methods often fall short, leading to thermal degradation or inefficiencies, particularly under high vacuum conditions.
<h2>Efficiently separate volatile compounds under high vacuum.</h2>

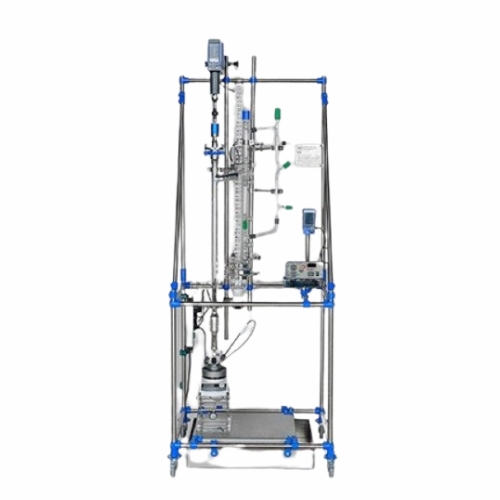

The Wiped Film Evaporator (WFE) by GMM Pfaudler is designed to handle complex evaporation applications involving high boiling points, high viscosity, and heat-sensitive products. Characterized by a continuously mechanically agitated thin film of feed material on a heated surface, it ensures high efficiency and reliability. Operating under high vacuum conditions, the WFE lowers operating temperatures to prevent thermal degradation. Unique wiper blades improve heat transfer by spreading the material in a thin film. Additional features include robust drive systems, internal condensers for true short-path distillation, and entrainment separators for enhanced purity. Sizes range from 0.1 sqm to 46.5 sqm to cater to various industrial needs, and the units are thoroughly tested before shipment to meet stringent standards.

Wiped film evaporator for high boiling point materials

Breweries need to optimize wort boiling to enhance beer quality and maintain energy efficiency. Traditional methods often lead to thermal stress and reduced hop yield. This challenge requires an effective solution to manage wort boiling and energy consumption together.
<h2>Optimizes wort boiling and energy management</h2>

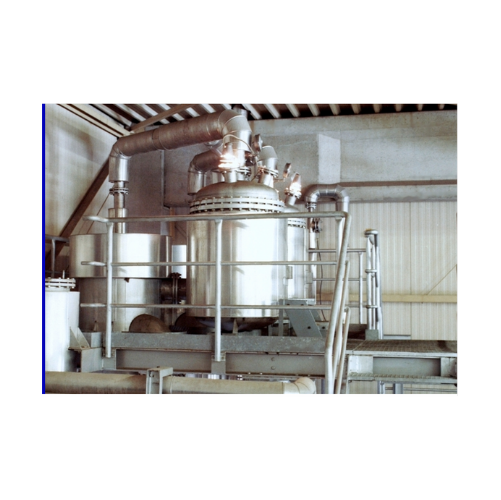

The GEA JETSTAR® is an innovative wort boiling system integrating a two-phase boiling process in atmospheric kettles. In phase one, it ensures a homogeneous circulation with minimal thermal stress using an internal boiler. Phase two leverages a two-level wort spreader for efficient evaporation. No additional circulation pump is required, reducing pulsation and facilitating a stationary operating state during heating. This system is easy to retrofit into existing kettles and is designed for hygienic operation, minimizing downtime. Supported by GEA's Intelligent Wort Management software, it allows optimal integration with any type of energy storage system. The reduced thermal stress and enhanced evaporation result in a higher hop yield and better product quality, making it suitable for varied recipe designs.

Energy efficient wort boiling system for breweries

Boiling

Entry level

During drug discovery and formulation development, producing spray-dried powders efficiently and safely is crucial. Challenges include handling both aqueous and organic solvents, maintaining a controlled environment, and ensuring portability for versatile applications in various lab settings.
<h2>Efficiently dry powders at the benchtop scale</h2>
The GSD-LAB Micro GENESIS™ by Freund is a benchtop spray dryer designed for the rapid development of spray-dried powders during drug discovery and substance feasibility studies. This system supports open loop operation for both aqueous and organic solvents, making it suitable for use under a hood or inside an isolator. Fully self-contained, it includes a stainless steel drying chamber, atomizing nozzle, cyclone, product collection container, and an optional exhaust HEPA filter, all integrated into a portable unit. The dryer features a 2-fluid atomizing nozzle and an integrated peristaltic pump system to ensure consistent spray rates. It offers validatable process control, with parameters such as inlet airflow and temperature, spray rate, and delivery amount accessible via a color touchscreen control system. Additionally, the system can record data through a USB port. The system supports an evaporation capacity of 0.5 kg/hr (based on water at 210°C inlet / 80°C outlet) and conforms to CE, ATEX, UL, NFPA, and CSA standards, making it a versatile and reliable solution for laboratory-scale spray drying.

Benchtop spray dryer for drug discovery

Formulation technologies are an integral process in many industries such as pharma and food. Chemical mixtures require strict handling to combine the separate ingredients into the homogenized recipe that makes your final product. Formulation technology stores, mixes and subjects the elements to a range processing parameters according to your specifications to develop the base material. The resulting formulas are then weighed, formed, packaged, or sent for further formulation.

Formulation

Spraying

Powder

In food processing industries, efficient water removal from various products such as fruits, tomatoes, and milk is crucial for product concentration and preservation. Traditional methods can be energy-intensive and require frequent maintenance, leading to significant production downtime.
<h2>Evaporate up to 70,000 liters per hour</h2>

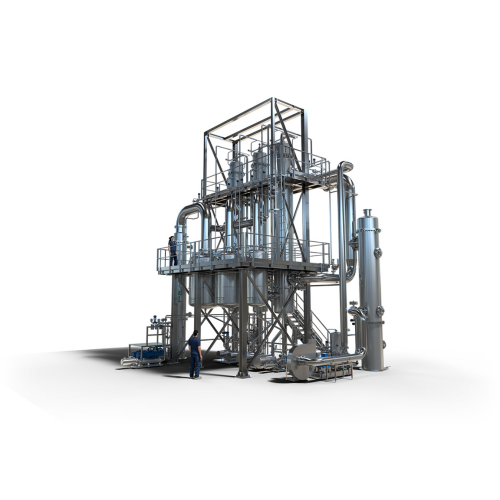

The evaporators from FENCO Food Machinery are designed to handle the evaporation of liquids in large volumes efficiently. Capable of processing between 5,000 to 70,000 liters per hour, these systems are suitable for a wide range of products, including fruit, tomatoes, and milk. The evaporators come in various configurations such as forced circulation for viscous products, falling film for low-viscosity products, and turbulent thin-layer for viscous and delicate items. Hybrid solutions are also available to optimize the characteristics of different technologies. Additionally, options for Thermal Vapor Recompression (TVR) or Mechanical Vapor Recompression (MVR) are available to optimize steam consumption. For certain products, an aroma-recovery system can be integrated. Key features include extended production times between cleaning, lower energy consumption, minimal downtime for washing, and a high degree of automation, including remote control capabilities. The user-friendly touch panel, software, and adjustable parameters simplify management.

Industrial evaporators for multi-product processing

In industries dealing with food processing, managing waste and processing residues effectively is crucial. Traditional methods may not be adequate for treating fluids from waste or wastewater, leading to challenges in energy consumption and handling different viscosities.
<h2>Optimize waste processing with effective concentrators</h2>
The Fenco concentrators offer a reliable solution for treating wastewater and food processing residues. These concentrators use recovered heat from steam, hot water from other processes, and cooking vapors to power the evaporation system, resulting in energy savings. Fenco designs multiple types of evaporators, such as forced circulation for viscous products and falling film for low viscosity products. The system is built for durability and efficiency with Duplex and Super Duplex steels for handling corrosive products. These concentrators feature prolonged production times between washes due to optimized exchanger design, low energy consumption, and limited wash times, reducing production downtime. High automation and remote control capability make them user-friendly, with a touch panel, software, and settable parameters for easy management.

Concentrators for wastewater and food processing residues

Managing thermal processes in bulk products requires precise and efficient control of heating and cooling. Traditional methods can be challenging when dealing with diverse materials like powders, granulates, and pasty substances, necessitating a flexible and effective thermal management system.
<h2>Provides precise thermal control for bulk materials</h2>
The screw heat exchanger from ETIA Group is a versatile solution designed for various applications such as cooling, heating, drying, and evaporation of bulk products. This equipment uses a screw conveyor to handle different materials efficiently, achieved by transferring heat through the screw shaft and an optional double jacket. The exchanger can operate with chilled water, steam, or other thermal fluids. Additionally, its design allows control of atmospheric conditions, making it suitable for processes requiring wet extraction, dried air injection, or steam injection. The design includes paddles attached to the screw for better mixing and homogeneous thermal treatment. Sizes range from small to large (up to Ø1m and 12m in length), offering adaptability across diverse industry requirements.

Screw heat exchanger for efficient thermal processing

When developing processes for highly viscous materials, achieving accurate mixing, degassing, and solvent recovery under safe conditions is a significant challenge.
<h2>Optimize mixing and mass transfer processes</h2>
The EKATO Pilot Plant ELA 50 is designed for process development on a 50-liter scale, especially for high-viscosity materials. Featuring a reactor equipped with a coaxial agitator system, this plant allows the operation of both central and close-to-the-wall impellers. The plant includes a vacuum station for efficient degassing and solvent recovery. Installed in an EX-proof area, it is suitable for flammable liquids and operates under well-defined fluid dynamic conditions. It supports a range of processes including batch or semi-batch, single or multiphase, suspension, dispersion, and solvent evaporation. The plant optimizes conditions to minimize mixing times, maximize mass transfer, provide efficient solids suspension, and increase heat transfer.

Pilot plant for highly viscous applications

Dispersion

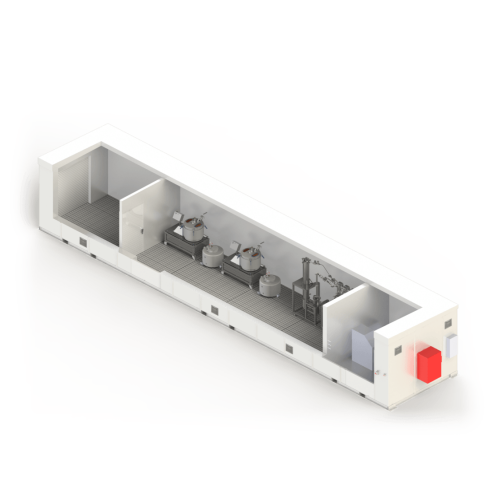

In the cannabis extraction industry, setting up a compliant and efficient processing lab can be time-consuming and costly. Navigating permitting requirements, ensuring safety compliance, and integrating all necessary extraction equipment are common challenges faced by operators.
<h2>Comprehensive, modular ethanol extraction processing</h2>

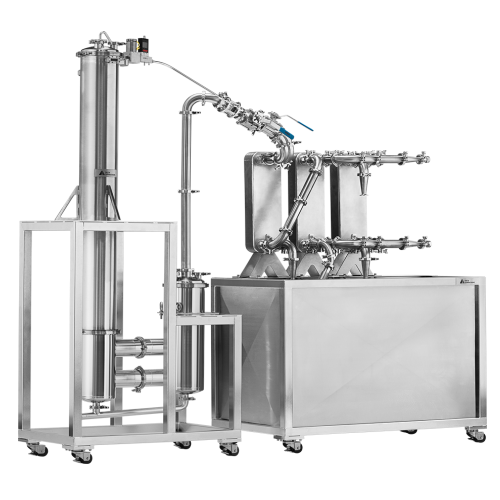

The PRO-POD Max from Delta Separations is a modular ethanol extraction processing lab designed to simplify and expedite lab setup while ensuring compliance and safety standards. Featuring a fully functional C1D2 certified extraction environment, the PRO-POD Max integrates chilling, extraction, filtration, evaporation, and distillation equipment within a portable structure. Designed for safety and efficiency, it includes a 4-hour fire rated steel structure, an FM Global approved secondary containment, and a dry chemical fire suppression system. The modular lab space can be configured to accommodate specific end-product outputs, attaching directly to on-site plumbing and electrical systems. The standard package includes heavy gauge steel walls, epoxy-coated secondary containment, seismic tie-down pads, and a chemical-resistant interior and exterior paint. Additionally, the lab meets DOT placard and NFPA rating requirements.

Portable ethanol extraction processing lab

Industrial filtration equipment separates solid matter from liquid by using a filter medium. The filter allows only the fluid to pass through but retains the solid matter. The choice of filtration equipment depends on the particle size, the consistency of the mixture, and the nature of your product.

Filtration

In various industrial sectors, the need for efficient water removal from solutions and slurries is crucial to improve product concentration and quality. Processes such as waste reduction and by-product reclamation are significant challenges that require tailored evaporation systems.
<h2>Optimize water removal with tailored evaporator systems</h2>
The evaporators developed by Dedert are designed to deliver energy-efficient solutions across multiple industries including plant-based proteins, chemicals, and food ingredients. Dedert offers a range of heat transfer surfaces such as falling film, forced circulation, and rising film plate to accommodate different applications. With over 50 years of expertise, Dedert’s evaporators incorporate advanced technologies like Mechanical Vapor Recompression (MVR) and Thermal Vapor Recompression (TVR) to minimize steam consumption and operating costs. Additionally, their waste energy recovery systems utilize exhaust from other plant operations, further enhancing sustainability. Dedert provides both skid-mounted and integrated solutions to meet specific client requirements, ensuring flexibility and efficiency for various processes.

Industrial evaporators for diverse applications

In chemical processing, you often need to separate crystalline solids from liquid solutions. This is essential when dealing with precipitation, purification, or reducing waste volume in operations like pharmaceuticals or pollution control.
<h2>Produce and purify crystalline solids efficiently</h2>
The Dedert evaporative crystallizer is designed to produce solids from a wide range of process and waste solutions. It handles products with high boiling point elevations, making it versatile for various industries including chemical, pharmaceutical, and food. This system works by continuously mixing feed with a circulating slurry of precipitated solids. The slurry flows through heat-exchange tubes where condensation provides the necessary heat for evaporation. Commonly used energy sources for evaporators are also applicable to these crystallizers. Dedert offers both Forced Circulation Crystallizers and skid-mounted solutions which come pre-assembled with heat exchangers, structural steel, pumps, motors, instrumentation, control valves, and piping. Each unit can be customized with 3-D modeling and optional code stamps for pressure vessels.

Evaporative crystallizers for chemical processing

Crystallization

In the chemical and pharmaceutical industries, processing temperature sensitive products can be challenging. Traditional evaporation methods often compromise product integrity due to high temperatures and extended heating times, which can cause thermal degradation and material loss.
<h2>Ensures efficient evaporation with low residence time</h2>
The Thin Film Evaporator from De Dietrich is designed for the efficient evaporation of temperature sensitive products. By creating a thin film of liquid on the inner surface of a vertical pipe through a rotating wiper system, it minimizes residence time and operates at low evaporation temperatures. This method reduces hydrostatic pressure and avoids thermal degradation. Available in materials such as Stainless Steel, Alloy, Borosilicate Glass, and Glass-Lined Steel, these evaporators offer high evaporation rates and can handle highly viscous products and those containing solids. The transparent borosilicate glass construction allows for direct observation and optimal adjustment. With sizes ranging from DN40 to DN600, the system accommodates different operational needs in industries such as specialty chemicals, pharmaceuticals, and green chemistry.

Thin film evaporator for temperature sensitive products

In the chemical and pharmaceutical industries, achieving high evaporation rates and continuous distillation processes can be challenging. Controlling product residency time is crucial for effective evaporation and reactive distillation.
<h2>Optimize evaporation and continuous reactions</h2>
The Horizontal Thin Film Evaporator from De Dietrich provides a highly efficient solution. Its horizontal arrangement allows precise control over product residency time, resulting in elevated evaporation rates. The system is suitable for continuous distillation and can also handle continuous reactions and reactive distillation. Key benefits include advanced thermal separation capabilities and a design that ensures a consistent thin film, enhancing heat transfer efficiency. This equipment is particularly valuable in the chemical and pharmaceutical industries, where maintaining precise control over processing conditions is essential.

Horizontal thin film evaporator for continuous distillation

In industries processing high viscous or solid-laden liquids, traditional evaporators often struggle with maintaining efficiency and preventing clogging. These challenges are common in chemical, pharmaceutical, and food industries, where effective concentration and evaporation processes are crucial.
<h2>Handle viscous products with high evaporation rates</h2>
The Force Circulation Evaporator by De Dietrich is designed to manage high viscous and solid-laden liquid streams. The system uses a recirculation loop, where the feed liquid is pumped through a heat exchanger to be superheated and then directed into a flash vessel. Low boiling components are evaporated out efficiently. Thanks to its high global heat transmission coefficient, the evaporator processes materials with solid content effectively. It is also suitable for multiple effect evaporation or vapor recompression setups to achieve significant energy savings. The equipment can be accommodated in a horizontal arrangement, adding flexibility to installation in various industrial settings.

Force circulation evaporator for high viscous products

In industries requiring the separation of volatile components from liquids, reducing energy consumption and minimizing thermal impact on products can be challenging. These processes need effective evaporation methods to achieve precise and gentle separation.
<h2>Achieve efficient thermal separation</h2>
The Falling Film Evaporator by De Dietrich Process Systems ensures gentle and efficient thermal separation with minimal investment. The product feed enters from the top, and using a distribution system, it is evenly distributed across the tubes. Gravity pulls the liquid film downward, evaporating the volatile fraction as it descends. Depending on the configuration, the evaporated fraction exits either through the top or the bottom. The design's low residence time and compatibility with multiple effect evaporation or mechanical vapor recompression make it energy-efficient. The falling film evaporator is particularly useful in processes requiring minimal thermal impact, like in the pharmaceutical and fine chemicals industries.

Falling film evaporator for thermal separation

In oilseed processing, traditional desolventization methods can often cause overheating and degradation of temperature-sensitive products. Effective and rapid solvent removal is vital to maintain quality and efficiency in these contexts.
<h2>Rapid solvent removal with precise temperature control</h2>
The Flash Desolventization System by Crown Iron Works is a pneumatic conveying dryer specifically designed for oilseed processing. It brings solvent-wet products into direct contact with superheated solvent vapors. This approach ensures that all the heat required for evaporation is provided during the initial mixing phase. As a result, the majority of the solvent is flashed off the flakes within seconds, protecting the product from overheating through evaporative cooling. The system operates in a vapor-tight controlled environment, which further preserves product integrity. Its simple design and ease of operation make it a practical choice for various industries, including biofuel, nutraceuticals, and pharmaceuticals. The vertically oriented, small footprint design also contributes to space efficiency in processing plants.

Flash desolventization system for oilseed processing

In the industrial production of tomato products, conventional evaporators often struggle with high energy consumption and frequent downtime for cleaning, leading to increased operational costs and inefficiency.
<h2>Maximize energy savings and minimize downtime</h2>
The ART3MIS Longrun MVR™ by CFT Group is a state-of-the-art evaporation solution designed specifically for high-quality HB tomato mid-concentration products. Utilizing the most advanced MVR (Mechanical Vapor Recompression) technology along with a descending circulation design, this evaporator achieves virtually zero steam consumption by using 99% electrical energy, significantly reducing CO2 emissions. It operates continuously for up to 90 days without requiring cleaning at a concentration of up to 14 Bx and for 30 days at up to 16 Bx, making it highly efficient for long production cycles. With water removal capacity up to 70 tons/hour and a 25% higher heat transfer coefficient compared to traditional rising/descending evaporation systems, it ensures superior product quality with improved heat transfer efficiency and reduced residence time.

Energy efficient tomato evaporator

In high-precision thermal processing, achieving uniform temperature distribution along a heated area is crucial. Specific applications, such as chemical vapor deposition, require carefully controlled temperature gradients to ensure process efficacy and product quality.
<h2>Enables precise temperature profile control</h2>
The AZ is an eight zone tube furnace designed by Carbolite Gero for creating controlled temperature profiles. This model features thick insulation and highly symmetrical winding of heating elements, ensuring a temperature uniformity of better than ± 5 °C. Each of the eight zones can be individually controlled and monitored using thermocouples, extending the uniform length inside the furnace and allowing for precise control of temperature profiles. This capability is particularly useful in processes like chemical vapor deposition, where a gradient is needed for the evaporation of precursor material and sublimation onto a substrate. The system includes automatic operation and data recording for quality management, along with the option for sophisticated digital controllers, multi-segment programmers, and data loggers. Additionally, a variety of tube diameters and materials, over-temperature protection, and modified atmosphere and vacuum assemblies are available on request.

Eight zone tube furnace for controlled temperature profiles

Industrial measurement equipment is used as a crucial step before products leave the production line. These measuring instruments check for correct dosage and standards. Equipment for measurement and control employs a wide range of technologies to detect inconsistencies in volumes, sizes, weights, and fill levels as well as to inspect goods for quality against a set of criteria. Specialized measuring tools allow you to minimize the probability for error to its lowest possible, ensuring that both products and packaging meet your benchmarks.

Measurement &amp; Control

Processing

When producing high-quality chocolate, achieving optimal conching is vital to improve viscosity, yield, and taste. Traditional methods may not effectively remove volatiles, acids, and moisture, requiring a more advanced solution.
<h2>Enhance chocolate quality with wet conching</h2>
The CWC 1000 from Caotech is designed specifically for wet conching of chocolate and related masses. This unit mixes and homogenizes ingredients while removing volatiles, acids, and moisture to improve the final product’s characteristics. The conching effect is achieved through thin-film evaporation, where a fast-rotating disc sprays the chocolate while pre-heated air blows over it. Capable of processing up to 1,000 kg/h, the CWC 1000 delivers consistent quality with minimal maintenance and energy consumption. The system can be installed on a mixing tank with a circulation system provided by Caotech or the customer.

Wet conching system for chocolate production

Conching is a critical step in the manufacturing of chocolate. In this phase, your chocolate mix is agitated and superficially scraped by a conch, allowing the cocoa butter to separate amalgamated particles and distribute your cocoa butter more evenly. The heat generated by the process volatilizes acids improving the texture and aroma of the finished product. Early machines used vessels in the shape of a conch shell, giving the equipment its name.

Conching

Homogenization is the process of reducing particle size in mixtures to improve the consistency, uniformity, and stability of the product. The choice of a homogenizer depends on the nature of the product, desired particle size, the physical state of the ingredients, and pressure requirements during the process. Homogenization is widely used in the biotech industry for cell lysis and in the pharmaceutical industry for the emulsification of creams and ointments; it also finds applications in the cosmetics and food industries for improving the consistency and uniformity of various products.

Homogenization

Small wine producers often face challenges maintaining uniform product quality due to varying climate conditions. Managing must concentration effectively can significantly improve the consistency and richness of the final wine product.
<h2>Concentrates must with low-temperature evaporation</h2>

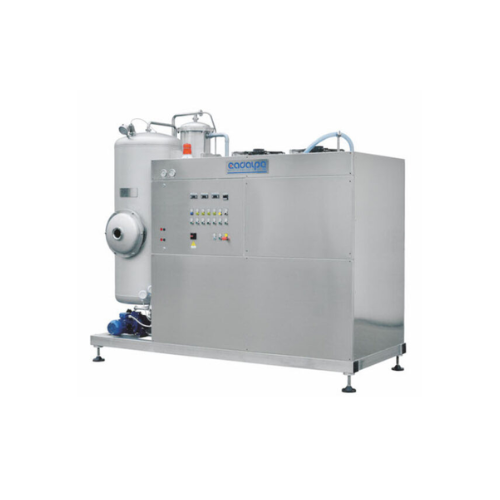

The C38 heat pump vacuum concentrator by Cadalpe offers a solution for efficient must concentration. Operating under hard vacuum at low evaporating temperatures between 20° to 24° C, it ensures delicate treatment of the must. This machine is specially designed for must from red grapes, enhancing tannin content and enriching color. Its unique descending veil evaporator prevents clogging and foam formation. The concentrator operates fully automatically and requires minimal operator intervention, turning off upon completion of the production cycle. It can concentrate the entire mass of must in a closed-loop cycle or work on a fraction of the must to achieve a concentrate of 60-65° Brix. Its energy consumption is limited to the operation of compressor motors, and water is only required for periodic washing.

Heat pump vacuum concentrator for must concentration

In the juice processing, chemical industries, and depuration processes, reducing energy and concentration costs is critical. Efficient processing technologies are needed to achieve better product quality and cost savings.
<h2>Achieve optimal concentration with minimal energy use</h2>
The C 19 vacuum concentrator by Cadalpe is designed to offer superior concentration for juices and chemicals while minimizing energy costs. It employs a multiple-effect vacuum system with a descending film to enhance product quality through minimal contact time and low temperature differences. Lower water evaporation costs are achieved via process vapor recovery and reutilization, thermal compression, and heat recovery. The concentrator operates continuously, controlled by a centralized automated system. For added efficiency, an optional stripping column for preliminary desulphurization is available. Industries such as chemical processing and beverage production can benefit from this advanced concentrator, which ensures high-speed heating and considerable water savings.

Vacuum concentrator for juice and chemical processing

In various industrial sectors, including pharmaceuticals and chemicals, there is a need for efficient and reliable evaporation processes for solvent recovery, sample concentration, and distillation. These processes must be carried out under controlled conditions to ensure safety, product integrity, and energy efficiency.
<h2>Perform automatic distillation with remote monitoring</h2>
The Rotavapor® R-220 Pro by Buchi is an industrial rotary evaporator designed to handle large batch sizes up to 10 liters. What makes this evaporator stand out is its user-friendly design combined with advanced automation features. It supports continuous operations with a distillation rate of up to 12 liters per hour for ethanol. The heating bath can reach temperatures of up to 180 °C, and the system includes a vacuum controller to manage vapor pressure. The Rotavapor® R-220 Pro is made from corrosion-free stainless steel and FDA-compliant materials to ensure durability and safety, even in harsh production environments. With programmable methods, automatic foam detection, and remote monitoring via mobile phone notifications, it offers precision and convenience. It is suitable for various industries such as chemical, pharmaceutical, and academia, facilitating processes like concentration, drying, solvent recycling, and recrystallization.

Industrial rotary evaporator for distillation

Industrial-scale distillation processes often require handling large volumes of solvent with strict safety guidelines. This applies particularly to chemical and pharmaceutical industries where maintaining a safe environment and efficient solvent recovery is crucial.
<h2>Ensure safe, efficient solvent evaporation</h2>
The Rotavapor® R-220 EX by Buchi is designed for industrial distillation with a focus on safety and efficiency. It features a high distillation rate of up to 12 liters of ethanol per hour and a maximum heating bath temperature of 150 °C. The equipment can handle sample sizes up to 10 liters per batch. One standout feature is its ATEX approval, guaranteeing adherence to strict safety guidelines. Safety is further enhanced with integrated safety cut-offs, spring-loaded valves, and an easily readable display for intuitive operation. Manufactured with corrosion-free stainless steel and high-quality inert materials, the Rotavapor® R-220 EX is built for durability and low maintenance. The optional Ex-proof vacuum pump and a range of glass assemblies ensure that the system can be customized to meet specific industrial requirements. The supplier, Buchi, ensures that the equipment complies with the latest regulations through intensive cooperation with external safety experts.

Industrial rotary evaporator for large-scale distillation

In fields such as pharmaceuticals, nanotechnology, and materials science, creating uniform, submicron particles is essential for drug delivery, catalysis, and advanced material production. Conventional drying methods often struggle with losses and inefficiency when working with minimal sample sizes.
<h2>Produce submicron particles with high yields</h2>
The Nano Spray Dryer B-90 HP from Buchi enables the generation of small particles, ranging from 200 nm to 5 μm, with an impressive yield of up to 90%. This system is designed to process sample volumes as small as 2 mL, minimizing product loss. It features a piezo-electric spray head and a high-voltage particle collector, both of which contribute to optimal particle recovery. The system supports both aqueous and organic solvents, and its gentle drying conditions help preserve the integrity of sensitive compounds. With an evaporation capacity of up to 0.2 L/h for water and higher for organic solvents, it offers unmatched productivity in laboratory settings. The Nano Spray Dryer B-90 HP is ideal for applications in pharmaceuticals, nanotechnology, and materials science, where precise particle size and high product recovery are critical.

Nano spray drying system for pharmaceuticals and nanotechnology

Rinsing

Efficiently processing multiple samples simultaneously is essential in various research, quality control, and development laboratories. Traditional single-sample evaporation methods often lead to longer processing times and potential inconsistencies.
<h2>Evaporate up to 12 samples simultaneously</h2>
The Multivapor™ by Buchi is designed to address the inefficiencies of single-sample evaporation by allowing simultaneous processing of up to 12 samples. It features an adjustable rotation range of 0 - 485 rpm and a temperature range of 20 - 95 °C, enabling precise evaporation control. The Multivapor operates with a comprehensive variety of adapters, making it flexible and compatible with existing glassware. The integrated fraction collector maximizes sample throughput and ensures efficient evaporation. The system's ease of use is enhanced by adjustable and reproducible parameter settings, as well as full visibility of samples during the evaporation process. The transfer rack facilitates easy handling, while the flexible rack replacement adapts to either 6 or 12 samples. This level of versatility and integration is particularly beneficial for users who also work with the Buchi SpeedExtractor.

Parallel sample evaporator

In the fruit juice industry, achieving high-quality concentrates while maintaining flavor and nutritional value can be challenging. Traditional methods often involve prolonged heating, which can degrade the final product, leading to a loss of both aroma and essence.
<h2>Produce concentrated fruit juices and aroma essences</h2>

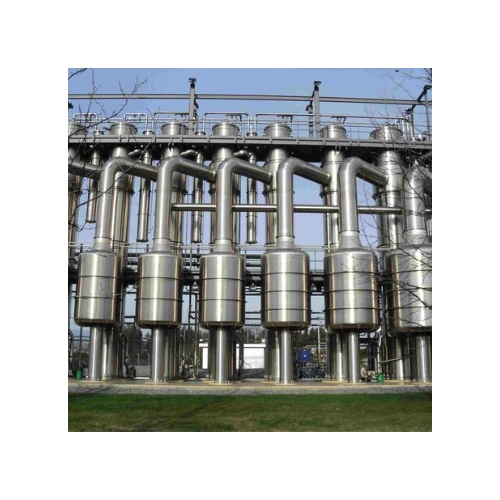

The Bucher Unipektin tubular falling film evaporator system is designed for the efficient production of concentrated fruit juices and aroma essences. This system integrates pasteurization, aroma stripping, and concentration processes in one continuous operation. The energy-efficient multi-stage design, which can include mechanical or thermal vapor recompression (MVR or TVR), enhances performance by pre-heating the feed liquid through heat exchangers using the concentrated product and condensed vapors. This results in minimal energy consumption and short processing times. The system's independently controlled pasteurizer stabilizes the product microbiologically and physicochemically before entering the evaporation columns. Optimal liquid distribution ensures even wetting inside the tubes, making the system ideal for juices with high suspended solids. Cleaning intervals are extended due to the sophisticated liquid distribution and optimized CIP system with high-performance spray nozzles. Designed by Bucher Unipektin, these evaporators facilitate high-quality juice concentrate production from a variety of fruits, including apples, pears, berries, grapes, and stone fruits.

Tubular falling film evaporator for fruit juice concentrates

The Pasteurization process is the method of subjecting liquids to mild heat at a specific temperature and time, and quickly cooling them down again in order to destroy pathogens in your fermented or semi-fermented products. Thus, increasing the shelf life of the manufactured products. Untreated microorganisms may lead to diseases, spoilage, or unwanted fermentation. Most pasteurization equipment operate in a continuous method using plate heat exchangers to keep a uniform level of high efficiency sterilization.

Pasteurizing

In the food processing industry, creating high-quality juices and purees often requires efficient concentration of these liquids. Traditional methods may not always provide the desired consistency or purity, leading to increased processing times and costs.
<h2>Customizable evaporation process</h2>
The Evaporator BEC from Boema S.p.A. is a multi-stage and multi-effect system designed to concentrate juices and purees from fruits and vegetables. This equipment can be customized to include forced circulation, falling film, or mixed circulation processes based on user specifications. The capacity and the number of effects are adjustable to meet the specific needs of the customer. Boema S.p.A. offers tailored evaporator solutions ensuring optimal performance for various applications. These systems are suitable for producing high-purity concentrates with reduced energy consumption and lower operational costs, making them ideal for diverse industries such as food and beverage manufacturing.

Evaporators for fruit and vegetable juices and purees

In the processing of fruit and vegetable products, efficient concentration of juices and purees is a common challenge. This typically requires sophisticated evaporation techniques to achieve the desired consistency and quality, while also maintaining energy efficiency and scalability.
<h2>Adjust concentration levels for fruit and vegetable products</h2>
The Boema BEC Evaporator is a multi-stage, multi-effect solution specifically designed for the efficient concentration of juices and purees from various fruits and vegetables. The evaporator can be configured with forced circulation, falling film, or mixed circulation systems based on user requirements. Users can customize both the capacity and the number of effects according to specific needs. Boema's expertise allows for the design of tailor-made evaporators, ensuring suitability for specific applications. This makes the Boema BEC Evaporator highly versatile and adaptable, providing consistent performance for industrial food processing applications. The system is particularly beneficial for those looking to optimize processing efficiency and product quality in the fruit and vegetable industry.

Evaporator for juices and purees

Producing fruit juices, nectars, soft drinks, and syrups often requires efficient concentration to maintain quality and stability. Traditional methods may lead to thermal damage and high water consumption, posing regulatory and operational challenges.
<h2>Achieve consistent concentration with advanced evaporation</h2>
The evaporators from Blendtech (Omnia Technologies) are designed to enhance the concentration of fruit juices, nectars, soft drinks, syrups, and infusions. Featuring forced circulation, falling film, or thin film types, these evaporators ensure superior product quality by minimizing thermal damage through reduced holding times. The automatic control systems adjust and maintain process parameters precisely, providing a stable operation environment. Additional features include aroma recovery and mechanical or thermodynamic compressors for enhanced efficiency. The system also boasts very low water consumption due to efficient cooling technologies and complete condensate recovery, significantly reducing operational costs. This technology is particularly beneficial for industries focused on producing high-quality concentrates with exact outlet concentration control.

Evaporators for fruit juices and syrups

In industrial settings, managing processes such as evaporation, crystallization, and aseptic cooking can be challenging due to product integrity, energy efficiency, and processing time constraints.
<h2>Enhance energy efficiency and process versatility</h2>
The T-Sensation® from Aurum is a high-efficiency reactor designed for a wide range of industrial applications including broths, sauces, vegetable creams, and more. Built from stainless steel, this horizontal reactor features several interior plates that maximize heat transfer surfaces, reducing processing time significantly. The scraping system integrated within the reactor enhances product mixing and heat transfer efficiency, ensuring high-quality results with low fouling levels. Capable of processing 50 to over 1,000 liters, it operates under both pressurized and vacuum conditions. Its design allows for various special applications such as heating dry products, evaporating, and aseptic processes. Aurum Process Technology holds the patent for this innovative reactor, making it a unique offering in the market.

High-efficiency high-capacity reactor for industrial processing

Whether it is marmalade or pizza, sauce or hummus, chocolate or fruit puree, most food products undergo a cooking step during their production process. Cooking is nothing more than applying heat to food, but there are different methods to do it. For instance, baking, frying, and roasting involve cooking food without using water, unlike boiling or steaming. Industrial cookers such as vacuum and pressure cookers, industrial fryers, industrial ovens, and industrial roasters focus on specialized applications that meet the different needs of the food industry by helping producers achieve a homogeneous cooking process.

Cooking

In applications where medium to high-viscosity fluids or particle-containing fluids need efficient and homogeneous heat treatment, conventional heat exchangers often face challenges such as fouling and uneven heating.
<h2>Reduces fouling and pressure losses</h2>
The scraped-surface rotative heat exchanger (RM series) from Aurum is designed to optimize heating processes in industrial applications. It consists of a tube bundle welded to a heating jacket, with a rotating bar equipped with scrapping elements inside the inner tubes. This design ensures that the inner surface of the tube remains free of fouling by continuously scraping it, while simultaneously stirring and mixing the product to create turbulence, which enhances efficiency. The system includes bellows or an expansion joint to balance differential expansion between the inner tube bundle and the heating jacket, thus increasing the lifespan of the heat exchanger. Suitable for both food and industrial applications, it is recommended for products like hummus, industrial fruit and vegetable processing, sauces, and infant food. Special applications include evaporation, crystallization, and aseptic processes, with notable advantages such as reduced processing times and improved end-product quality. The exchanger ensures homogeneous heat treatment, very low fouling levels, and reduced pressure losses, thereby decreasing the space needed and increasing production cycles.

Scraped-surface heat exchanger for industrial fruit processing

In many laboratory settings, managing high volumes of samples can be a challenge. Traditional evaporation methods not only consume significant time but also increase the risk of sample contamination and loss. Ensuring effective solvent removal while maintaining sample integrity is crucial for reliable test results.
<h2>Achieve precise evaporation with touchscreen control</h2>
The Genevac HT Series 3i vacuum evaporator, supplied by ATS Scientific Products, is designed to tackle high-volume parallel evaporation applications. Equipped with Dri-Pure® anti-bumping technology, it ensures foam-free, contamination-free evaporation. The intuitive touchscreen controls simplify operation, requiring minimal user intervention during runs. The SampleGuard™ temperature control system protects samples from overheating, while the flexible holders accommodate tubes, vials, flasks, and 96 well plates, making the system versatile for various sample types. Available in two models, the HT-6 and HT-12, this evaporator supports different throughput needs. Integrated with a high-performance vacuum pump and featuring an auto-defrost condenser, it minimizes maintenance and environmental impact.

High-throughput vacuum evaporator for laboratory applications

In laboratories focused on medicinal chemistry, rapid and safe solvent removal is a frequent challenge. Traditional methods can lead to sample loss and contamination. Effective containment of foaming and precise temperature control are critical for protecting vital samples.
<h2>Effortlessly remove solvents and acids.</h2>
The Genevac EZ-2 4.0 Series Centrifugal Evaporator from ATS Scientific Products is designed for effortless evaporation while maintaining sample integrity. It features Dri-Pure® anti-bumping technology to prevent foaming and cross-contamination. The touchscreen interface supports quick setup and operation without requiring special training. The series includes three models tailored to different boiling point solvents, ensuring versatility across various applications. Additionally, it incorporates high-power lamps to enhance drying performance and utilizes a low Global Warming Potential (GWP) refrigerant for reduced environmental impact. The compact design saves lab space and offers easy solvent removal with a front-facing condenser jar. Model options include resistance to hydrochloric acid, an Inert Gas Purge feature, and EXALT™ controlled crystallization technology.

Centrifugal evaporator for medicinal chemistry

The essential objectives of containment systems are personnel protection and preventing the release of toxic or infectious material into the environment. Containment is also used to prevent a product or sample from contamination by the external environment. In the chemical and pharmaceutical industries, containment solutions are used to protect the personnel from the leaking of airborne particles of hazardous substances, as powders or liquids are handled or transferred during processing.

Containment

When dealing with the concentration of low-to-medium fouling or highly viscous liquids in various industries, a significant challenge arises in maintaining efficiency without compromising product quality or space requirements.
<h2>Concentrate process liquids with minimal space requirements</h2>
The Alfa Laval AlfaVap is a rising film evaporator designed to handle low-to-medium fouling and highly viscous liquids across numerous applications and industries. This system requires 50-70% less height compared to conventional shell-and-tube evaporators, making it easier to install in existing facilities. The AlfaVap offers fast start-up and shut-down times, high heat transfer efficiency, and a short residence time, which is crucial for heat-sensitive products. It achieves high energy efficiency by using multiple effects and thermal or mechanical vapour recompression units, resulting in lower steam usage. Maintenance is minimized thanks to its self-cleaning effect, driven by high turbulence and shear rates. Typical applications include sugar refinery, sweeteners, protein processing, bioethanol, and caustic evaporation tasks. The AlfaVap system includes all necessary components, from pumps and piping to control panels, and can be pre-assembled in Alfa Laval's workshop to cut down on installation time.

Rising film evaporator for concentration of viscous liquids

In industrial processes where high-viscosity, high-fouling, and shear-thinning fluids are involved, traditional evaporation methods often struggle with efficiency and maintenance challenges. High levels of suspended solids in these liquids can further complicate the process, requiring advanced technology to manage them effectively.
<h2>Concentrates challenging process liquids efficiently</h2>
The AlfaFlash plate flash evaporator by Alfa Laval is designed for concentrating high-viscosity, high-fouling, and shear-thinning fluids efficiently. Its compact, self-cleaning design minimizes fouling thanks to a higher shear rate and increased turbulence, which creates a self-cleaning effect. This forced circulation plate evaporator handles process liquids with high levels of suspended solids, meeting medium to zero liquid discharge requirements. The system’s reduced height and weight compared to traditional shell-and-tube evaporators allow for easy installation and reduced operating costs. It is ideal for applications such as proteins, food, beverage, starch, sweeteners, life sciences, industrial fermentation, and wastewater. With excellent pre-concentration and turndown capabilities, the AlfaFlash ensures energy-efficient operation, adapting to varying feed compositions during recirculation.

Plate flash evaporator for high-viscosity and high-fouling fluids

In food processing and chemical industries, concentrating high-viscosity and high-fouling materials can be challenging. Traditional evaporation methods often fail to achieve the desired product moisture levels without compromising quality or process efficiency.
<h2>Concentrate materials to extremely high solids levels</h2>
The Convap® scraped surface evaporator by Alfa Laval is designed to handle high-viscosity and high-fouling materials with superior efficiency. The continuous scraping action and high turbulence create an impressive heat transfer coefficient, allowing it to concentrate products to nearly zero moisture. The vertical, single-wall design reduces floor space requirements, making it ideal for facilities with limited space. Operating under vacuum conditions, it preserves the color, flavor, and nutritional content of sensitive products. It is particularly well-suited for food processing applications where other methods fall short, achieving up to 99% total solids. Additionally, its robust design ensures reliable thermal performance by preventing fouling and maintaining a high temperature differential.

Scraped surface evaporator for high-viscosity materials

The removal of solvents when making products in industries like food, cosmetics, pharma and fine chemicals if often a sensitive chapter in the production process. If the solvents aren’t removed at the correct low temperature, it could have a negative impact on the color or flavor of the end product. For active ingredients, like proteins in food products, a high temperature could even lead to loss of nutrient value.


<h2>Concentrating products with steam and rotation, under vacuum</h2>
The Evapor by Okawara is a single effect, thin-film centrifugal evaporator that works under vacuum. For the concentration of heat sensitive products, viscous products, products that tend to foam and other high value products, this equipment is a good fit. The system consists of a hollow disc cone, rotating on a horizontal cantilevered shaft, using steam as a heating medium. The material that needs to be concentrated is pumped into the machine with a feed tube to have it transported to the bottom of the rotating spinning cone. Centrifugal force spreads the liquid over the heating surface in a thin layer of less than 0,1 millimeter. It passes across the heating surface in less than one second. The material like a fruit juice, dairy or other cosmetic, pharma or chemical products, is heated to the boiling point. This is controlled by the vacuum in the system. The concentrated material is then collected on the outskirts of the spinning cone by a paring tube. The product vapor will flow to a condenser where it will condensate and discharged by a pump.

The machine has a comparatively small heat transfer surface in relation to its heat transfer capacity. This results in a compact design that still has the capability to evaporate more water per unit area and doing so in less time than a more traditional evaporator. Additionally, the application of centrifugal force also helps to minimize generation of foam in a more effective way than falling film or scraped film evaporators. The evaporation temperature is between 35 to 90 C. Operating pressure is between 5,5 to 78 kPa/ 0.055 to 0.78 bar. The heating temperature can be between 60 to 100 C. Evaporation capacity is between 30 to 1,200 kilos per hour.

Evaporator for heat sensitive products

Traditionally, liquid manure processing can lose some important nutrients. An efficient full nutrient recovery system ensures that nutrient N-P-K are not lost while processing but remain in the end product while allowing easy operation.


<h2>Economic, full nutrient recovery while processing liquid slurry</h2>
Dorset’s Arnold Vacuum Evaporator is designed for processing liquid fraction with low dry matter content. Its end products are clean water and thick fraction. The system is modular, providing a complete solution for the processing of liquid slurry in 4 steps.

First, the separator moves the solids to the dryer, and the liquid to the vacuum evaporator without any flocculants. Its special configuration of the heat exchanger prevents clogging and allows easy operation. The solids from separation and the concentrate from evaporation can be dried separately or together. The system then, turns the product in a compact good-looking organic fertilizer pellet suitable for storage, long distance transport and export certification procedures.

Alternatively, a simple version of the evaporation system is also available as a standalone product. It can be used for stripping ammonia from liquids, with the end product being ammonium sulphate or ammonia water.

Evaporator for manure fertilizer

Pelleting equipment transforms powdered, mashed, or grounded material into a denser cylindrical shape. Pellet processing compresses the fine material against a perforated die, where it will be shaped and cut. Although granulating and extrusion also produce pellet-like products, manufacturing pellets is a distinct process.

Pelleting

Horizontal thin film evaporators can increase the residence time of the product and achieve high evaporation rate and high percent distillate splits.


<h2>Horizontal evaporation without losing film integrity</h2>
The VTA horizontal thin film evaporator allows you to vary the required residence time within wide ranges. The product is distributed at the heated evaporator wall by the rotor so that a turbulent circular ring forms at the whole evaporator surface. Loss of film integrity is not possible therefore very high evaporation rates and very high percent distillate splits can be achieved.

It can also be used to carry out continuous reactions and reactive distillation in the thin and turbulent film at vacuum conditions by increasing the product residence time.

Horizontal thin film evaporators

Dry dissolved or slurried crystallizing or amorphous products to a pourable powder.


<h2>Vertical or horizontal thin film drying at low temperatures</h2>
The VTA Thin film dryers can be designed as vertical or horizontal evaporators depending on the application and product properties.

Thin film dryers by VTA consist of a vertical or horizontal heated cylinder. A rotating wiper system distributes the crude product to a thin and turbulent film. The evaporation out of the product film is going on until a covering of the dried material on the evaporator wall is formed.

Glycerin Recovery, Catalyst Recovery, Organic Pigments, and “Zero Discharge” Wastewater applications are some examples of processes using thin film dryers.

Thin film dryers

With short path distillation, a substantial decrease of boiling temperature is obtained by reducing the operating pressure. It is a continuous process with very short residence time.


<h2>Evaporation at low operating pressure with very gentle distillation</h2>
The special design of short path evaporators by VTA allows operating pressures down to 0.001 mbar. The very low operating pressures ensure very low distillation temperatures and therefore a very gentle distillation is possible. The short path distillation allows the thermal separation of high molecular and high-boiling products.

Thanks to short residence time, low evaporation temperature and the immediate cooling of the concentrate, thermal stress and decomposition of the product can be minimized.

Suitable for concentration, fractionation, distillation, purification and drying of heat sensitive products and high boiling point components.

Short path evaporators

With wiped film distillation, a substantial decrease of boiling temperature is obtained by reducing the operating pressure. It is a continuous process with very short residence time.


<h2>Separate high-boiling and highly viscous materials in a wiped film evaporator</h2>
The VTA wiped film evaporator has a rotating wiper system which speeds up the evaporation process by keeping the product film turbulent so that the heat transfer and mass transfer are optimized.

The residence time of the product at the evaporator wall is very short and the vapours are condensed on an external condenser.

It is ideal for separation, drying, concentration, fractionation, distillation, deodorization and purification of materials which have high boiling points and high viscosity.

Wiped film evaporator

For pharmaceutical industries, adhering to regulatory requirements for pure steam during sterilization is imperative. Ensuring the reduction of contaminants and maintaining steam quality pose significant challenges.
<h2>Generate and distribute regulatory-compliant pure steam.</h2>
The Pure Steam Generation and Distribution system by Hydropure is engineered to meet stringent regulatory standards. Utilizing a double tube sheet heat exchanger, this system efficiently evaporates feed water to produce pure steam that is super-saturated and free of moisture. A specially designed separator ensures minimal condensate entry into sterilized equipment. All components in contact with pure steam match the material and surface finish standards of water distribution loops, ensuring compatibility and performance. This makes it an ideal choice for maintaining high purity levels in facilities requiring stringent sterilization protocols.

Pure steam generation and distribution system

Distribution

Industrial sterilization processes are employed in different industries to completely eliminate all living microorganisms from the final product. For instance, in food processing, sterilization equipment is used to produce a stable product with a long shelf-life by eradicating harmful bio-contaminants. Instead, in the medical field, sterilization technologies aim to prevent the transmission of microbes to patients by sterilizing all the tools and medical devices that come in contact with the patient. Most sterilization equipment, such as autoclaves, employs high-temperature pressurized steam to destroy bacteria and disinfect surfaces from spores. Other methods include radiation sterilization or using chemicals such as hydrogen peroxide for disinfection.

Sterilization

Industrial processes often involve drying bulk solids with high moisture content, from slurries and pastes to wet powders. Traditional drying methods can be inefficient and time-consuming, especially when dealing with temperature-sensitive materials that require precise handling.
<h2>Evaporates large volumes with minimal space</h2>
The DMR Flash Mill Dryer by Hosokawa Micron offers an advanced solution for drying bulk solids with varying moisture content. This patented system combines drying, de-agglomeration, and classifying in a single unit, making it highly space-efficient. The DMR ensures precise drying of temperature-sensitive products, achieving rapid drying in just seconds. The drying process involves dispersing wet material into fine particles using a high-speed milling rotor. These particles are fluidized by temperature-controlled hot gas, which can be heated up to 650°C. The system uses 30-40% less energy per kilogram of evaporated water compared to other direct drying technologies and requires up to 50% less space. It can handle materials such as suspensions, slurries, pastes, filter cakes, and wet powders, making it suitable for a wide range of industries including chemicals, food, and pharmaceuticals. The DMR's adaptable parameters, such as classifier speed and outlet temperature, allow precise control over the moisture content and particle size of the end product.

Ultra-fine powder flash drying system

Classifying

In industries like chemical, pharmaceutical, or food processing, separating complex mixtures efficiently and consistently is critical. Traditional separation methods can be cumbersome and less precise, leading to potential loss of yield and quality.
<h2>Control and optimize separation processes</h2>
The Continuous Distillation System from GMM Pfaudler is designed to meet the demands of efficient thermal separation processes. Using an evaporative technique, this system enables the separation of volatile components by bringing the mixture to its boiling point and then condensing the vapor. The system includes options for integration with falling film or thin-film evaporators, ensuring consistent, high-precision outputs. The unit is suited for various industrial applications, such as chemical production, pharmaceutical processes, and food manufacturing, where quality and consistency are paramount.

Industrial continuous distillation system

During tomato processing, achieving high concentration levels while reducing energy consumption presents a significant challenge. Companies are often faced with balancing production efficiency and minimizing the environmental impact, especially when processing large volumes of raw material within a limited time frame.
<h2>Reduce energy consumption in tomato concentration</h2>
The ECO-ENERGY range of forced circulation evaporators by FBR ELPO addresses the dual needs of high efficiency and energy conservation in tomato processing. These evaporators are available in single, double, triple, and quadruple effect configurations, with operational capacities ranging from 75 to 2,000 tons of incoming raw material per 24 hours. The design features particular shapes and positions of tube nests that enable the use of product circulation pumps with lower installed power, significantly reducing electricity consumption. The steam flow is countercurrent to the product, and condensation is efficiently managed by a semi-barometric condenser. Standard materials include stainless steel 304 in contact areas and hot-dip galvanized steel for support structures, ensuring durability and hygiene. The condenser is equipped with a nebulized water system and uses a centrifugal pump for water extraction.

Forced circulation evaporators for tomato concentration

In tomato processing, achieving higher Brix values efficiently is crucial for quality production. Traditional methods can be limiting, requiring frequent stops and using substantial energy and resources.
<h2>Increase brix values with accelerated juice circulation</h2>
The Eco-Saving Pre-Concentrator by FBR ELPO is a high-performance solution for tomato juice concentration. Utilizing accelerated juice circulation through advanced pumps and mechanical vapor recompression (MVR), this pre-concentrator achieves higher Brix values compared to falling film methods. Its compact and fully automatic design allows for continuous operation without the need for frequent stops. Compatible with various evaporator types, it maximizes production output while maintaining low energy consumption. The Eco-Saving Pre-Concentrator can be combined with the ECO ENERGY series to double production capacity without increasing steam and water consumption.

Tomato juice pre-concentrator

In the fruit processing industry, maintaining high-quality concentrates while reducing energy consumption is crucial. Traditional evaporators often struggle with efficiency and can result in significant energy costs.
<h2>Reduce energy consumption with precise juice concentration</h2>
The ECO-ENERGY forced circulation evaporator by FBR ELPO is designed for the concentration of pulpy juices. Available in configurations with multiple effects, it accommodates production capacities from 50 t/24h to 2000 t/24h. This system significantly lowers electricity consumption due to the optimized design and positioning of tube nests, which allow the utilization of low-power product circulation pumps. Additionally, the ECO-ENERGY evaporator features a nebulized water condenser system that minimizes unit water consumption and keeps the condenser clean. It also employs a centrifugal pump for efficient water extraction. With very low residence times and process temperatures, this evaporator ensures the production of high-quality fruit concentrates.

Evaporator for pulpy juice concentration

In cannabis oil production, achieving the highest purity and clarity in distillates is crucial. Traditional distillation methods often fall short in removing undesirable compounds quickly and efficiently, especially at an industrial scale.
<h2>Deliver high-quality clear distillate quickly</h2>
The RFD-27 by Delta Separations is a Rolled Film Short Path Distillation system designed to refine targeted compounds from crude botanical extracts. It features a durable stainless-steel construction that enhances heat transfer capacity, enabling the production of high-purity Category A distillate. The system operates at a feed rate of 4-5 liters per hour and includes advanced components such as 316L stainless steel construction, ultra-high vacuum liquid nitrogen, and dry pumps. The use of rollers in place of wipers increases the evaporative surface area, while the liquid nitrogen cold trap protects the turbo molecular pump. This setup minimizes thermal degradation and enhances the overall distillation process.
