Seed conditioning system for edible oil processing

Optimize your oilseed processing with efficient moisture reduction and homogenous thermal treatment, ensuring maximum yield and quality in your edible oil production line.

Enhances Oilseed Moisture Removal

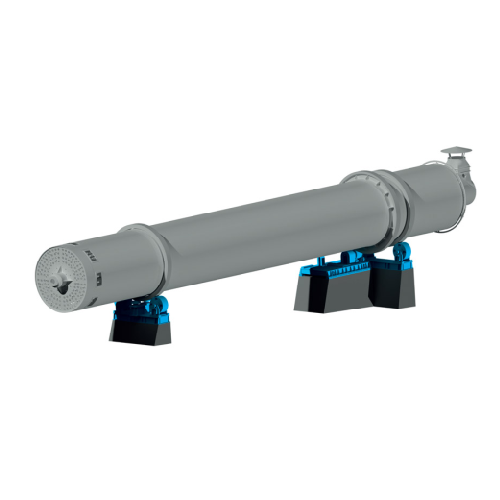

The Drum-Type Conditioner from HF Press+LipidTech delivers reliable pre-processing and conditioning for oilseed products. It features a horizontal cylindrical design with a double-jacket drum for indirect heating, utilizing saturated steam for optimal thermal treatment. This conditioner ensures intensive mixing with special agitators, leading to homogeneous treatment and effective moisture reduction, crucial for oil extraction efficiency. Ideal for edible oil manufacturers, it is commonly applied in processing sunflower, canola, and soybean oils, among others. Available in two sizes (1.25 m diameter by 7.5 m long or 2.0 m diameter by 9.0 m long), the drums can be stacked for increased capacity, supporting both full and pre-pressing systems. The design incorporates immediate vapor discharge to enhance drying efficiency, and its robust construction allows integration into existing processing lines.

Benefits

  • Boosts oil yield by ensuring optimal seed moisture content.
  • Integrates seamlessly into existing pressing systems with stackable design.
  • Enhances drying efficiency, minimizing energy waste.
  • Provides flexible capacity options for scalable operations.
  • Ensures uniform thermal treatment, improving overall process consistency.

General


Applications
Edible oils,Oilseed preparation,Rendering,Biomass,Biofuel
End products
Palm oil,Canola oil,Sunflower oil,Animal feed meal,Biomass pellets,Rapeseed oil,Biodiesel,Soybean oil,Corn oil,Flaxseed oil
Steps before
Oilseed preparation
Steps after
Pressing,Refining
Input ingredients
seed,moisture
Output ingredients
water vapor,reduced surface moisture,treated seed
Market info
Schwarte Processing HF FoodTech Group is known for manufacturing engineered-to-order (ETO) industrial equipment, specializing in processing technologies for the food industry, highlighting innovation, high-quality standards, and tailored solutions to meet specific customer needs.

Technical Specifications


Conditioner Type
Drum-type / Rotary Tube Bundle
Heating Method
Indirect heating with saturated steam
Mixing Method
Intensive mixing by special agitator
Drum Size
1.25 m diameter and 7.5 m long / 2.0 m diameter and 9.0 m long
Drum Stackability
Double,triple
Tubes Arrangement
Centrically-arranged steam-heated tube bundle
Drum Diameter
3.0 m and 3.5 m
Drum Rotation
Yes
Heating Surface
Optimum ratio
Discharge Efficiency
Immediate discharge of vapors

Operating Characteristics


Heating Method
Indirect with saturated steam
Thermal Treatment Efficiency
High due to spontaneous evaporation
Mixing Intensity
Intensive mixing by special agitator
Agitator Heating
Suitable for indirect heating
Drum Rotation
Rotating drum for homogenous treatment
Batch vs. Continuous Operation
Continuous operation
Evaporation Efficiency
Immediate discharge of vapors
Configuration Flexibility
Drums stackable (double,triple)
Heating Surface to Space Ratio
Optimum ratio
Capacity Range
Ideal for full-pressing and pre-pressing systems

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Drying Efficiency
High,due to immediate discharge of vapors
Application Use
Full-pressing and pre-pressing systems

Physical Characteristics


Drum diameter
1.25 m / 2.0 m / 3.0 m / 3.5 m
Drum length
7.5 m / 9.0 m
Discharge method
Immediate discharge of vapors
Configuration option
Drums can be stacked (double,triple)
Heating method
Saturated steam (indirect heating)
Conditioner type
Drum-type / Rotary Tube Bundle
