Microfiltration system for fruit juice and soft drinks

Ensure optimal purity and flavor retention in your beverages with a robust microfiltration system designed to seamlessly integrate into your production line, offering efficient particle removal and product recovery.

Filters and Clarifies Liquid Beverages

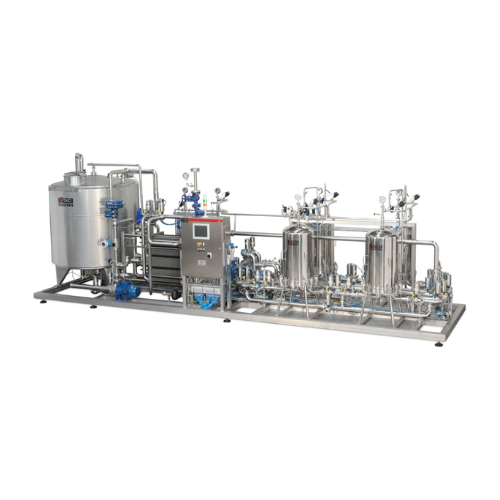

Blendtech’s microfiltration system, engineered by TMCI Padovan, is designed to meet the stringent hygiene standards of the food and beverage industry. It features AISI 316 stainless steel construction, ensuring durability and corrosion resistance. The system operates with 1 or 2-stage filtration lines, offering continuous operation by allowing filtration in one chamber while the other undergoes cleaning. It supports applications like fruit juices, nectars, soft drinks, and syrups, ensuring product clarity and microbial safety.

With a throughput ranging from 10 to 500 hl/h, this system accommodates both automatic and manual operations, controlled via a PLC with a user-friendly touchscreen interface for seamless integration into existing production lines. The use of mix-proof valves prevents cross-contamination during process transitions, while a dedicated washing circuit ensures complete sanitization. Additionally, it offers automatic filter changes, minimizing the need for manual intervention and ensuring consistent efficiency. This system is ideal for juice producers and beverage manufacturers requiring reliable filtration solutions with minimal energy consumption.

Benefits

  • Enhances product quality and safety through reliable particulate and bacteria removal.
  • Minimizes downtime with dual-chamber operation, allowing simultaneous filtration and cleaning.
  • Reduces labor costs with automated filter change and PLC-controlled processes.
  • Ensures long-lasting performance with corrosion-resistant AISI 316 stainless steel construction.
  • Increases operational efficiency with integration-ready design for seamless production line adaptation.

General


Applications
Infusions,Syrups,Nectars,Soft drinks,Fruit juices
End products
Carrot nectar,Chamomile tea infusion,Apple juice,Peach nectar,Orange juice,Lemon-lime soda,Maple syrup,Herbal infusions,Cola,Carbonated soft drinks,Fruit-flavored syrup,Corn syrup
Steps before
Deaeration,Blending,Mixing,Evaporation,Desulphuration
Steps after
Thermal Sterilization,Aseptic Processing,Packing
Input ingredients
fruit juices,nectars,soft drinks,syrups,infusions
Output ingredients
filtered fruit juices,filtered nectars,filtered soft drinks,filtered syrups,filtered infusions
Market info
BLENDTECH (Omnia Technologies) is known for manufacturing advanced engineered-to-order blending and processing equipment. Their expertise in customized solutions and reliability has earned them a strong reputation in the industrial equipment market.

Technical Specifications


Filtration Capacity
10 to 500 hl/h
Material
AISI 316 Stainless Steel
Automation
Automatic or Manual
Filtration Stages
1 or 2-stage filtration lines
Data Acquisition
Anomalies alert system
Process Control
PLC with touch screen
Valve Type
Mix-proof valves
Filter Change Control
Automatic
Product Recovery
Total recovery capability

Operating Characteristics


Automation level
Manual / PLC-controlled
CIP/SIP
Yes,for thermal sterilization
Batch vs. continuous operation
Batch / Inline Continuous
Functioning data acquisition
Alerts for anomalies
Bypass capability
Valves and by-pass for chamber exclusion
Microfiltration capacity
10 to 500 hl/h

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Juices,nectars,soft drinks


Hygiene Standards
3A Sanitary Standards
Material Standards
AISI 316 Stainless Steel

Physical Characteristics


Material
AISI 316 Stainless Steel
Capacity Range
10 to 500 hl/h
Automation Level
Automatic or Manual Version
Valves
Equipped with valves and bypass
Control Interface
Touch Screen
Filtration Stages
1 or 2-stage filtration lines
Operator Alert System
Functioning data acquisition with anomaly alerts
Interfacing Capability
Interfaces with other production devices
Mix-proof Valve Barrier
Between filtration and washing chambers
Product Recovery
Total recovery inside the plant

Custom Options


Control panel type
Touch screen PLC
Integration possibilities
Interfacing with other production devices
