Rotary evaporator for solvent evaporation

Achieve precise solvent recovery and concentration control with this rotary evaporator, essential for processes requiring gentle thermal treatment and efficient volatile compound evaporation.

Facilitates Evaporation, Crystallization, and Drying Processes

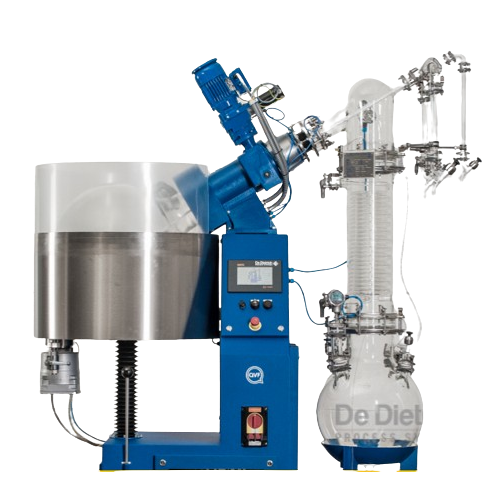

The QVF® ROTADEST from De Dietrich Process Systems is a versatile rotary evaporator designed for industrial applications in pharmaceuticals, fine chemicals, and bio-pharmaceuticals. This unit excels in gentle but efficient evaporation, crystallization, and drying of liquids, powders, and granules. Utilized in applications such as active pharmaceutical ingredients and synthetic amino acids, it handles operations ranging from batch to continuous, even in EX-rated zones. Featuring a rotating spherical flask made from corrosion-resistant borosilicate glass 3.3, the ROTADEST allows for effective thermal treatment with minimal energy consumption, owing to its electrically heated, height-adjustable bath. It ensures optimal mixing and evaporation rates through its seamlessly integrated PTFE-lined drive system. Configurable for semi-continuous and manual control, it includes advanced instrumentation for precise monitoring and logging, with EX-rated versions available for hazardous environments. The unit supports seamless integration into existing production lines with materials adhering to FDA guidelines, ensuring high chemical compatibility and straightforward cleaning, aided by its mechanical design and optional CIP systems.

Benefits

  • Enhances production efficiency by minimizing evaporation and drying time.
  • Reduces operational costs and energy use with its optimized heating system.
  • Ensures product integrity with gentle processing for temperature-sensitive compounds.
  • Offers flexibility in hazardous areas, meeting EX-rated operation standards.
  • Facilitates easy maintenance and cleaning, decreasing routine downtime.

General


Applications
D laboratories,Biofuels,Agricultural chemicals,Specialty chemicals,Fine chemicals,Organic chemicals,R,Biopharmaceuticals,Essential oils,Plant-based chemistry,Inorganic chemicals,Pharmaceuticals
End products
Active pharmaceutical ingredients,Phenol,Biodiesel components,Chlorine gas,Synthetic amino acids,Herbal extracts,Drug intermediates,Herbicide concentrates,High-performance pigments,Prototype chemical compounds,Lavender essential oil
Steps before
Mixing,Purification,Extraction
Steps after
Crystallization,Drying,Packing
Input ingredients
solvent,suspensions,powders,granulates,temperature-sensitive mediums,volatile media
Output ingredients
dry product,condensate,crystals,distillate
Market info
De Dietrich is renowned for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in chemical process systems, glass-lined reactors, and filtration technologies, with a strong reputation for innovation, reliability, and safety in the chemical and pharmaceutical industries.

Technical Specifications


Heating Bath Volume
50 l - 100 l
Rotation Speed
0 - 82 min-1
Drive Power
0.37 kW
Heating Power
9 - 12 kW
Temperature Range
Heating Bath up to ~160°C
Cooling Temperature
~15°C
Vacuum Pressure
~10 mbar
Evaporation Flask Volume
50 l - 100 l
Seal Type
PTFE/Ceramic
Material
Borosilicate Glass 3.3 / PTFE

Operating Characteristics


Working Mechanism
Rotary evaporation with film evaporation
Evaporation Rate
Higher than non-stirred glass distillation
Batch vs. Continuous Operation
Semi-continuous/Batched
Automation Level
Manual / Electric motor with frequency converter
Foam Prevention
Reduced bubbling
Vacuum Handling
Low vacuum through PTFE/ceramic-seal
Ex-rated Area Compatibility
Zone 1 IIB
Heating Bath Adjustment
Height adjustable with hydraulic cylinder
Temperature Range
Up to 160°C heating bath
Cooling System
Condenser and optional distillate cooler

Material Compatibility


Corrosive resistance (e.g. acids)
Borosilicate glass 3.3,PTFE
Biological compatibility
FDA-approved materials
Cleanability
Easy to clean PTFE and glass surfaces
Density/particle size
Suitable for varied densities/particle sizes
Abrasion resistance
Highly resistant due to material choice

Product type Characteristics


Evaporation type
Film evaporation

Physical Characteristics


Tank shape and size
Rotating spherical flask,50l or 100l
Feed method
Gravity,pump,or vacuum
Control panel type
Operating touch panel

Custom Options


Control panel type
Operating touch panel
Integration possibilities
Data logging and remote control
Heating bath type
Height adjustable with hydraulic cylinder
Rotation speed control
Stepless adjustment with gear box
EX-rated installation
Up to zone 1 IIB
