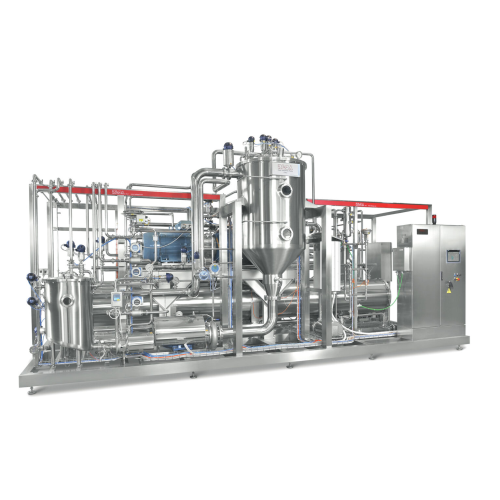

Low temperature evaporator for heat-sensitive food products

Efficiently concentrate sensitive liquid products while preserving their quality with low-temperature evaporation, ideal for maximizing consistency and flavor without thermal damage.

Concentrates and Preserves Heat-Sensitive Liquid Products

The Low Temperature Evaporator from Reda Spa is a crucial component for efficient evaporation processes across diverse food and beverage industries. This equipment is designed to concentrate heat-sensitive liquids, maintaining product quality while reducing thermal degradation risks. Utilizing low-temperature evaporation methods, it preserves the flavor and nutritional value in products like evaporated milk, yogurt concentrate, and fruit juices. Capable of continuous, 24/7 automatic operation, this system integrates seamlessly into existing production lines, supported by Mechanical Vapour Recompression (MVR) and membrane concentration units to elevate throughput and energy efficiency. The evaporator operates with minimal changes to product properties, handling concentrations up to 60°/67° Brix. This makes it suitable for dairy producers, juice processors, and wine, plant-based drink, and beer manufacturers. Constructed for durability and performance, it facilitates easy cleaning and maintenance, supported by Reda’s customization and engineering support for tailored solutions in your production environment.

Benefits

  • Preserves product flavor and nutritional integrity through low-temperature processing.
  • Enhances efficiency with 24/7 automatic operation reducing operational oversight.
  • Integrates seamlessly into existing systems for streamlined production.
  • Minimizes energy consumption with state-of-the-art Mechanical Vapour Recompression.
  • Facilitates high-quality concentration for diverse liquid food applications.

General


Applications
Cream,Plant-based drinks,Wine,Milk,Fermented products,Cheese,Whey,Drinkable milk,Beer,Dairy,Juices
End products
Uht cream,Beer wort concentrate,Cheese concentrates,Concentrated wine,Grape juice concentrate,Yogurt concentrate,Evaporated milk,Whey protein concentrate,Condensed milk,Orange juice concentrate,Almond milk concentrate
Steps before
Clarification,Pasteurization,Membrane Concentration
Steps after
Juice Clarification,Sterilization (UHT)
Input ingredients
milk,whey,juice,special products,heat sensitive products
Output ingredients
concentrated milk,concentrated whey,concentrated juice,concentrated special products
Market info

Technical Specifications


Evaporation temperature
20°/24°C
Concentration level
up to 60°/67° Brix
Automation
24/7 automatic operation
Technology type
Single stage / multi-effects / MVR
Preservation of product integrity
No product changes nor damages

Operating Characteristics


Working mechanism
Evaporation Technology
Integrated steps
Single stage or multi-effects evaporators
CIP/SIP
Automatic operation 24/7
Automation level
Automatic
Batch vs. continuous operation
Batch

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Heat sensitivity
High
Viscosity
Low to Medium
Aromas or flavors retained
Yes
Abrasiveness
Low
Concentration tolerance
Up to 60°/67° Brix

Custom Options


Control panel type
PLC/HMI
Integration possibilities
With membrane technology
Footprint customization
Compact design available
Operation mode
24/7 automatic
