Forced circulation evaporator for highly viscous liquids

Optimize energy efficiency and minimize fouling in your evaporation processes with a forced circulation evaporator designed for precise handling of highly viscous and temperature-sensitive liquids.

Evaporates and Crystallizes High Viscosity Liquids

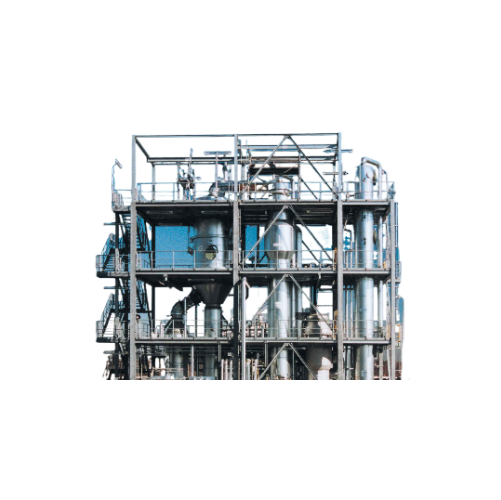

The Forced Circulation Evaporator from GEA is designed to expertly handle the challenges of evaporating and crystallizing highly viscous liquids or those prone to fouling. By utilizing a shell-and-tube or plate heat exchanger calandria with a flash/vessel separator, the equipment minimizes fouling as boiling occurs in the separator rather than on the heating surfaces. This evaporator is ideal for crafting products like salt, corn syrup, and juice concentrates, and is particularly suited for applications in food, chemical, and pharmaceutical industries. It provides seamless integration into multiple-effect evaporation plants, enhancing throughput with its continuous, high-speed operation. Equipped with a circulation pump, it enables precise control of flow velocity and liquid temperature, optimizing energy efficiency by leveraging both live steam and waste heat. Available in various material options to ensure durability and chemical compatibility, the system also supports compliance with industry standards like GMP and FDA, featuring an optional CIP system for efficient cleaning. GEA offers tailored design options to match specific product specifications and production requirements, backed by comprehensive engineering support.

Benefits

  • Minimizes fouling, extending maintenance intervals and operational uptime.
  • Reduces energy consumption by utilizing waste heat for evaporation.
  • Enhances product quality with precise control over temperature and flow.
  • Customizable designs ensure optimal integration into specific production lines.
  • Meets industry standards, supporting compliance with GMP and FDA regulations.

General


Applications
Highly viscous liquids,Evaporation systems,Saline solutions,Liquids with high tendency to fouling,Multiple-effect evaporation plants,Crystallization evaporator,Concentrated food products,Temperature-sensitive products
End products
Sweetened condensed milk,Fruit purees,Gelatin solutions,Detergents,Lactose crystals,Chemical intermediates,Starch syrups,Juice concentrates,Condensed milk,High-fructose corn syrup,Liquid egg products,Tomato paste,Salt,Corn syrup,Pharmaceuticals
Steps before
Purification,Concentration
Steps after
Crystallization,Sterilization,Packing
Input ingredients
highly viscous liquids,saline solutions,liquids with high fouling tendency
Output ingredients
crystallized products,concentrated solutions,evaporated liquids
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Evaporator type
Forced Circulation Evaporator
Heat exchanger type
Shell-and-tube or plate
Usage
Combination with Falling Film Evaporator
Application
High viscosity liquids,high fouling tendency,high concentration step
Separator location
Above calandria
Circulation method
Circulation pump
Operation period
Long periods
Boiling location
In separator
Fouling minimization
Boiling off surfaces
Flow speed control
Circulation pump controlled
Liquid superheating
Elevated pressure
Heating options
Live steam,waste heat

Operating Characteristics


Working mechanism
Forced circulation with circulation pump
Integrated steps
Flash/vessel separator
CIP/SIP
Minimized fouling through design
Batch vs. continuous operation
Continuous
Automation level
Manual / PLC
Changeover time
Fast due to reduced fouling
Energy efficiency
Optimized heat exchange surface
Cleaning method
Design minimizes need for frequent cleaning
Flow speed control
Determined by circulation pump

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
Highly viscous
Foaming
Low tendency
Heat Sensitivity
Not sensitive

Physical Characteristics


Machine footprint
Compact
Tank shape
Shell-and-tube heat exchanger or plate heat exchanger
Discharge method
Flash/vessel separator arranged above the calandria
Circulation system
Circulation pump

Custom Options


Circuit design
Single-effect / Multi-effect
Heat exchanger type
Shell-and-tube / Plate
Integration with other evaporators
Falling Film Evaporator
Flow speed control
Circulation pump-based
Energy source options
Live steam / Waste heat
Operating conditions
High concentration / High fouling resistance
