Vacuum drying solution for filter cake or viscous materials
When faced with the challenge of drying filter cake or transitioning viscous pastes to solid form, ensuring efficient heat transfer and minimal energy consumption is essential.
Processes and Dries Solids, Liquids, and Powders

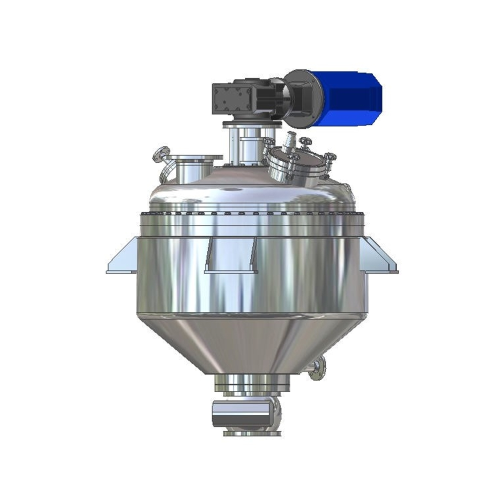

The Cylindro Conical Dryer CCD from the HEINKEL Drying and Separation Group is engineered to handle complex tasks in drying, mixing, and evaporation processes. Its central shaft agitator ensures even distribution and consistent processing of products in varying phases, from liquid to solid. This dryer is effective in industries such as pharmaceuticals, chemicals, and food processing, catering to end-products like active pharmaceutical ingredients, specialty chemicals, and protein powders. With a working volume accommodating 15% to 80% of its capacity, this dryer integrates seamlessly into batch or pilot operations. The equipment supports energy-efficient operations with excellent heat transfer characteristics, owing to its heated helix agitator and pressure-rated vacuum vessel. Available in a range of materials like AISI 316L and Hastelloy C22, it is constructed to withstand corrosive environments and offers ATEX and EHEDG compliance, ensuring safety and regulatory adherence. The inclusion of diverse sensors and CIP/WIP systems facilitates precise monitoring and straightforward maintenance, customizing options available to meet specific process requirements.
Benefits
- Minimizes drying times with constant product agitation and uniform heat distribution.
- Enhances product quality by precisely controlling agitator speed for optimal mixing.
- Increases operational flexibility, handling a wide range of product forms from slurry to solid.
- Ensures compliance with stringent industry standards, including ATEX and EHEDG.
- Facilitates easy maintenance with external shaft sealing and bearings, reducing downtime.
- Applications
- Chemicals,Fine chemicals,Surface coatings,Metal recycling,Food products,Pharmaceuticals
- End products
- Powdered milk,Protein powders,Active pharmaceutical ingredients,Specialty chemicals,Powdered paint coatings,Food flavorings,Recycled metal powders,Fine inorganic pigments,Polymer resins
- Steps before
- Filtration,Mixing
- Steps after
- Evaporation,Discharging,Packing
- Input ingredients
- filter cake,powders,liquids,pastes
- Output ingredients
- dry solids,evaporated products,uniform product quality
- Market info
- Heinkel (Bolz Summix) specializes in engineered-to-order industrial equipment, offering expertise in solid-liquid separation and mixing technologies, with a strong reputation for high-quality centrifuges, mixers, and dryers tailored to various industry needs.
- Capacity
- 100 - 20,000 liters
- Operating temperature
- 160°C,240°C
- Operating pressure
- -1 bar to +6 bar
- Explosion shock proof design
- 10 bar ESP
- Heat distribution
- Uniform with heated helix agitator
- Useful working volume
- 15% to 80% of gross volume
- Heat transfer coefficient (k-values)
- High
- Suitable for
- Powders,liquids,and pastes
- Material
- Stainless steel AISI 304,AISI 316L,AISI 316,AISI 904L,Hastelloy C22
- Surface finish
- Fine polish / electropolish for product contact
- Sanitary polish / glass bead blast for externals
- Vacuum-/pressure rated vessel
- Yes
- Helix agitator
- Optional heated,variable speed
- Shaft sealing
- Outside the drying chamber
- Dust filter
- Integrated
- Working mechanism
- Central shaft agitator
- Drying method
- Vacuum/pressure rated vessel
- Mixing element
- Helix agitator
- Batch operation
- Yes
- Heat distribution
- Uniform with no cold spots
- Product Phase Change Capability
- Liquid to solid
- Agitator speed control
- Variable speed
- Volume utilization
- 15% to 80% of gross volume
- Discharge efficiency
- Very good
- Heat transfer efficiency
- High k-values
- Safety Design
- ATEX and EHEDG compliant
- Sealing and bearing location
- Outside drying chamber
- Corrosive resistance (e.g. acids)
- AISI 316L,Hastelloy C22
- Cleanability
- Electropolished surfaces
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Abrasion resistance
- Stainless steel construction
- Viscosity
- Low to high
- Heat sensitivity
- Suitable for temperatures up to 240°C
- Powder suitability
- Yes
- Liquid suitability
- Yes
- Paste suitability
- Yes
- Abrasion resistance
- High
- Machine footprint
- Compact and space-saving design
- Tank shape
- Cylindro conical
- Volume capacity
- 100 - 20,000 liters
- Useful working volume
- 15% to 80% of gross volume
- Discharge method
- Very good discharging
- Surface finish
- Fine polish / electro-polish (Product contact),Sanitary polish / glass blast bead (Externals)
- Control panel type
- PLC / HMI
- Discharge method
- Very good discharging
- Compact footprint
- Space-saving design
- Heating jacket type
- With integrated dust filter and insulation
- Agitator type
- Central shaft helix agitator
- Rotary shaft seals
- Single- or multiple lip seal assembly,gas-purged
