Industrial rotary evaporator for distillation

Optimize your distillation efficiency with a solution designed for precise concentration, solvent recycling, and re-crystallization, ensuring maximum purity and resource utilization in complex chemical and pharmaceutical processes.

Distills, Concentrates, and Recycles Solvents

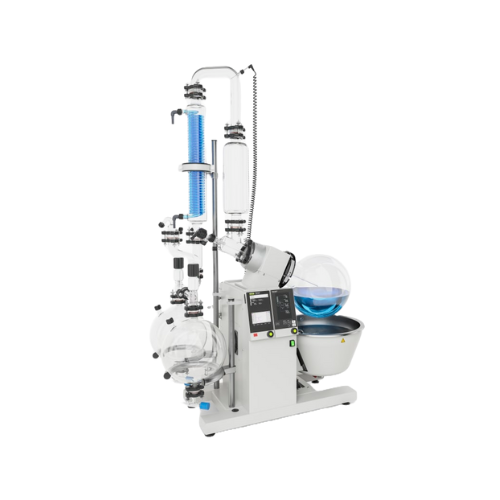

The Rotavapor R-220 Pro from BUCHI Labortechnik is an industrial rotary evaporator tailored for efficient solvent recovery and concentration in pharmaceutical, chemical, and academic settings. Utilizing a robust, corrosion-resistant stainless-steel design, it supports continuous and batch operations with configurable glass assemblies that cater to various distillation and recrystallization needs. The system accommodates sample sizes up to 10 liters per batch with a distillation rate of 12 liters of ethanol per hour, optimized through automatic distillation features and foam detection sensors.

Engineered for flexibility, the R-220 Pro offers automated, programmable SOPs, and remote monitoring via a mobile interface, enhancing process control and integration into existing lines. Its energy-efficient heating system reaches up to 180 °C while maintaining system integrity with minimal leakage. The FDA-compliant materials ensure product compatibility and safety, meeting stringent quality standards across industries. Maintenance is simplified with easy-to-clean components and optional CIP systems, making it a resilient and versatile tool in solvent recycling and chemical processing.

Benefits

  • Enhances operational efficiency with automated, programmable process control and remote monitoring.
  • Minimizes operational risks through robust, corrosion-resistant construction and safety features like over-temperature protection.
  • Increases productivity through high distillation rates and versatile batch handling capabilities.
  • Ensures compliance and safety with FDA-compliant materials and adherence to regulatory standards.
  • Reduces maintenance downtime with easy-clean designs and optional CIP systems.

General


Applications
Synthesis,Re-crystallization,Drying,Concentration,Distillation,Solvent recycling
End products
Fine chemicals,Ethanol concentrates,Recrystallized pharmaceuticals,Plant extracts,Chemical solvents,Solvent recycled materials,Pharmaceutical compounds,Essential oils
Steps before
Purification,Concentration,Sample Preparation
Steps after
Concentration,Solvent Recycling,Drying,Re-crystallization
Input ingredients
ethanol,chemical samples,pharmaceutical samples,food ingredients,foaming samples,industry-specific liquids
Output ingredients
distilled ethanol,concentrated samples,recycled solvents,dried products,re-crystallized substances,purified ingredients
Market info
Buchi is renowned for its expertise in laboratory and industrial solutions, particularly in producing high-quality equipment for chemical analysis and lab processes, known for precision and reliability in the pharmaceutical, chemical, and food industries.

Technical Specifications


Heating capacity
3600–6300 W
Power consumption
5000–7500 W
Maximum heating temperature
100–180 °C
Heating bath medium
Water or Oil
Leakage of the complete system
<1 mbar/min
Instrument height
1700–1800 mm
Sample size
max. 10 L per batch
Distillation rate
up to 12 L Ethanol/hour
Material in contact with product
FDA compliant materials
Glass assembly options
Seven available
Automation
AutoDest function and foam sensor
Programmable methods
Customized SOPs with mobile notifications

Operating Characteristics


Automation level
Programmable methods,automatic distillation
Batch vs. continuous operation
Batch / Continuous
User interface
User-friendly design,detachable touchscreen
Remote monitoring
Mobile phone with push notifications
Customizability
Four platform options,seven glass assemblies
Operational ease
Convenient flask handling with flask coupling
Safety features
Plastic coated glassware,over-temperature protection
Material durability
Corrosion-free stainless-steel construction
Continuous operation
24/7 seamless operation
Foam management
AutoDest function and foam sensor

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel

Physical Characteristics


Instrument height
1750 mm
Flask size
Up to 20 L
Sample size
Max 10 L per batch
Material in contact with product
FDA compliant materials
Control panel type
Detachable 8.7" capacitive touchscreen
Material
Corrosion-free stainless steel

Custom Options


Glass assembly configurations
Seven types available
Flexible system extensions
Wide range of accessories
Control panel type
Detachable 8.7" capacitive touchscreen
Customizable operating methods
Programmable SOPs
Platform variations
Four R-220 Pro models
