Forced circulation evaporator for high viscosity liquids

Optimize your production by efficiently concentrating viscous and heat-sensitive liquids under vacuum conditions, ensuring quality preservation, high heat transfer, and minimal fouling.

Concentrates Viscous Liquids and Effluent

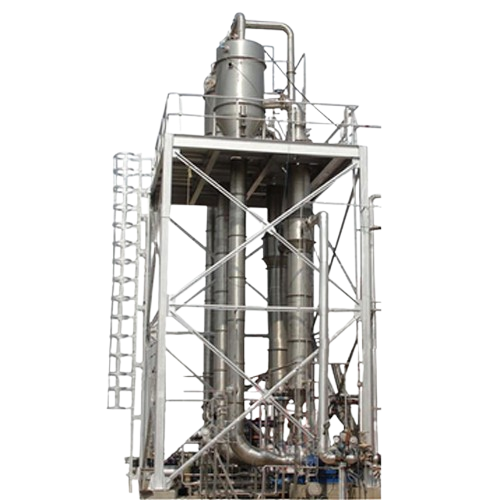

The ViscoVap from Alfa Laval is a forced circulation tubular evaporator engineered to concentrate highly viscous, heat-sensitive liquids. It operates under low-temperature vacuum conditions to preserve product quality and minimize fouling through high flow rates and self-cleaning shell-and-tube heat exchangers. Suitable for applications such as fruit and vegetable purées, effluent concentration, and bio-methanated spent wash, ViscoVap supports continuous operations in industries ranging from food processing to wastewater treatment. The modular design allows for easy scalability, and its high heat transfer efficiency ensures reduced energy consumption. Constructed from durable materials resistant to corrosion, it integrates seamlessly into existing production lines, offering reliable performance with minimal maintenance needs.

Benefits

  • Enhances product quality by operating under low-temperature vacuum conditions.
  • Minimizes cleaning frequency due to self-cleaning heat exchangers, increasing uptime.
  • Reduces operational costs with high heat transfer efficiency and energy savings.
  • Supports zero liquid discharge initiatives in environmental applications.
  • Versatile design adapts to varying capacities and product types.

General


Applications
Distillery wastewater,Effluent concentration,Foodstuffs,Bio-methanated spent wash,Vegetable purées,Fruit purées
End products
Bio-methane production,Vegetable sauces,Concentrated juices,Zero liquid discharge systems,Alcohol distillation,Fruit jams
Steps before
Grinding,Purification,Degasification
Steps after
Packing,Storage,Sterilization
Input ingredients
highly viscous liquids,heat-sensitive liquids,liquids containing fibres,liquids with solid contents,fruit purées,vegetable purées,bio-methanated spent wash
Output ingredients
concentrated high-viscosity products,concentrated heat-sensitive products,concentrated fruit purée,concentrated vegetable purée,final effluent
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Heat Transfer Efficiency
High
Flow Rate
High velocity
Fouling Resistance
Minimal due to self-cleaning effect
Product Type Processed
Highly viscous,heat-sensitive liquids
Operation Type
Single-stage or multiple-effect forced circulation
Concentration Application
Food purées,effluent concentration
Configuration
Modular,adaptable capacity
Automation
Self-cleaning
Vacuum Condition
Low temperature vacuum conditions
Shear Stress
High due to recirculating loops
Vapour Separation
Flash effect in separation vessel

Operating Characteristics


Working Mechanism
Forced circulation evaporator
Flow Type
High velocity through shell-and-tube heat exchanger
Self-cleaning Effect
High shear stress and turbulence
Fouling Resistance
Minimal fouling due to high shear stress
Modular Design
Versatile and adaptable capacity
Batch vs. Continuous Operation
Continuous
Automation Level
High automation with reliable operation
Cooling Method
Vapor separation under vacuum conditions

Material Compatibility


Abrasion resistance
High flow rates,high shear stress
Cleanability
Self-cleaning effect
Corrosive resistance (e.g. acids)
Material constructed for low-temperature vacuum conditions
Density/particle size
High solids,fibres

Physical Characteristics


Compact footprint
Yes
Control panel type
PLC
Discharge method
Gravity flow
Modular design
Yes
Tubular evaporator configuration
Single-stage or multiple-effect

Custom Options


Modular design
Versatile,adaptable capacity
Integration possibilities
Connect to AromaVap plate evaporator
Control panel type
PLC-controlled,manual adjustments
Loop configuration
Single-stage or multiple-effect
