Din standard glass-lined reactors

Streamline your chemical reactions with these DIN standard glass-lined reactors, designed for easy integration and high corrosion resistance, ensuring minimal downtime and maximum efficiency in your processing operations.

Facilitates Corrosion-Resistant Chemical Reactions and Mixing

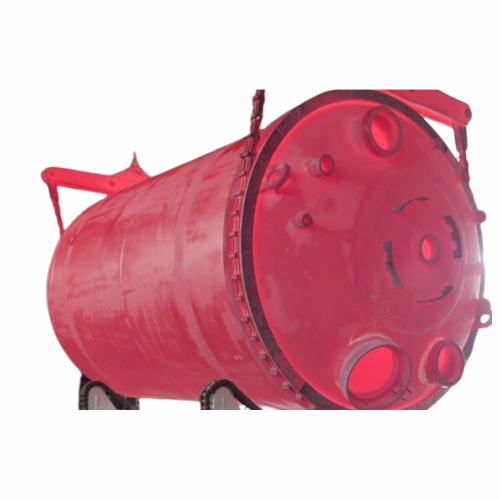

The DIN Glass-Lined Reactors from GMM Pfaudler are engineered for superior corrosion-resistant processing in chemical, pharmaceutical, food, and energy sectors. These reactors follow the DIN 28136 standard, ensuring parts and components interchangeability among manufacturers, which minimizes downtime and dependency on single suppliers. Featuring standardized dimensions and interchangeable components like agitator support flanges, these reactors offer seamless integration with existing systems. They are versatile in applications such as reactions, absorption, distillation, and purification.

The DIN-AE, DIN-BE, and DIN-CE reactor types cater to different capacity needs, from 63 to 80,000 liters. DIN-BE reactors, the most widely used, provide a one-piece design with high pressure resistance and reduced leakage. Equipped with efficient mixing systems, they allow configurations up to seven stages for optimal process adaptation. Maintenance is streamlined with agitator replacements via the manway without extensive disassembly. Compliant with DIN EN ISO 28721-1, these reactors assure stringent enamel quality, meeting or exceeding industry standards. For easy maintenance, these reactors are customizable and supported by engineering expertise, ensuring tailored solutions for various processing demands.

Benefits

  • Ensures minimal downtime with interchangeable components across manufacturers.
  • Reduces leakage risks with high-pressure resistance and streamlined gasket use.
  • Enhances adaptability with versatile mixing technologies for precise process control.
  • Supports efficient maintenance by allowing agitator replacement without extensive disassembly.
  • Complies with strict enamel quality standards for reliable, long-term corrosion resistance.

General


Applications
Chemical processing,Glass-lined equipment applications,Food processing,Energy sector,Pharmaceutical manufacturing,Corrosion-resistant applications
End products
Steps before
Engineering,Design,Pilot Testing,Scale-Up,Mixing,Solid-Liquid Extraction
Steps after
Evaporation,Distillation,Filtration,Absorption
Input ingredients
Output ingredients
Market info
GMM Pfaudler is known for manufacturing glass-lined equipment, reactors, and engineered-to-order (ETO) solutions for the chemical, pharmaceutical, and allied industries, recognized for their innovation, quality, and global presence.

Technical Specifications


Design Pressure
Fixed
Design Temperature
Fixed
Capacity
63 to 80,000 litres
H/D Ratio
Standardized
Nozzle Configuration
Standardized
Agitator Configuration
Interchangeable
Sealing System
Modern INTERSEAL dry9000®
Enamel Quality
DIN EN ISO 28721-1
Main Opening Diameter (DIN-CE)
up to 1350 mm
Body Flange (DIN-AE)
Two-piece
Agitator Introduction Method (DIN-BE)
Through manway
Downtime for Maintenance (DIN-BE)
Very Low
Agitation Stages (DIN-BE)
Up to seven stages
Resistance to Pressure (DIN-BE)
Higher

Operating Characteristics


Working Mechanism
Batch / Continuous Operation
Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP / Manual
Changeover time
Reduced Downtime

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Tank Shape
Cylindrical
Tank Size
63 to 80,000 litres
Feed/Discharge Method
Top Dish Opening / Manway
Nozzle Configuration
Standardized Nozzles
Agitator Installation
Via Manway / Top Dish
Agitator Type
One-piece / Cry-Lock
Sealing System
INTERSEAL dry9000®
Material Construct
Glass-lined
Body Flange
Present in AE Type

Custom Options


Agitator type
One-piece / Multi-stage
Reactor type
DIN-AE / DIN-BE / DIN-CE
Interchangeable components
Nozzle necks and flanges
Sealing system
INTERSEAL dry9000® / Mechanical shaft sealing
Agitation system
Cryo-Lock technology
Drive systems
In-line drive
Opening diameter
DN500 / DN600 / Up to DN1350
