Evaporation system for dairy products

Optimize product quality with continuous evaporation, ensuring efficient moisture removal for a diverse range of dairy, juice, and plant-based products, all while minimizing energy consumption and floor space.

Evaporates and Concentrates Liquid Products

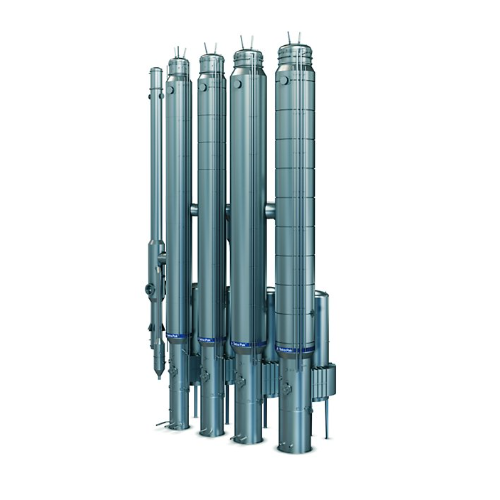

The Tetra Pak® Evaporator Falling Film TVR is engineered for continuous and fully automatic evaporation, specifically designed for high-capacity dairy and infant formula production. Utilizing a multi-effect evaporator design, it optimizes steam use and minimizes energy consumption. This equipment is ideal for producing a variety of end-products, such as whole milk powder, whey protein concentrate, and infant formula powders, as well as juice concentrates and plant-based milk alternatives.

With a capacity ranging from 100 to 50,000 kilograms per hour, it ensures efficient moisture removal while maintaining product integrity. The system is equipped with cyclone-type separators, offering an enhanced flow pattern that reduces the risk of bacterial growth and product build-up, ensuring long production runs without contamination issues. The compact design allows for minimal floor space requirements, making it suitable for integration into existing production lines.

Material options are tailored to meet specific product composition requirements, ensuring durability and resistance to wear. The equipment is designed to comply with rigorous industry standards for food safety and quality, and includes engineering support for customized configurations. Cleaning is streamlined with available sanitation-in-place systems, providing hot water treatment to ensure thorough and efficient maintenance.

Benefits

  • Ensures continuous production with reduced contamination risk, thanks to advanced cyclone separators.
  • Optimizes steam usage and lowers energy costs through a multi-effect evaporator design.
  • Accommodates diverse product types and capacities, enhancing operational flexibility.
  • Minimizes production footprint with a compact, space-saving design.
  • Facilitates easy integration into existing production lines and supports full automation.

General


Applications
Nectar,Infant formula,Still drinks,Cheese,Plant-based products,Milk powder,Whey,Food products,Juice,Baby food,Dairy products
End products
Skimmed milk powder,Uht milk,Baby formula powder,Whole milk powder,Almond milk powder,Cheddar cheese curd,Apple juice concentrate,Whey protein concentrate,Plant-based milk alternatives,Condensed milk,Soy milk powder,Orange juice concentrate,Infant cereal formulas,Follow-up milk for toddlers
Steps before
Preheating,Homogenization,Mixing,Emulsification
Steps after
Spray Drying,Packing,Cooling,Storage
Input ingredients
dairy products,infant formula,baby food,follow-up products
Output ingredients
evaporated dairy products,condensate,infant formula powder,spray dryer feed
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
100-50,000 kg/h
Evaporation rate
100-50,000 kg/h
Automation
Fully automatic
Production run time
20 hours without bacterial growth
Preheat Temperature
100°-125°C
Sanitation
Hot water treatment at 95°C

Operating Characteristics


Working mechanism
Falling film evaporation
Evaporation method
Multi-effect evaporator
Automation level
Fully automatic
Cycle time
20-hour production runs
Steam usage
Low due to multi-effect design
Cleaning method
Sanitation-in-place
CIP/SIP
Hot water treatment at 95°C
Batch vs. continuous operation
Continuous
Footprint requirements
Minimal floor space
Condensate quality
High due to cyclone-type separators

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Infant formula production suitability
Yes

Physical Characteristics


Machine footprint
Compact
Shape and size
Cyclone-type separators
System layout
Multi-effect evaporator design
Floor space requirement
Minimal
Control panel type
0
Discharge method
0

Custom Options


Control panel type
PLC-controlled
Integration possibilities
SCADA / HMI
Compact footprint
Smart design for small factory
Heater customization
Indirect and/or direct heaters
Additional system options
24/7 spray dryer feeding
