Corrosion-resistant shell and tube heat exchangers for pharmaceuticals
Ensure efficient thermal management in high-purity production environments with robust, corrosion-resistant heat exchangers designed for enhanced heat transfer in critical cooling, evaporation, and condensation processes.

Facilitates Corrosion-Resistant Heat Transfer and Condensation

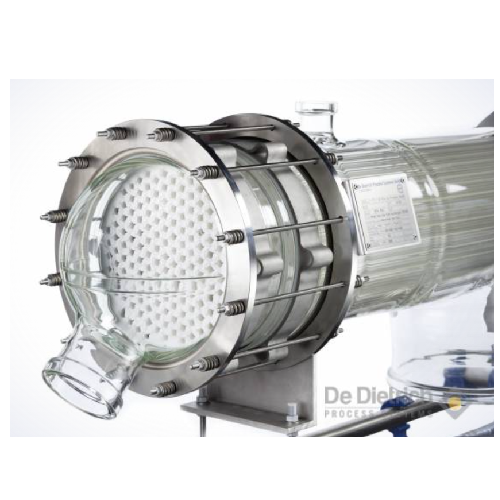

The QVF SUPRA Shell and Tube Heat Exchangers by De Dietrich Process Systems are designed for demanding applications in pharmaceutical and specialty chemical industries. These exchangers excel in managing corrosion-resistant heat transfer through materials like borosilicate glass 3.3 and SiC. They are engineered for processes such as condensation, cooling, and evaporation, making them ideal for producing APIs, specialty polymers, and natural extracts. With nominal diameters ranging from DN80 to DN300 and heat exchange surfaces from 0.3m² to 27m², these systems accommodate varied capacities. Modular and custom-engineered designs ensure seamless integration into existing production lines. The exchangers are compliant with GMP and other international safety standards, utilizing FDA-certified PTFE components to prevent cross-contamination and ensure long-term durability. Maintenance is streamlined via a PTFE tube plate that simplifies servicing and component replacement.
Benefits
- Ensures product purity and safety with corrosion-resistant materials.
- Minimizes operational interruptions with modular design for quick maintenance.
- Supports diverse chemical processes with high-pressure capability up to 6 barg.
- Enhances energy efficiency through superior heat transfer coefficients.
- Complies with international safety and quality standards, ensuring broad industry acceptance.
- Applications
- Green chemistry,Specialty chemicals,Fine chemicals,Agricultural chemicals,Organic chemicals,Plant-based ingredients,Bio-pharmaceuticals,Precious metals,Pigments,Inorganic chemicals,Pharmaceuticals
- End products
- Biologics,Specialty polymer coatings,Active pharmaceutical ingredients,Herbicide formulations,Hormonal drugs,High-purity sulfuric acid,Synthetic pigments,Organophosphate insecticides,Silver nanoparticle solutions,Natural plant extracts
- Steps before
- Extraction,Distillation,Filtration,Liquid/Liquid Separation,Solid/Liquid Separation
- Steps after
- Condensation,Evaporation,Cooling,Heat Recovery,Purification
- Input ingredients
- highly corrosive substances,sulfuric acid,hydrochloric acid,liquid/liquid heat transfer media,corrosive medium,distillates containing chloric or sulfuric acid
- Output ingredients
- condensed liquids,temperatures between -20 and 150°C,corrosion-resistant products,liquid/liquid extraction output,condensed chloric or sulfuric acid distillates,concentrated hydrochloric acid
- Market info
- De Dietrich is renowned for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in chemical process systems, glass-lined reactors, and filtration technologies, with a strong reputation for innovation, reliability, and safety in the chemical and pharmaceutical industries.
- Corrosion Resistance
- Both sides up to 3 barg
- Pressure Resistance
- Up to +6 barg (medium side)
- +2 barg (shell)
- Material
- Borosilicate Glass 3.3 / SiC
- Temperature Range
- -20 to 150°C
- Nominal Diameter
- DN80 to DN300
- Heat Exchange Surface
- 0.3m² to 27m²
- Tube Material
- Borosilicate Glass 3.3 or SiC
- Header Material
- Borosilicate Glass 3.3,Glass-lined Steel,or Stainless Steel
- Tubes Pressure Resistance
- Up to 6 barg
- Shell Material
- Borosilicate Glass 3.3,Glass-lined Steel,or Stainless Steel
- Intermediate Pressure Chamber
- Optional to prevent cross-contamination
- Compliance
- FDA material certificates for product contact components
- Corrosion Resistance
- Both sides up to 3 barg,medium side up to 6 barg
- Pressure Rating
- -1 to +6 barg
- Temperature Range
- -20 to 150°C
- Heat Transfer Mechanism
- Shell and Tube
- Modular Design
- Catering for varied processes
- Installation Type
- Horizontal or Vertical
- Intermediate Chamber for Cross-contamination Prevention
- Optional,drainable
- Material Compatibility
- Borosilicate glass 3.3 or SiC
- FDA Material Certification
- Components in contact with product
- Corrosion resistance
- Both sides up to 3 barg
- Medium side up to 6 barg
- Temperature resistance
- -20 to 150°C
- Material construction
- Borosilicate glass 3.3,SiC,glass-lined steel,stainless steel
- FDA compatibility
- FDA material certificates for components in contact with product
- Application Type
- Condensation / Heat Transfer / Cooling
- Nominal Diameter
- DN80 to DN300
- Heat Exchange Surface
- 0.3m² to 27m²
- Tube Material
- Borosilicate Glass 3.3 / SiC
- Shell Material
- Borosilicate Glass 3.3 / Glass-lined Steel / Stainless Steel
- Header Material
- Borosilicate Glass 3.3 / Glass-lined Steel / Stainless Steel
- Pressure Capability
- Up to +6 barg
- Temperature Range
- -20 to 150°C
- Installation Type
- Horizontal / Vertical
- Nominal Diameter
- DN80 to DN300
- Exchange Surface Area
- 0.3m² to 27m²
- Tubes Material
- Borosilicate Glass 3.3 / SiC
- Shell Material
- Borosilicate Glass 3.3 / Glass-lined Steel / Stainless Steel
- Headers Material
- Borosilicate Glass 3.3 / Glass-lined Steel / Stainless Steel
- Pressure Rating
- Up to +6 barg
- Temperature Range
- -20 to 150°C
- Design Options
- Horizontal / Vertical Installation
- FDA Material Certification
- Available for components in contact with the product
