Compact rotary evaporator for laboratory distillation

Achieve efficient solvent removal and sample concentration with this compact rotary evaporator, designed to optimize lab space while ensuring precise control over distillation processes. Ideal for professionals seeking to enhance laboratory workflows and energy efficiency.

Evaporates and Concentrates Solutions Efficiently

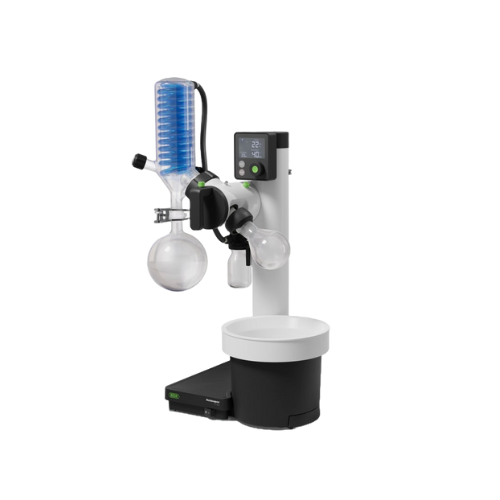

The Rotavapor® R-80 from BUCHI is a compact rotary evaporator designed to enhance laboratory efficiency in chemical, pharmaceutical, and food industry settings. Its standout features include a cableless heating bath for easy handling and horizontal adjustment, minimizing energy consumption and heat wastage. It adeptly handles applications such as evaporation, distillation, and concentration, producing end-products like pharmaceuticals, nutraceuticals, and flavor extracts. The R-80 is capable of processing up to 1-liter evaporation flasks with a maximum temperature of 95 °C. Its intuitive interface and compact design offer easy integration into bench-top setups while maintaining precise control over operations. By reducing energy usage and employing user-friendly controls, it supports environmentally conscious practices and optimal lab performance.

Benefits

  • Maximizes lab space efficiency with its compact design.
  • Lowers operational costs by reducing energy consumption.
  • Enhances safety with integrated overheat protection.
  • Simplifies maintenance with a cableless, adjustable heating bath.
  • Facilitates precise control, optimizing process accuracy with an intuitive interface.

General


Applications
Food,Feed,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Beverage,Environmental samples,Biopharmaceuticals,Academic applications,Pharmaceuticals
End products
Tablet formulations,Liquid pharmaceuticals,Flavor extracts,Animal feed supplements,Juice concentrates,Specialty fine chemicals,Water quality test samples,Teaching and demonstration samples in chemistry,Proteins for biopharmaceuticals,Dietary supplements
Steps before
Concentration,Reflux reaction,Re-crystallization,Soxhlet extraction
Steps after
Distillation,Drying,Packing
Input ingredients
solvents,chemicals,samples,compounds
Output ingredients
distilled solvents,concentrated samples,dried compounds,purified chemicals
Market info
Buchi is renowned for its expertise in laboratory and industrial solutions, particularly in producing high-quality equipment for chemical analysis and lab processes, known for precision and reliability in the pharmaceutical, chemical, and food industries.

Technical Specifications


Evaporation flask size
Up to 1 L
Footprint (W x D)
345 x 315 mm
Temperature range
Up to 95 °C
Rotation speed range
10 – 330 rpm
Heating bath temperature
95 °C
Lift
Manual
Interface
I-180 / I-80
Vacuum pump
Yes
Recirculating chiller
No

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Manual
Energy efficiency
Reduced energy consumption
User Interface Flexibility
Rotatable up to 90°
Cable Management
Cable and tube holders

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
345 x 315 mm
Evaporating Flask Size
Up to 1000 mL
Temperature Range
Up to 95 °C
Compact Design
Smallest Rotavapor on the market
User Interface Rotation
Up to 90°

Custom Options


Control panel type
Rotatable user interface up to 90°
Heating bath type
Compact and cableless
User interface location
Central user interface with easy navigation control
