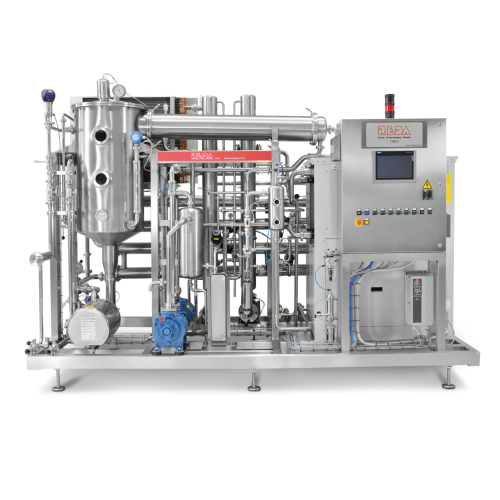

Wine dealcoholization system for low-alcohol wines

Struggling to meet market demands for low-alcohol wines? Achieve precise dealcoholization while preserving the wine’s aromatic profile using advanced vacuum-controlled evaporation technology.

Performs Low-Temperature Wine Dealcoholization

The REDA DVR Wine Dealcoholization Unit by Reda Spa is designed for wineries and beverage manufacturers requiring precise control over alcohol content while preserving wine’s aroma and typicity. It utilizes fractional distillation at low temperatures (+15°/18°C) under vacuum conditions, allowing for the partial or total removal of alcohol from wine. This process is ideal for producing low-alcohol and dealcoholized wines, ensuring complete recovery of aromatic fractions without the need for pre-treatment or pre-filtration. Capable of processing either the full volume or a partial batch (10-20%), the system integrates seamlessly into continuous and automated production lines. Its design adheres to European regulations (Directive no. CE 606/2009) and the OIV Code, confirming compliance for international deployment. With customizable configurations available, the unit supports low energy consumption and efficient aroma recovery, making it a sustainable and valuable addition to beverage processing operations.

Benefits

  • Maintains wine flavor integrity by recovering 100% of aromatic compounds.
  • Ensures regulatory compliance with European and OIV standards for partial dealcoholization.
  • Supports flexible production needs with capability to process full or partial wine batches.
  • Reduces energy usage through low-temperature, vacuum-controlled operation.
  • Integrates easily into automated production lines, boosting overall efficiency.

General


Applications
Plant-based drinks,Wine,Milk,Fermented products,Whey,Juices,Beer,Cheese processing
End products
Dealcoholized wine,Aroma-recovered wine,Low-alcohol wine
Steps before
Wine Concentration,Wine Clarification,Grape Must Concentration
Steps after
Aromatic Fraction Recovery,Sterilization
Input ingredients
wine,grape must
Output ingredients
dealcoholized wine,aromatic fractions
Market info

Technical Specifications


Dealcoholization method
Fractional distillation at low temperature
Operating temperature
+15°/18° C
Vacuum control
Under vacuum controlled evaporation
Aromatic recovery
Total recovery of aromatic fractions
Pre-treatment requirement
No pre-treatment or pre-filtration needed
Process flexibility
Partial or total mass processing
Concentration capability
Can operate as concentrator

Operating Characteristics


Working Mechanism
Fractional distillation under vacuum
Temperature Range
+15°/18° C
Aroma Recovery
Total recovery of aromatic fractions
Flexibility of Operation
Partial or total dealcoholization
Pre-treatment Requirement
No need for pre-treatment or pre-filtration
Automation Level
PLC Controlled


OIV Compliance
Yes
European Directive no. CE 606/2009
Yes

Physical Characteristics


Discharge method
Controlled evaporation

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
Compatible with existing vinification systems
Modular design
Yes,allows partial or total dealcoholization
Evaporation process
Under vacuum
Temperature range
+15°/18° C
