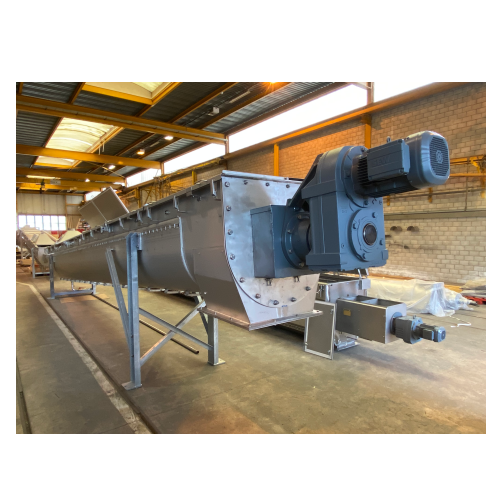

Screw heat exchanger for efficient thermal processing

Optimize your heating and cooling processes with this robust double jacket screw conveyor, designed for handling diverse materials and enhancing product quality through seamless thermal transfer and effective mixing.

Transfers Heat and Mixes Materials Efficiently

The Double Jacket Screw Heat Exchanger by ETIA Group is a versatile solution for executing precise thermal management across diverse processing needs. Its construction allows chilled water, steam, or other thermal fluids to circulate within the screw and its double jacket, ensuring effective heating and cooling of bulk products like biomass, sludge, and granulates. This system is equipped with paddles on the screw to enhance mixing and conveyance, accommodating materials ranging from powders to pastes.

Primarily used in industries including food processing and tire recycling, it efficiently produces biochar, sterilized commodities, and recycled tire-derived fuel, among other end-products. Designed for continuous operation, this screw heat exchanger can be seamlessly integrated into existing production lines. Its adaptability in diameter and length enables tailored scalability to match specific process requirements, further optimized by minimal maintenance needs and ease of cleaning, leading to low operating costs and extended service life.

Benefits

  • Enhances process efficiency with precise thermal management for diverse materials.
  • Reduces operational costs due to low maintenance requirements and extended service life.
  • Improves product quality by ensuring consistent mixing and heat transfer.
  • Offers flexible scalability to suit varying production capacities and demands.
  • Integrates seamlessly into existing production lines for streamlined operations.

General


Applications
Minerals,Heavy industries,Muddy products,End of life tires,Sludge,Granulates,Pastes,Food products,Residues,Biomass,Bulk products,Powders
End products
Processed powders,Activated carbon,Sterilized food commodities,Granulated feedstock,Dried sludge pellets,Recycled tire-derived fuel,Industrial pastes,Mineral concentrates,Biochar,Homogenized compounds
Steps before
Grinding,Purification
Steps after
Packing,Quality Inspection
Input ingredients
bulks,powders,granulates,pasty products,muddy products
Output ingredients
cooled products,heated products,dried products,evaporated products
Market info
ETIA is known for its expertise in designing and manufacturing advanced thermal processing solutions, including pyrolysis and gasification equipment, for waste management, biomass conversion, and sustainability applications, with a strong reputation for innovation and technology in environmental engineering.

Technical Specifications


Conveyor size
Up to Ø1m Length 12m
Product types handled
Bulks,powders,granulates,pasty or muddy products
Heat transfer mediums
Chilled water,steam,or other thermal fluid
Design flexibility
Tubular,Auger,Double Screw
Atmosphere control
Wet extraction,dried air injection,steam injection
Homogeneity treatment
Paddles fixed to the screw
Customization
Scalable and tailored construction,diameter,length

Operating Characteristics


Working mechanism
Screw conveyor with heat exchange capabilities
Integrated steps
Cooling,Heating,Drying,Evaporation
Batch vs. continuous operation
Continuous
Atmosphere control
Wet extraction,dried air injection,steam injection
Automation level
Simple,adaptable to user needs

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Heat Sensitivity
Temperature Control Available
Bulk Density Handling
Powders to Granulates
Product Homogeneity
Mixing via Paddles

Physical Characteristics


Machine footprint
Large size up to Ø1m Length 12m
Feed/discharge method
Screw conveyor
Construction type
Tubular,Auger,Double Screw
Product type compatibility
Bulks,powders,granulates,pasty or muddy products
Cooling/heating medium
Chilled water,steam,thermal fluid
Control of atmosphere conditions
Wet extraction,dried air injection,steam injection
Mixing method
Paddles fixed to the screw

Custom Options


Design type
Tubular / Auger / Double Screw
Size range
Small size to large size (Up to Ø1m Length 12m)
Cooling and heating medium
Chilled water / Steam / Other thermal fluids
Paddles type
Fixed to the screw for homogeneous treatment
Atmosphere control
Wet extraction / Dried air injection / Steam injection
Construction material
Customizable for material compatibility
