Heat pump vacuum concentrator for must concentration

Achieve delicate must concentration with minimal energy consumption, preserving your wine’s aromas and enhancing tannin content while operating under a low-temperature vacuum environment.

Concentrates and Preserves Grape Must Aromas

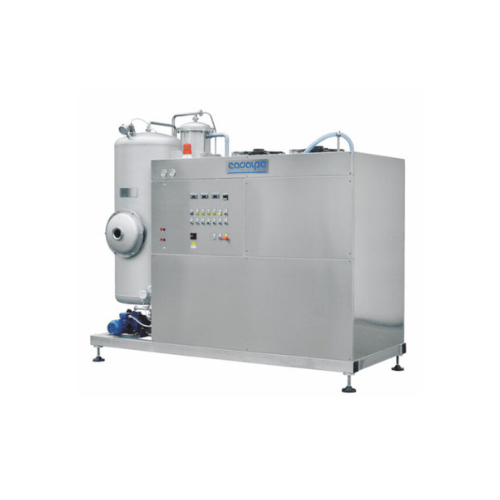

The C38 Heat Pump Vacuum Concentrator from Cadalpe offers an innovative solution for small wine producers looking to enhance product quality. Operating under a hard vacuum and utilizing a descending veil evaporator, this equipment concentrates grape must at low evaporation temperatures between 20° and 24°C, uniquely preserving aroma and enhancing tannin content in red wines. Its clean and clog-resistant design, exclusive to Cadalpe, ensures seamless operation with unprocessed must, preventing foam formation. The unit allows flexible heating temperatures for optimizing either process quality or yield. Fully automatic, it minimizes operator involvement to periodic washing, while its closed-loop cycle achieves up to 65° Brix concentration, ideal for sugar adjustments. Energy efficiency is achieved through its compressor motors, with minimal water use for occasional circuit cleaning. The C38’s robust structure aligns with strict industry standards, providing durability and reliability in processing and cleaning applications within the wine and broader beverage industry.

Benefits

  • Enhances wine quality by preserving aromas and increasing tannin content.
  • Lowers operational costs with fully automatic, minimal supervision required.
  • Energy-efficient operation minimizes power consumption through optimized vacuum conditions.
  • Ensures consistent product quality with precise temperature control and clog-resistant design.
  • Supports flexible production goals with customizable concentration levels up to 65° Brix.

General


Applications
Beverage industry,Must concentration,Wine
End products
Concentrated grape must,High-tannin red wines,Sugar-adjusted wine,Aromatic preservation wines
Steps before
Purification,Must preparation,Juice extraction
Steps after
Sugar adjustment,Aroma preservation,Bottling
Input ingredients
clean unprocessed must,red grape must
Output ingredients
wine with enhanced tannin content,richer color wine,concentrate of 60-65° Brix
Market info
Cadalpe is renowned for designing and manufacturing custom-engineered equipment for the wine, beverage, and food industries, specializing in advanced filtration, distillation, and heat exchange technologies, earning a reputation for innovation and quality.

Technical Specifications


Evaporation Temperature
20° to 24° C
Process Type
Heat Pump Vacuum Concentration
Concentration Range
60–65° Brix
Operation
Fully Automatic
Cycle Type
Closed Loop Cycle
Energy Consumption
Limited to Compressor Motors
Cleaning Method
Requires Periodic Washing
Operating Conditions
Hard Vacuum

Operating Characteristics


Working Mechanism
Heat pump concentrator under hard vacuum
Batch vs. continuous operation
Batch
Automation level
Fully automatic
Evaporation Temperature
20°–24°C
Process Delicacy
Descending veil evaporator
Cleaning Method
Periodic washing

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Designed for small producers
Discharge method
Automatic
Control panel type
Fully automatic
Compact footprint
Minimal space requirement

Custom Options


Control Panel Type
Fully Automated
Integration Possibilities
Compatible with Closed Loop Systems
Heating Temperature Adjustment
Variable
Operation Mode
Automatic Turn Off
