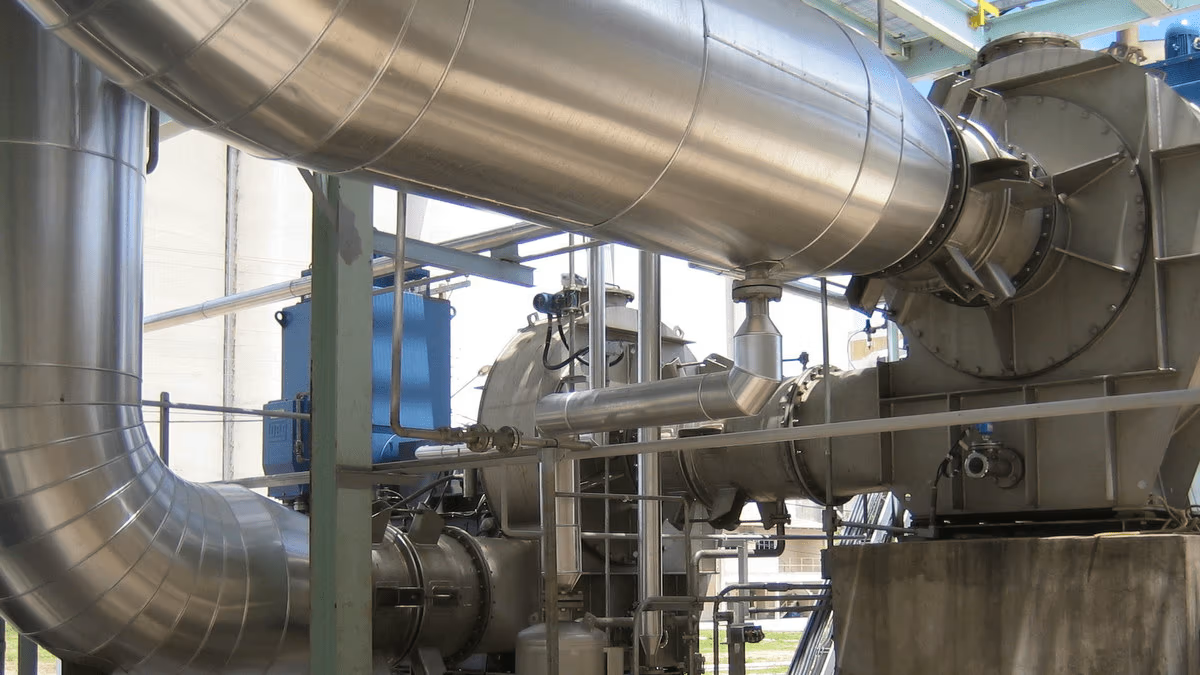

Mvr and Tvr heated distillation system

Achieve superior energy efficiency and reduced steam consumption in your distillation and evaporation processes with cutting-edge vapor recompression technology, ideal for optimizing production lines across diverse industries.

Reduces Steam Consumption and Purifies Products

The MVR/TVR heated distillation plants from GEA enhance energy efficiency in your distillation processes by integrating thermal and mechanical vapor recompression technologies. These systems are designed to minimize steam consumption while ensuring high-purity outputs, making them ideal for applications across pharmaceuticals, food, beverage, and chemical industries.

The cornerstone of this equipment is its ability to utilize compressed vapor’s enthalpy for heating, resulting in reduced energy costs. The unit simplifies operation with no moving parts in its TVR setup, ensuring low maintenance. MVR options, while requiring a higher initial investment, offer significant savings in energy expenditure, particularly for newly designed plants.

Applications extend to ethanol purification, high-purity chemical production, and biodiesel processing. These systems are PLC-controlled, supporting continuous and automated operations tailored for liquid and gas products. Materials are available in various corrosion-resistant options like stainless steel, ensuring compatibility with diverse process requirements.

Compliance with industry standards is ensured, with available customization for specific project needs, supported by GEA’s engineering expertise and robust investment in customer support.

Benefits

  • Minimizes steam consumption, resulting in significant reductions in energy costs.
  • Ensures high-purity outputs essential for pharmaceuticals and chemical processes.
  • Reduces maintenance demands with no moving parts in TVR systems.
  • Provides energy-efficient operation by utilizing vapor enthalpy for heating.
  • Enhances sustainability through lower environmental impact of operations.

General


Applications
Food,Personal care,Gas,Energy,Beverage,Refrigeration,Oil,Heating,Chemical,Environment,Petrochemicals,Home,Biofuel,Dairy,Pharmaceutical
End products
Petrochemical derivatives,Purified water,Ethanol,Natural gas liquids,Pharmaceutical intermediates,Renewable diesel,Active pharmaceutical ingredients (apis),Refrigerants,High-purity chemicals,Biogas,Evaporated milk,Milk powder,Biodiesel,Personal care formulations,Essential oils
Steps before
Fermentation,Purification,Dehydration
Steps after
Reboiling,Product Integration,Packing
Input ingredients
vapor streams,motive steam,live steam
Output ingredients
condensed vapor,heat,evaporated product
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Steam Consumption
Minimized
Enthalpy Utilization
Condensation Enthalpy Used for Heating
Temperature Level
Lower Temperature Processes
Motive Steam Requirement
Required for Operation
Automation
Simple Operation
Maintenance
No Maintenance Required
Cost-Benefit Ratio
Excellent for New Designs
Energy Savings
Higher with MVR
Evaporation Type
Gentle Evaporation Due to Low Temperature Differences

Operating Characteristics


Working mechanism
MVR (Mechanical Vapor Recompression) / TVR (Thermal Vapor Recompression)
Energy efficiency
High energy savings with MVR / Reduced steam consumption
Automation level
Manual / PLC
Maintenance requirements
No turning parts,minimal maintenance with TVR
Temperature control
Low temperature differences
Batch vs. continuous operation
Continuous
Integration capability
Process Integration / Skid Mounted Distillation Units
Cleaning method
CIP / Easy implementation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Discharge method
Continuous / Batch
Compact footprint
Yes

Custom Options


Control panel type
Touchscreen / HMI
Integration possibilities
With existing systems
Footprint
Compact design / Skid mounted
Heat source technology
MVR / TVR
Evaporation process adjustments
Pressure/temperature settings
