Benchtop spray dryer for drug discovery
Optimize your formulation development with a compact spray dryer that streamlines the drying of liquid solutions into fine powders, ideal for R&D laboratories focused on precision and speed.

Converts Liquids into Consistent Powders

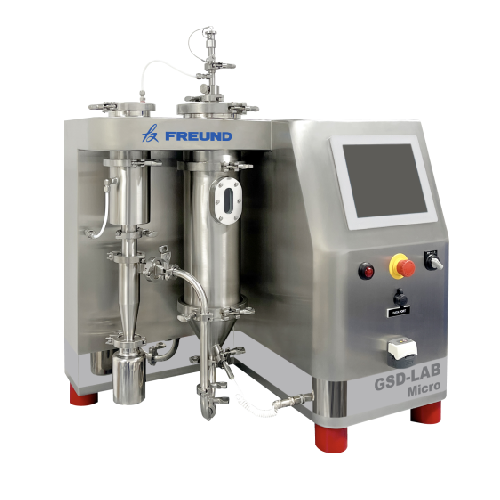

The GSD-LAB Micro GENESIS™ from Freund is a benchtop spray dryer designed specifically for pharmaceutical and chemical R&D laboratories. This equipment features a stainless-steel drying chamber, and utilizes a 2-fluid atomizing nozzle for efficient drying and granulation. It supports both aqueous and solvent processes, making it versatile for developing monoclonal antibodies and peptide hormones. With an evaporation capacity of 0.5 kg/hr, it operates in single-pass mode for rapid formulation. The system is portable and suitable for use under a hood or inside an isolator, integrating seamlessly into existing lab setups. Energy-efficient, it offers options like a HEPA filter and Smart-Safe™ containment for enhanced safety and compliance with CE, ATEX, UL, and NFPA standards.
Benefits
- Facilitates rapid formulation development, reducing product-to-market time.
- Enhances safety with Smart-Safe™ containment and optional HEPA filtration.
- Versatile use for various solvents, expanding R&D possibilities.
- Compact and portable design simplifies lab space management.
- Ensures compliance with industry standards for peace of mind.
- Applications
- Supplements,Vitamins,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals,Enzymes
- End products
- Active pharmaceutical ingredients (apis),Monoclonal antibodies,Enzyme catalysts,Peptide hormones,Vitamin d3 powders,Encapsulated probiotics
- Steps before
- Drug Discovery,Substance Feasibility,Formulation Development
- Steps after
- Collection,Process Control,Data Analysis
- Input ingredients
- aqueous solvents,organic solvents,drying gas
- Output ingredients
- spray-dried powders
- Market info
- Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.
- Evaporation Capacity (Based on Water)
- 0.5 kg/hr
- Chamber Diameter
- 150 mm
- Nozzle Type
- 2-Fluid Atomizing
- Drying Gas Flow Rate
- 12 kg/hr
- Compressed Air Supply
- 51 m³/hr @ 6 bar
- Nitrogen Supply
- 21 m³/hr @ 3 bar
- Electrical Supply
- 230 VAC,50 – 60 Hz,1 Phase
- Weight
- 97.5 kg
- Solvent Rating
- Class I,Division 2 / ATEX Zone 2
- Working Mechanism
- Benchtop Spray Dryer
- Integrated Steps
- Drying,Atomizing,Collection
- Automation Level
- Touchscreen Control System
- Batch vs. Continuous Operation
- Single Pass Operation
- Cleaning Method
- Manual / Optional CIP
- Energy Efficiency
- Not specified
- Consider consulting
- Cleanability
- Stainless steel chamber (standard)
- Corrosive resistance (e.g. acids)
- Optional glass chamber
- Aqueous and Solvent Ready
- Yes
- Powder Formulation
- Spray-dried powder
- Solvent Compatibility
- Aqueous and Organic solvents
- Spray Drying Purpose
- Drug discovery,formulation development
- Containment Type
- Hood/Isolator Use
- Portability
- Benchtop,portable
- Machine Footprint
- Portable benchtop system
- Chamber Diameter
- 150 mm
- Material
- Stainless Steel (Standard),Glass (Optional)
- Weight
- 97.5 kg
- Control Panel Type
- Color Touchscreen Control
- Discharge Method
- Cyclone with 0.5 L Powder Collection Container
- Control panel type
- Color Touchscreen Control System
- HMI Integration
- USB Data Collection Port
- System Configuration
- Portable All-in-One Benchtop System
- Containment Option
- Smart-Safe™ Containment Optional
- Chamber Material
- Stainless Steel (Standard),Glass (Optional)
