Spray drying evaporation for wastewater treatment

Achieve efficient zero liquid discharge with this spray drying evaporation system, which transforms wastewater and flue gas effluents into collectable dry solids, ensuring cleaner emissions and environmental compliance.

Evaporates and Dries Industrial Waste Streams

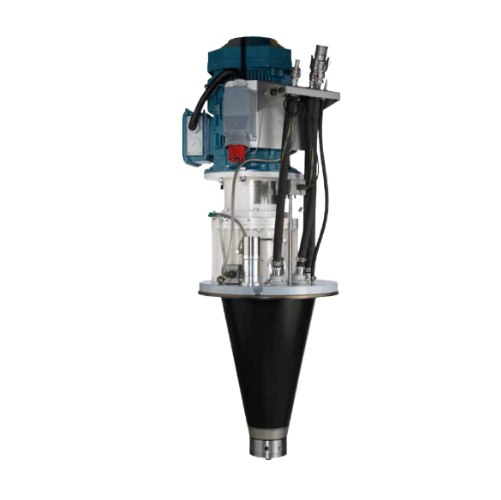

The Spray Drying Evaporation (SDE) System by GEA revolutionizes wastewater treatment in power and waste-to-energy sectors by converting liquid effluents into dry, manageable solids. Leveraging GEA’s well-proven spray drying and proprietary rotary atomization technology, the SDE system provides a seamless integration into existing flue-gas desulfurization (FGD) processes. It operates via the evaporation of water from contaminated streams using hot flue gases, which results in a fine dry powder captured by a downstream filter, achieving zero liquid discharge effectively.

Designed for high efficiency and continuous operation, the system can be customized to handle varying hot gas temperatures and effluent capacities, employing a range of atomizer sizes based on specific requirements. Automation is enhanced with precise control over gas distribution and droplet size, ensuring complete conversion with minimized energy consumption. Constructed from carbon steel with optional material configurations, it offers substantial resistance to corrosion and operational longevity.

Ideal for industries focusing on environmental compliance, the Spray Drying Evaporation System manufactures end products like dry salts, metal oxides, and sulfate solids, with the capability to purify gases free of heavy metals. Incorporating optional features like specific dust collectors or the main filter enhances flexibility and performance in diverse industrial applications.

Benefits

  • Achieves zero liquid discharge, enhancing environmental compliance.
  • Transforms waste into valuable byproducts, increasing operational revenue.
  • Operates continuously with high efficiency, minimizing process interruptions.
  • Reduces reliance on complex water treatments, cutting operational costs.
  • Adapts to various effluent types, maximizing flexibility in diverse industries.

General


Applications
Heavy metal removal,Flue-gas desulfurization,Wastewater treatment,Environmental pollution control
End products
Sulfate solids,Zero liquid discharge solids,Dry salts,Heavy metal-free gases,Metal oxides
Steps before
Wastewater collection,Effluent preparation
Steps after
Dust collection,Flue gas treatment,Powder collection
Input ingredients
wastewater streams,wet type FGD effluents,scrubber liquid,hot flue gas,discharged scrubber liquid,flu gas
Output ingredients
dry powder,dried salts,dried solids,filtered flue gases
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Evaporation Type
Spray Drying Evaporation
Heat Source
Hot flue gas / Pre-heated combustion air
Droplet Size Control
Outstanding distribution
Construction Material
Carbon steel
Atomizer Type
Rotary atomizer
Effluent Capacity
Full range of atomizer sizes
Dust Collection
Optional filter or main dust collector
Adaptability
Adaptable for large variations of hot gas temperatures and ash load
Zero Liquid Discharge
Achieves ZLD
Operation Simplicity
System simplicity

Operating Characteristics


Working mechanism
Spray drying evaporation
Integrated steps
Evaporation and collection in downstream filter
Heat source flexibility
Hot flue gas or pre-heated combustion air
Automation level
PLC-controlled
Batch vs. continuous operation
Continuous
Droplet size control
Precise distribution and control
System simplicity
Easy integration with existing systems

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Zero Liquid Discharge capability
Yes

Physical Characteristics


Compact footprint
Compact design
Control panel type
Integrated control panel
Discharge method
Downstream filter collection

Custom Options


Control panel type
Digital / Analog
Atomizer size
Varies for different effluent capacities
Heat source integration
Hot flue gas or pre-heated combustion air
Filter options
Particular filter or main dust collector
Material construction
Carbon steel
