Falling film evaporator for food processing

Optimize your liquid concentration process with a vacuum-operated system designed for efficient evaporation and reduced steam consumption, ensuring your production line achieves the desired purity and quality in fruit juices, dairy products, and more.

Concentrates Liquids Through Vacuum Evaporation

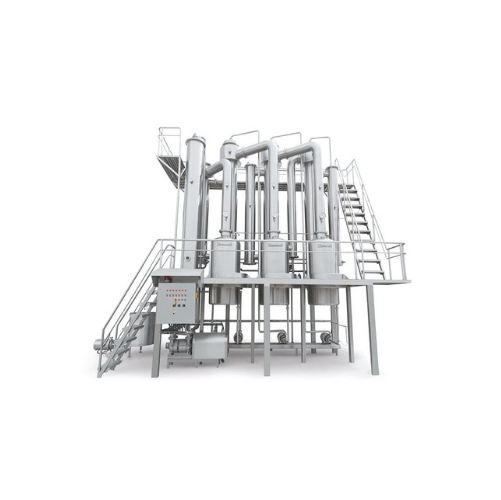

The Falling Film Evaporator from Uzermak is designed to meet the sophisticated needs of the food and beverage industry. This equipment operates under vacuum conditions, enabling precise liquid concentration by efficiently preheating and evaporating liquids. Utilizing internal coil-tube exchangers, it reduces steam consumption during processing, making it an energy-efficient choice. Applications range from producing grape concentrate and pectin extract to processing apple juice, yogurt, and whey protein concentrate. With AISI304 stainless steel construction, it ensures durability and resistance to corrosion, supporting rigorous operational environments. The continuous operation mode, combined with vacuum efficiency, integrates seamlessly into existing production lines for dairy producers and fruit juice manufacturers. Customizable configurations and engineering support ensure that the evaporator meets your specific process requirements, while CIP compatibility facilitates easy and thorough cleaning.

Benefits

  • Enhances energy efficiency by minimizing steam usage through effective preheating.
  • Operates under vacuum to preserve product quality and maintain flavor integrity.
  • Streamlines cleaning processes with CIP compatibility, reducing downtime.
  • Provides versatile application across multiple food and beverage products.
  • Built with durable AISI304 stainless steel for increased longevity and hygiene compliance.

General


Applications
Grape juice,Milk for yoghurt,Whey,Pectin,Fruit juice
End products
Apple juice,Grape concentrate,Pectin extract,Whey protein concentrate,Yogurt
Steps before
Purification,Preheating,Filtration
Steps after
Concentration,Packaging,Cooling
Input ingredients
grape juice,pectin,fruit juice,milk for yoghurt,whey
Output ingredients
concentrated grape juice,concentrated pectin,concentrated fruit juice,concentrated milk,concentrated whey
Market info

Technical Specifications


Material
AISI304 stainless steel
Cleaning method compatibility
Compatible with food and cleaning detergents
Operating conditions
Vacuum conditions
Preheating method
Internal coil-tube exchangers
Steam consumption
Low
Applications
Grape juice,pectin,fruit juice,milk for yoghurt,whey

Operating Characteristics


Working mechanism
Falling film
Batch vs. continuous operation
Continuous
CIP/SIP
CIP compliant
Vacuum operation
Yes
Cooling method
Preheating with coil-tube exchangers

Material Compatibility


Corrosive resistance (e.g. acids)
AISI304 quality stainless steel

Product type Characteristics


Heat sensitivity
Low
Applications
Grape juice,pectin,fruit juice,yoghurt milk,whey

Physical Characteristics


Material
AISI304 quality stainless steel
System Operating Conditions
Under vacuum
Preheating System
Internal coil-tube exchangers
Steam Consumption
Low

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
PLC/SCADA integration
Material type
AISI304 stainless steel
Plastic compatibility
Food and detergent safe
Operation type
Vacuum conditions
