High-efficiency brazed plate heat exchanger

Optimize your thermal processes with compact, high-efficiency heat exchangers, designed to tackle space constraints while ensuring maximum energy savings and reliable performance under demanding high-pressure and high-temperature conditions.

Enhances Heat Transfer and Thermal Efficiency

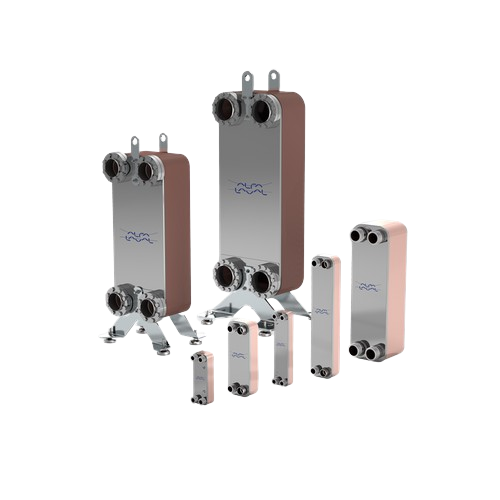

The Alfa Laval CB line of brazed plate heat exchangers is designed to maximize thermal efficiency in constrained environments. Utilizing an innovative copper-brazed, gasket-free construction, these exchangers offer robust performance under high pressure and temperature conditions. The asymmetric FlexFlow plate design optimizes heat transfer with a minimal refrigerant charge, catering to applications such as HVAC, refrigeration, and industrial cooling. With a compact footprint, these units seamlessly integrate into existing systems, reducing installation space. Models like the CB24 and CB210, optimized for specific refrigerants like propane (R290), ensure compliance with strict environmental regulations and sustainability goals. Available in pressure ratings from 32 to 90 bar, the units are AHRI-certified and recognized with multiple pressure vessel and marine approvals. With reduced energy consumption and improved performance, Alfa Laval’s heat exchangers are engineered for longevity and efficiency, supported by extensive customization and engineering expertise.

Benefits

  • Reduces installation space requirements with compact, high-efficiency design.
  • Lowers energy costs and carbon emissions through optimized thermal performance.
  • Maintains reliability under high pressure and temperature, minimizing maintenance needs.
  • Ensures compliance with environmental standards for sustainable operations.
  • Offers flexible integration with diverse applications, enhancing operational versatility.

General


Applications
Residential heating,Domestic hot water,Commercial refrigeration,Process heating,Refrigeration,Engine cooling,Ground source heat pumps,Process cooling,Hvac,Solar heating,Heat pumps,Oil cooling
End products
Air conditioning units,Car radiators,Commercial refrigerators,Chillers,Refrigeration systems,Geothermal heating systems,Freezers,Solar-heated swimming pools,Residential boilers,Heated water for showers
Steps before
Refrigerant Charging,System Design,Installation,Configuration
Steps after
Thermal Performance Evaluation,Energy Efficiency Assessment,Maintenance,System Monitoring
Input ingredients
refrigerant,liquids,oil,domestic water,solar heat,engine heat
Output ingredients
heated liquid,cooled liquid,high-efficiency heat transfer,domestic hot water,solar heating energy,engine cooling
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Heat Exchanger Type
Brazed Plate
Pressure Resistance
32–90 bar
Thermal Efficiency
High
Refrigerant Compatibility
All Types
Plate Material
Stainless Steel
Brazing Material
Copper
Flow Configuration
Countercurrent / Cocurrent
Size Range
Various Sizes
Pass Configurations
Single/Dual/Multi-pass
Defrost System
IceSafe® Design
Design Temperature
High Temperature

Operating Characteristics


Working mechanism
Brazed plate heat exchanger
Flow configuration
Countercurrent / Co-current
Pressure tolerance
32 to 90 bar
Temperature range
High-pressure and high-temperature applications
Integrated defrosting
IceSafe design
Automation level
Manual / PLC / SCADA
Energy efficiency
Increased thermal efficiency
Media separation
Double-wall brazed design
Refrigerant compatibility
Natural and low-GWP refrigerants

Material Compatibility


Corrosion resistance
High
Cleanability
Easy to clean
Compatibility with refrigerants
Yes,all types
Temperature tolerance
High
Pressure tolerance
32 to 90 bar

Product type Characteristics


Refrigerant Type Compatibility
All types
