Swirl fluidizer for drying pastes and slurries

Optimize your production line with an efficient drying solution for homogeneous, non-agglomerated powder conversion from pastes, slurries, and filter cakes, ensuring consistent quality and reducing processing time.

Dries and Disintegrates Viscous Materials into Fine Powders

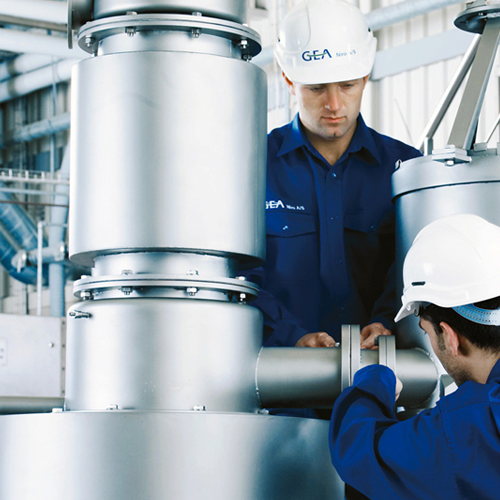

The SWIRL FLUIDIZERĀ® from GEA is a compact, cost-effective drying solution tailored for the chemical, pharmaceutical, and food industries, transforming challenging materials like pastes, slurries, and filter cakes into fine, homogeneous powders. This system employs a vertical bottom-driven agitator, ensuring uniform feed disintegration before introduction to the drying chamber via a custom-designed horizontal auger. The drying chamber, equipped with a tangential air inlet, optimizes thermal efficiency for heat-sensitive products. Uniquely designed for continuous operation, it supports applications producing chemical additives, pharmaceutical powders, and food ingredients like instant powders. The patent-pending Dual Feed System adapts for low-viscosity products like silica and titanium dioxide, enhancing moisture distribution for rapid evaporation. With options for new installations or retrofits, integration is seamless within existing setups. Energy efficiency and process optimization are key, ensuring reliable performance while meeting industry standards.

Benefits

  • Enhances productivity by efficiently handling high-viscosity materials with continuous operation.
  • Reduces energy costs through optimized thermal efficiency tailored to product heat sensitivity.
  • Increases processing flexibility with adjustable feed systems for varying product viscosities.
  • Aligns with sustainability goals by supporting rapid moisture evaporation, minimizing resource use.
  • Easily integrates into existing facilities, offering both new installation and retrofit capabilities.

General


Applications
Food,Titanium dioxide,Silica,Chemical,Pharmaceutical
End products
Silica gel,Chemical additives,Pharmaceutical powders,Instant food powders,Titanium dioxide pigments
Steps before
Feed Preparation,Slurry Creation,Filter Cake Production
Steps after
Powder Handling,Packing,Quality Control
Input ingredients
pastes,filter cakes,highly viscous slurries,silica,titanium dioxide,materials with low solids content
Output ingredients
fine dry powder,homogenous dry powder,non-agglomerated dry powder
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Agitator type
Vertical bottom driven
Automation
PLC-controlled
Drying method
Swirl fluidization
Feed type
Paste / Filter cake / Viscous slurry
Feed distribution
Horizontal auger with controlled speed
Drying chamber design
Optimized for feed disintegration and distribution
Dual Feed System
Patent pending

Operating Characteristics


Working mechanism
Vertical bottom driven agitator
Integrated steps
Feed disintegration,drying,powder discharge
Batch vs. continuous operation
Continuous
Automation level
Controlled speed via horizontal auger
Cleaning method
Manual / CIP
Energy efficiency
Optimized for thermal efficiency

Physical Characteristics


Machine Footprint
Compact
Agitator Type
Vertical bottom driven
Discharge Method
Powder handling system
Shape
Vertical tank with horizontal auger
Feed Method
Controlled speed horizontal auger

Custom Options


Control panel type
PLC-controlled / HMI touch screen
Integration possibilities
Retrofit to existing units available
System upgrade
Dual Feed System (patent pending)
Footprint
Compact design
Speed control
Variable auger speed
