Scraped surface ultra cooler for liquid temperature reduction

Optimize your liquid cooling processes with advanced heat transfer technology, ensuring consistent temperature control and energy efficiency even for high-viscosity products.

Performs Efficient Cooling and Heat Transfer

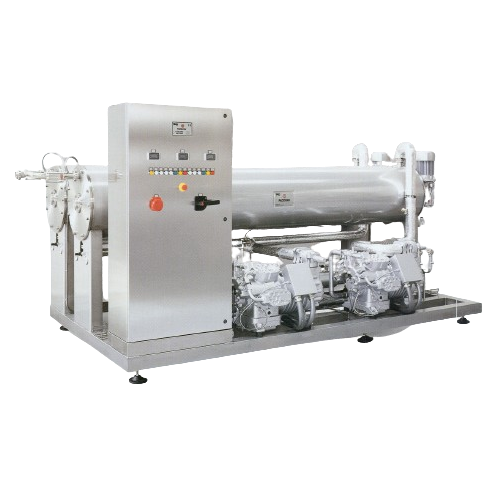

The Scraped Surface Ultra Cooler – Frigouniversal from TMCI Padovan is an innovative solution designed to deliver high-performance cooling for wine, juice, and distillate production. This equipment utilizes evaporators with stainless steel scraped surfaces, ensuring superior heat transfer by maintaining continuous contact between the liquid and refrigerant. Integrated compressors, either hermetic or semihermetic, alongside condensers cooled by air or water, enable a comprehensive refrigeration cycle involving evaporation, compression, condensation, and expansion.

This ultra-cooler is particularly vital for processing Chardonnay and Merlot wines, Concord and white grape juices, as well as brandy and whiskey, by controlling temperature with precision. Designed for continuous operation, it excels in high-viscosity applications thanks to its rotating blades that ensure even temperature distribution. The modular setup is thermally insulated with polyurethane foam to enhance energy efficiency.

Freon and ammonia options are available as refrigerants, with dry expansion and flooded type evaporators to cater to specific cooling needs. Built to integrate seamlessly into production lines, it offers customization to meet various throughput requirements. The unit’s durable construction, combined with safety and control instruments, optimizes both functionality and maintenance, ensuring dependable long-term performance across the food, beverage, wine, distillation, and juice production industries.

Benefits

  • Ensures precise temperature control critical for high-quality wine and juice production.
  • Enhances energy efficiency with thermally insulated modules, reducing operational costs.
  • Facilitates continuous operation, increasing production throughput and consistency.
  • Adapts to various high-viscosity applications, expanding processing capabilities.
  • Offers flexible refrigerant options for tailored cooling solutions.

General


Applications
Distillates,Grape juice,Wine
End products
Chardonnay wine,Concord grape juice,White grape juice,Merlot wine,Whiskey,Brandy
Steps before
Filtration,Pumping,Homogenization
Steps after
Storage,Bottling,Fermentation
Input ingredients
liquids,high viscosity liquids
Output ingredients
cooled liquids
Market info
Padovan (Omnia Technologies) is known for engineering advanced industrial filtration and process equipment, particularly in the beverage, chemical, and food industries, with a reputation for innovation, quality, and tailored solutions in engineered-to-order equipment.

Technical Specifications


Refrigerant Type
Freon / Ammonia
Evaporator Type
Scraped surface / Dry expansion / Flooded
Material
Stainless steel
Insulation
Polyurethane foam
Cooling Mechanism
Surface scraping with rotating blades
Compressor Type
Hermetic / Semihermetic / Open
Condenser Method
Water or air cooled

Operating Characteristics


Working mechanism
Scraped surface with rotating blades
Refrigeration cycle phases
Evaporation,Compression,Condensation,Expansion
Integrated steps
Continuous operation
Refrigerant type
Freon or Ammonia
Thermal insulation
Polyurethane foam
High viscosity handling
Yes

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Stainless Steel
Biological compatibility
N/A
Cleanability
Stainless Steel

Product type Characteristics


Container type
Stainless steel tubular elements

Physical Characteristics


Evaporator Material
Stainless steel
Module Insulation
Polyurethane foam
Scraping Mechanism
Rotating blades
Refrigerant Type
Freon / Ammonia
Evaporator Type
Scraped surface
Compressor Type
Hermetic / Semihermetic / Open type
Condenser Cooling Method
Water / Air cooled

Custom Options


Compressor type
Hermetic / Semihermetic / Open
Condenser cooling
Water-cooled / Air-cooled
Refrigerant type
Freon / Ammonia
Blade rotation mechanism
Motorized
Insulation material
Polyurethane foam
Evaporator type
Scraped surface / Dry expansion / Flooded
