Rising film evaporator for concentration of viscous liquids

Effortlessly concentrate low-to-medium fouling and highly viscous liquids with this compact evaporator, optimizing space and energy efficiency in your production line without requiring extensive installations.

Concentrates and Evaporates Viscous Liquids

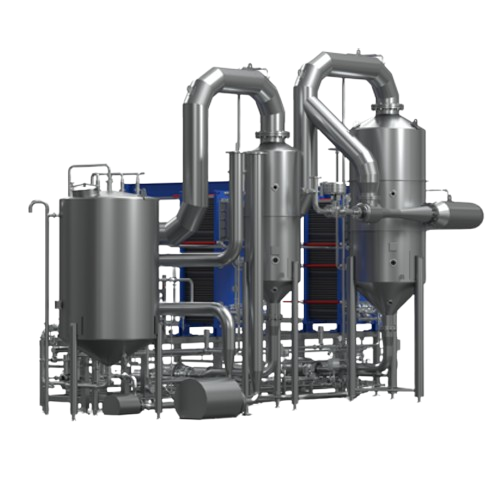

The AlfaVap rising film plate evaporator from Alfa Laval offers a compact solution for processing low-to-medium fouling and highly viscous liquids across several industries, including food and beverage, biofuels, and chemicals. This evaporator operates by allowing liquid to rise along heated plates, promoting efficient evaporation and concentration. With applications ranging from corn syrup to lactic acid production, it leverages multi-effect operation and recompression to minimize steam use, enhancing energy efficiency. The evaporator’s design ensures fast start-up and shutdown, ideal for heat-sensitive products. Capable of automating and adapting to existing systems with its PLC controls, the AlfaVap supports continuous operations, reducing downtime through self-cleaning properties. Its stainless steel construction offers excellent corrosion resistance, while pre-assembled configurations reduce on-site installation time, offering a quick turnaround. Optional customization and engineering support are available to meet specific processing needs.

Benefits

  • Reduces installation and maintenance costs with a compact, space-saving design.
  • Enhances product quality with short residence times and efficient heat transfer, ideal for heat-sensitive materials.
  • Lowers energy usage through efficient steam utilization and multi-effect operation.
  • Increases operational uptime with self-cleaning capabilities that minimize fouling.
  • Seamlessly integrates into existing systems, allowing for cost-effective capacity expansion.

General


Applications
Biofuels,Vegetable protein,Fermentation products,Life science/industrial fermentation,Plant-based proteins,Sugars,Food and beverage,Chemicals and wastewater,Meat and fish broths,Non-dairy plant drinks,Sweeteners
End products
Lactic acid,Pea protein isolate,Protein shakes,Broth concentrate,Confectionery syrups,Gelatin powder,Corn syrup,Oat milk,Almond milk,Ethanol fuel,Whey protein concentrate,Collagen supplements,Plant-based milk,Citric acid,Table sugar,Fish sauce,Yeast extract,Soy protein concentrate,Insect protein powder,Amino acid supplements
Steps before
Purification,Preheating,Mixing,Screening
Steps after
Concentration,Vapour Separation,Cooling,Storage
Input ingredients
low-to-medium fouling liquids,highly viscous liquids,dissolved solids,higher media concentrations,viscosities,sugar,sweetener,animal and plant-based protein,bioethanol,caustic solutions,fruit juices,fruit purées,vegetable purées,confectioneries,ethanol stillage,meat broths,vegetable broths,gelatine,collagen peptides,fermentation products,coffee,tea,vegetable protein,milk protein,whey protein,non-dairy plant drinks,oat drinks,nut drinks,beer,herbal extracts,starch,sweeteners,sugars,glucose,dextrose,fructose,maltose,gelatine,stick water,meat broths,fish broths,insect protein slurries,plant-based proteins,caustic NaOH,KOH,LiOH,inorganic salts,fermentation broths,lysine,lactic acids,citric acids,amino acids,yeast extract
Output ingredients
concentrated low-to-medium fouling liquids,concentrated highly viscous liquids,concentrated dissolved solids,concentrated sugar,concentrated sweetener,concentrated animal and plant-based protein,concentrated bioethanol,concentrated caustic solutions,concentrated fruit juices,concentrated fruit purées,concentrated vegetable purées,concentrated confectioneries,concentrated ethanol stillage,concentrated meat broths,concentrated vegetable broths,concentrated gelatine,concentrated collagen peptides,concentrated fermentation products,concentrated coffee,concentrated tea,concentrated vegetable protein,concentrated milk protein,concentrated whey protein,concentrated non-dairy plant drinks,concentrated oat drinks,concentrated nut drinks,concentrated beer,concentrated herbal extracts,concentrated starch,concentrated sweeteners,concentrated sugars,concentrated glucose,concentrated dextrose,concentrated fructose,concentrated maltose,concentrated gelatine,concentrated stick water,concentrated meat broths,concentrated fish broths,concentrated insect protein slurries,concentrated plant-based proteins,concentrated caustic NaOH,KOH,LiOH,concentrated organic salts,concentrated fermentation broths,concentrated lysine,concentrated lactic acids,concentrated citric acids,concentrated amino acids,concentrated yeast extract
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Height
50-70% less than conventional shell-and-tube evaporators
Energy Efficiency
High,uses less steam
Heat Transfer Efficiency
Up to three times higher than shell-and-tube evaporators
Uptime
Maximized with minimal fouling
Installation Time
Reduced to one to three weeks
Footprint
Compact,space-saving
Steam Consumption
Low with multiple effects and recompression units
Installation Requirement
Single floor,few or no pumps
Product Quality Improvement
Fast start-up,high transfer efficiency,short residence time

Operating Characteristics


Working mechanism
Rising thin film evaporation
Startup/Shut-down time
Fast
Heat transfer efficiency
High
Turbulence and shear rate
High
Compact design
50-70% less height
Automation level
PLC controlled
Maintenance requirement
Low,minimal fouling
Energy efficiency
High due to reduced steam use

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Cleanability
High

Product type Characteristics


Viscosity
High Viscosity
Product concentration
Dissolved solids,high media concentrations
Material state
Liquid

Physical Characteristics


Machine footprint
50-70% shorter in height than traditional systems
Installation Height
50-70% less than conventional evaporators
Control panel type
Local programmable logic controller (PLC)
Discharge method
Vapour/liquid mixture enters vapour separator

Custom Options


Control panel type
Local programmable logic controller (PLC)
