Small scale spin flash dryers for high-viscosity liquids

Optimize moisture control with cutting-edge spin flash dryers designed for efficient drying of high-viscosity liquids, cohesive and non-cohesive pastes, and sludges, ensuring product consistency and quality across diverse applications.

Dries and Dehydrates High-Viscosity Materials

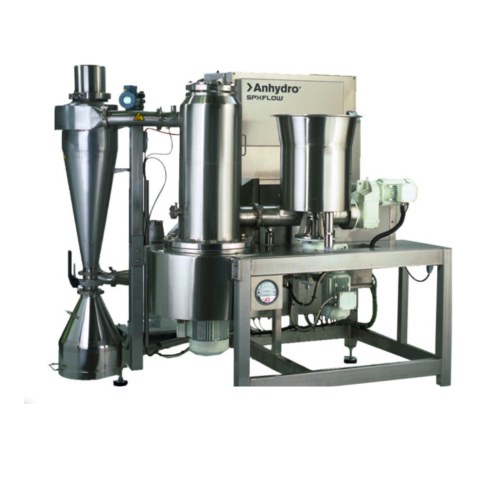

The SFD 47 and SFD 51 from Anhydro are designed for precise and efficient drying of complex mixtures including cohesive pastes, sludges, and high-viscosity liquids. Utilizing a spin flash drying process, these units ensure continuous operation that suits both large testing and small-scale production environments. They excel in processing a wide range of applications such as dairy powders, personal care products, and plant-based foods, delivering optimal results in end-products like tomato paste, milk powder, and vitamin supplements. With a maximum water evaporation rate of 120 kg/h, the SFD models offer significant throughput capabilities, integrated into your production line with its PLC-controlled system. The inclusion of an indirect gas heater enhances energy efficiency while the option of stainless steel construction provides excellent corrosion resistance. Delivered as a complete unit with full documentation, these dryers ensure easy installation and maintenance, meeting the needs of sectors from pharmaceutical to food processing.

Benefits

  • Enhances production efficiency with continuous drying capability.
  • Lowers energy costs using an indirect gas heater for effective drying.
  • Adapts to a broad range of materials, increasing operational versatility.
  • Simplifies integration with standard PLC controls for seamless production line compatibility.
  • Minimizes maintenance efforts with easy installation and complete documentation included.

General


Applications
Personal care,Beverages,Chemical processing,Fats and oils,Nutraceuticals,Pet food,Sludges,Plant-based food,Dairy powders,Food processing,Dairy processing,Filter cakes,High-viscosity liquids,Baby food,Cohesive and non-cohesive pastes,Pharmaceutical
End products
Hair gel,Dog kibble,Infant formula,Cheese powder,Aspirin powder,Almond milk,Vitamin supplements,Milk powder,Sewage sludge,Energy drinks,Coconut oil,Moisturizers,Industrial solvents,Tomato paste,Activated carbon filter cakes,Protein bars
Steps before
Filtration,Homogenization
Steps after
Packing
Input ingredients
cohesive pastes,non-cohesive pastes,filter cakes,sludges,high-viscosity liquids
Output ingredients
dried cohesive pastes,dried non-cohesive pastes,dried filter cakes,dried sludges,dried high-viscosity liquids,higher solid content products
Market info
SPX Flow is renowned for its expertise in manufacturing industrial ETO equipment, specializing in fluid handling and processing solutions. They are recognized for innovation, reliability, and providing efficient solutions across diverse industries, including food, beverage, and industrial markets.

Technical Specifications


Floor space
181 x 130 in (4600 x 3300 mm)
Height
157 in (4000 mm)
Recommended Free Height
217 in (5500 mm)
Weight
4850 lbs (2200 kg)
Capacity
Water evaporation rate,max
Drying Air Rate
4400 GPM (1000 m³/h)
Inlet Air Temperature
932°F (500°C)
Automation
PLC control system

Operating Characteristics


Drying method
Spin Flash Drying
Continuous drying
Yes
Automation level
PLC-controlled
Batch vs. continuous operation
Continuous

Material Compatibility


Abrasion resistance
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
High
Density/particle size
Handles various

Physical Characteristics


Machine footprint
181 x 130 in (4600 x 3300 mm)
Height
157 in (4000 mm)
Recommended free height
217 in (5500 mm)
Weight net (plant and filter)
4850 lbs (2200 kg)

Custom Options


Control system
PLC-controlled
Integration options
Complete standardized unit
Safety system
Included
Heating method
Indirect gas heater
Installation
Easy installation
Maintenance
Easy maintenance
