Forced circulation crystallizer for evaporative crystallization

Optimize your crystallization processes with a robust solution designed for efficient handling of viscous media and evaporative salts, ensuring controlled nucleation and production of high-purity crystalline products.

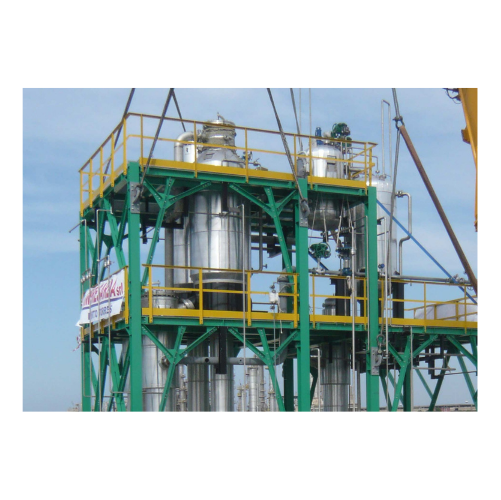

Handles Crystallization and Evaporation for Diverse Industries

The Qafco FC Forced Circulation Crystallizer offers robust solutions for chemical, food, and pharmaceutical industries. Known for its simple yet efficient design, it excels in crystallization and evaporation processes, effectively handling sodium chloride, ammonium sulfate, citric acid, and more. Utilizing a high mechanical energy input, it effectively manages viscous media and aids in nucleation. Its MSMPR design supports continuous operations, achieving high-quality separation and uniform crystal growth. Equipped with axial-flow propeller pumps, it ensures optimal circulation and heat exchange. Customizable with single or double loop installation, and built from corrosion-resistant materials, it promises longevity. The system integrates smoothly into existing production lines, offering PLC control for automation. Additionally, it minimizes downtime with advanced surface treatment and effective flushing concepts, ensuring high operational efficiency.

Benefits

  • Enhances product purity with integrated salt leg for precise crystallization.
  • Minimizes operational downtime through reliable flushing and surface treatment.
  • Facilitates energy-efficient operation with superheating and optimal circulation.
  • Delivers consistent product quality with high secondary nucleation rates.
  • Seamlessly integrates into existing lines with customizable configurations.

General


Applications
Chemical compounds,Crystalline products,Viscous media products,Food ingredients,Chemical solutions,Minerals,Evaporative salts
End products
Sodium chloride,Magnesium chloride,Silicon dioxide,Calcium chloride,Ammonium sulfate,Aluminum sulfate,Phosphate salts,Zinc sulfate,Sodium sulfate,Urea,Sodium bicarbonate,Potassium sulfate,Citric acid,Corn syrup solids,Crystalline sugar
Steps before
Evaporative crystallization preparation,Initial pumping and circulation setup
Steps after
Condensate quality control,Product purity enhancement,Packing,Storage
Input ingredients
viscous media,slurry,solvent,superheated liquid
Output ingredients
crystals,evaporated solvent,condensate
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Nucleation rate
Elevated secondary nucleation rate
Crystal size
Limited to <0.8mm
Design type
MSMPR (mixed suspension,mixed product removal)
Solubility curve
Flat or inverse solubility
Installation
Single or double loop
Inlet type
Central pipe or tangential
Energy input
High mechanical energy input
Pump type
Axial-flow propeller
Thermal energy source
Heat exchanger
Heating options
Live steam or waste heat

Operating Characteristics


Mechanism
MSMPR (mixed suspension,mixed product removal)
Secondary nucleation rate
High
Installation Type
Single loop / double loop
Operation
Evaporative Crystallization
Crystal Size Limitation
<0.8mm
Scaling Minimization
Surface treatment and reliable flushing
Energy Input
High mechanical energy input
Operation Type
Batch

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Crystallizer Type
FMixed suspension-mixed product removal (MSMPR)

Physical Characteristics


Crystallizer vessel size
Customizable
Circulation loop type
Single or Double loop
Inlet type
Central pipe or Tangential
Installation footprint
Compact
Heat exchanger type
External
Piping configuration
Interconnected
Pump type
Axial-flow propeller
Surface treatment
Scaling resistant

Custom Options


Single loop or double loop installation
Single / Double
Central pipe or tangential inlets
Central / Tangential
