Industrial ring dryers for high-capacity drying applications

Maximize drying efficiency for diverse materials with ring dryers, offering precise moisture removal and exceptional product quality through innovative recycling and circulation techniques.

Evaporates and Dries Moisture from Diverse Materials

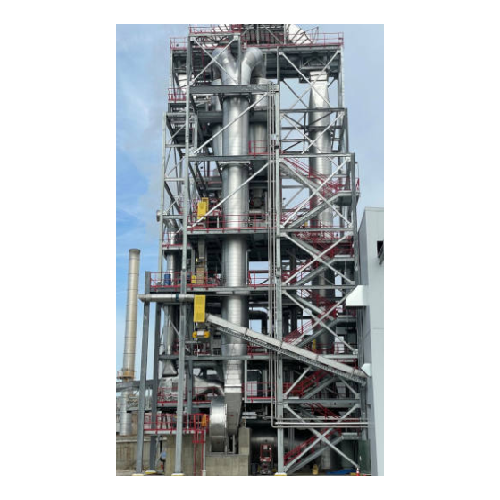

The PGR Ring Dryer from Dedert Corporation is engineered to efficiently evaporate moisture from a variety of materials in high-capacity operations. Utilizing a ring manifold and centrifugal classification, it re-circulates semi-dry solids to ensure thorough drying, making it ideal for challenging applications like citrus fiber, DDGS, and vital wheat gluten. With a remarkable capacity to handle up to 179,000 ACFM and evaporate 34 tons of water per hour, this equipment integrates seamlessly into continuous processing lines. It offers partial gas recycle (PGR) configuration, reusing exhaust air for heightened energy efficiency. Constructed with corrosion-resistant materials, the dryer supports resilient and temperature-sensitive products, ensuring high-quality outcomes. Automated and PLC-controlled with flexible configurations, the PGR Ring Dryer also supports customized design solutions, promising specified drying requirements and streamlined maintenance with built-in cleaning systems.

Benefits

  • Maximizes drying efficiency with a recirculating system that ensures thorough moisture removal.
  • Reduces energy costs through partial gas recycle technology that optimizes heat reuse.
  • Supports high-capacity operations, processing up to 179,000 ACFM and 34 tons of water per hour.
  • Maintains product integrity with short residence time to prevent heat damage.
  • Offers versatile configuration options catering to diverse material types and production needs.

General


Applications
Grains,Chemical,Plant-based protein,Food ingredients,Starch,Metal oxide,Minerals,Biofuel
End products
Mineral supplements,Wood pulp products,Corn starch,Citrus fiber ingredients,Orange peel powder,Metal oxide powders,Distillers dried grains with solubles (ddgs),Vital wheat gluten products,Corn fiber supplements,Corn gluten meal,High-protein ddg feed,Calcium carbonate additives,Wheat gluten
Steps before
Emulsification,Grinding
Steps after
Packing,Coating
Input ingredients
Orange Peel,Citrus Fiber,Calcium Carbonate,Corn Gluten,Corn Fiber,Corn Starch,Distillers Dried Grains and Solubles (DDGS),High Protein DDG,Metal Oxide,Minerals,Starches,Wheat Gluten,Powders,Pastes,Cakes,Slurries
Output ingredients
Dried Orange Peel,Dried Citrus Fiber,Dried Calcium Carbonate,Dried Corn Gluten,Dried Corn Fiber,Dried Corn Starch,Dried DDGS,Dried High Protein DDG,Dried Metal Oxide,Dried Minerals,Dried Starches,Dried Wheat Gluten,Dried Powders,Dried Pastes,Dried Cakes,Dried Slurries
Market info
Dedert is known for its expertise in designing and supplying advanced drying and evaporation technologies, serving the chemical, food, and other processing industries with innovative and efficient engineered-to-order solutions.

Technical Specifications


Volume capacity
179,000 ACFM
Evaporation rate
34 tons of water per hour
Residence time
a few seconds
Dryer type
Feed-Type/P-Type/Full-Ring
Configuration
Open-Circuit / Partial Gas Recycle

Operating Characteristics


Drying mechanism
Ring drying with manifold classifier
Exposure time
Short residence time of seconds
Automation level
Customizable designs for different controls
Energy configuration
Open-Circuit / Partial Gas Recycle
Cleaning method
Designed for easy cleanability
Changeover time
Adaptable to product variances
Batch vs. continuous operation
Continuous
Product handling capability
Handles powders,pastes,cakes,or slurries
Temperature sensitivity accommodation
P-Type Ring Dryer for lower temperature
Product recycle mechanism
Manifold directs solids recycle

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Custom Options


Temperature zones
Higher-temp feed / Lower-temp exhaust
Manifold design
Centrifugal classifier
