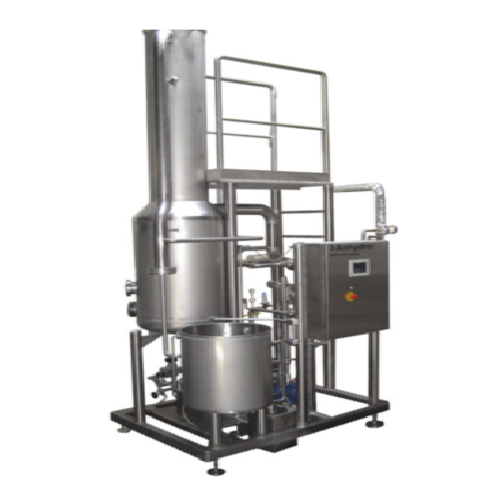

Small scale continuous evaporator

Ideal for lab and small-scale production, this evaporator offers precise control for reducing liquid bulk into concentrates like milk powder or fruit juice, enhancing process efficiency and consistency.

Performs Continuous Liquid Evaporation

The Anhydro MicraVap 100 is a flexible laboratory tubular evaporator designed to meet the demands of continuous evaporation in small-scale operations. It integrates seamlessly into research and development environments, as well as niche production lines in industries like dairy, food, and pharmaceuticals. Featuring a vertical tubular calandria and tubular condenser, the MicraVap 100 efficiently separates and condenses vapors in one streamlined process. This unit is ideal for creating diverse end-products such as milk powder, whey protein concentrate, and plant-based milk alternatives. Operating at optimized energy levels, it enhances solvent recovery while reducing energy consumption. Constructed from stainless steel for corrosion resistance, all components are consolidated on a skid for easy implementation and maintenance. With accessibility for inspection and cleaning, it offers durability and compliance with industry standards, facilitating reliable operation and assured quality in evaporation processes. Customizable to bespoke R&D requirements, it supports precise control, essential for innovative product development and small-scale production challenges.

Benefits

  • Enhances product quality through precision-controlled evaporation.
  • Reduces operational costs with energy-efficient design.
  • Supports diverse R&D applications with customizable configurations.
  • Minimizes contamination risk with easy-access inspection and cleaning.
  • Facilitates seamless integration into existing lab setups with compact skid design.

General


Applications
Beverages,Beverage processing,Plant-based food,Plant-based drinks and food,Food processing,Dairy powders,Dairy processing,Yogurt,Baby food,Fruit juice
End products
Non-dairy creamers,Soy milk concentrate,Yogurt base,Infant formula,Evaporated milk,Oat milk concentrate,Milk powder,Whey protein concentrate,Plant-based milk alternatives,Fruit juice concentrate
Steps before
Filtration,Homogenization,Mixing,Blending,Heat Transfer,Deaeration
Steps after
Drying,Packaging,Storage,Sterilization
Input ingredients
liquid products,milk,cream,fruit juice,plant-based drinks
Output ingredients
evaporated products,dairy powders,concentrated liquid
Market info
SPX Flow is renowned for its expertise in manufacturing industrial ETO equipment, specializing in fluid handling and processing solutions. They are recognized for innovation, reliability, and providing efficient solutions across diverse industries, including food, beverage, and industrial markets.

Technical Specifications


Calandria Type
Vertical Tubular
Operation
Continuous
Evaporation Scale
Laboratory / Small-production
Condenser Type
Tubular
Skid Material
Stainless Steel

Operating Characteristics


Working mechanism
Vertical tubular calandria and tubular condenser
Integrated steps
Continuous evaporation
CIP/SIP
CIP compatible
Batch vs. continuous operation
Continuous
Automation level
Control system via instrument panel
Energy efficiency
Depends on feed,heating system
Changeover time
Quick access for inspection via top-mounted liquid distributor

Material Compatibility


Cleanability
Stainless steel components
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
Liquid products

Physical Characteristics


Machine footprint
Pre-mounted on stainless steel skid
Calandria
Vertical tubular
Separator
Vapour separator with duct
Condenser
Tubular
Control panel type
Instrument panel
Feed system
Top-mounted liquid distributor

Custom Options


Control panel type
Instrument panel
Support structure
Stainless steel skid
System integration
Modular system
