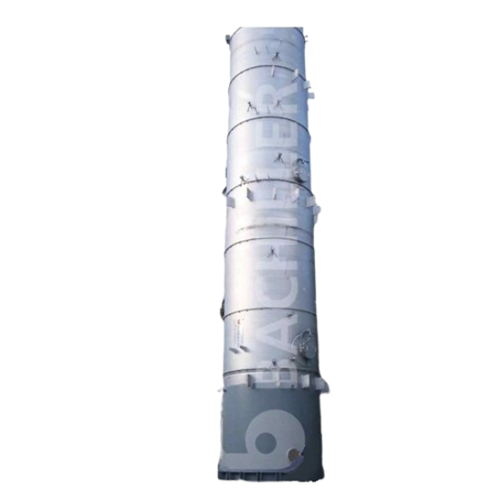

Industrial columns and towers for chemical processing

Optimize your chemical production with robust columns and towers, designed for precise separation and purification processes ensuring high yields and product consistency.

Facilitates Separation and Purification Processes

Bachiller’s custom-designed industrial columns and towers offer tailored solutions for diverse separation and purification needs. Utilizing advanced internal designs like trays and distribution pipes, these structures enhance efficiency in catalyst regeneration, distillation, and rectification. Suitable for producing polyethylene and fine chemicals, they accommodate material options such as austenitic stainless steels and nickel alloys for corrosion resistance. With diameters up to 7,500 mm and heights reaching 50,000 mm, they integrate effortlessly into high-scale operations in petrochemical, pharmaceutical, and biotechnology industries. Certified under ASME and EN standards, these columns ensure safety and compliance, supported by options like internal polishing for stringent process requirements.

Benefits

  • Enhances production efficiency with customized configurations for complex processes.
  • Supports a wide range of materials, ensuring durability and corrosion resistance.
  • Maximizes operational capacity with large-scale dimensions tailored to specific needs.
  • Ensures compliance with international safety and design standards for peace of mind.
  • Integrates smoothly into existing operations with customizable internal structures.

General


Applications
Essences and aroma,Purification,Rectification,Cosmetics,Natural extracts,Wood and derivates,Oxidation,Minerals,Food,Biotechnology,Fine chemicals,Waste treatment,Biocides,Separation,Refining (oil,Plastics and polymer,Pulp and paper,Chemical,Petrochemical,Resins,Evaporation,Catalyst regeneration,Fraction,Gas),Distillation,Pharmaceutical
End products
Aluminum sulfate,Plastic resins,Recycled plastics,Nail polish remover,Sugars,Decaffeinated coffee,Pulp slurry,Fragrance oils,Crude oil fractions,Liquid detergents,Silicone polymers,Hydrogenated oils,Mineral extracts,Aromatherapy oils,Vitamin extracts,Polyethylene,Vaccine components,Biodiesel,Ethanol,Biofuels,Perfume distillates,Acrylic resins,Essential oils
Steps before
Fabrication,Design of internals,Heating/Cooling setup
Steps after
Separation,Distillation,Purification,Rectification
Input ingredients
raw materials,chemical compounds,reactants,feedstock,crude oil,unrefined materials
Output ingredients
distillate,purified product,separated compounds,oxidized materials,fractionated products,evaporated substances,catalyst regenerated products
Market info
Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.

Technical Specifications


Weight Capacity
Up to 130 tons
Diameter Range
From 200 mm up to 7,500 mm
Height
Up to 50,000 mm
Thickness
From 3 mm up to 50 mm
Heating/Cooling Option
Double jacket,limpet coils,dimple jacket
Surface Finish
Internal polishing,Ra ≤ 1.2 µm up to Ra ≤ 0.2 µm
Internal Electropolishing
Optional
Design Codes
ASME VIII div.1,AD-2000,EN-13445,BS-5500
Software Used
Microprotol,Compress,PVElite
Seismic and Wind Load Calculation
According to pertinent local rules
Internal Coils
Available
Inserted Tube Bundles
Possible
Welding Methods
SAW,GMAW,FCAW,GTAW

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C / SIP 135°C
Energy efficiency
0.5–2 kWh/kg moisture
Cleaning method
CIP / Manual

Material Compatibility


Corrosive resistance (e.g. acids)
Austenitic Stainless Steels,Super Austenitic Stainless Steels,Nickel Alloys and Superalloys
Cleanability
Internal polishing,Internal Electropolishing

Product type Characteristics


Application types
Catalyst regeneration,Distillation,Evaporation,etc.

Physical Characteristics


Weight
Up to 130 tons
Diameter
200 mm to 7,500 mm
Height
Up to 50,000 mm
Thickness
3 mm to 50 mm
Support Type
Skirts,brackets or rings
Heating/Cooling
Double jacket,limped coils,dimple jacket
Internal Coils
Available
Tube Bundles
Inserted possible
Internal Polishing
Ra ≤ 1.2 µm up to Ra ≤ 0.2 µm
Internal Electropolishing
Optional
Ladders/Platforms/Handrails
Supply Available

Custom Options


Support Options
Skirts,Brackets,Rings
Internal Fabrication
Trays,Supporting Rings,Distribution Pipes
Heating/Cooling Features
Double Jacket,Limped Coils,Dimple Jacket
Internal Coils
Available
Inserted Tube Bundles
Possible
Internal Polishing
From Ra ≤ 1.2 µm up to Ra ≤ 0.2 µm
Internal Electropolishing
Option Available
Ladders,Platforms,Handrails
Supply Available
