Forced circulation evaporator for tomato and fruit paste

Optimize your high-viscosity tomato and fruit paste production with our forced circulation evaporator, designed to maintain quality while efficiently handling super-hot break products.

Concentrates and Processes High-Viscosity Liquids

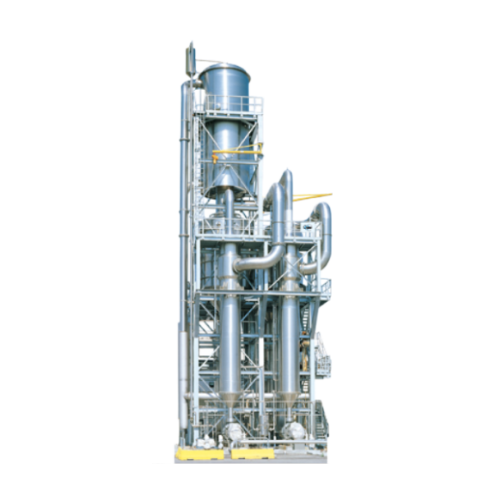

The Forced Circulation Evaporator Model 3514 from JBT is engineered to meet the challenges of high-viscosity product concentration in food and beverage applications. Utilizing a series of multiple effect evaporators, this system employs tube-in-shell heat exchangers for efficient recirculation, ensuring a consistent and reliable separation process. Ideal for producing end-products like tomato paste, fruit puree, and nut butter, the Model 3514 excels in maintaining quality with a capacity to process super-hot break products. Operating continuously, the evaporator is controlled by an advanced PC/PLC system, reducing the risk of overcooking and minimizing energy use with a lower temperature profile. Designed for robust integration, it supports seamless incorporation into automated production lines, enhancing throughput and maintaining product integrity. Available in durable materials, it offers minimal maintenance downtime with cleaning solutions to match stringent hygiene standards, ensuring compliance and long-term performance.

Benefits

  • Enhances product quality by preventing overcooking through low-temperature processing.
  • Minimizes operational interruptions with continuous operation exceeding 45 days.
  • Reduces maintenance costs by ensuring the heat exchanger remains consistently wet, preventing burning.
  • Increases production efficiency with automated start-up and shutdown via a PC/PLC system.
  • Adaptable for challenging high-viscosity products, expanding processing capabilities.

General


Applications
Beverages,Soups,Sauces,Fruits,Oils,Nuts,Dressings,Seasonings,Baby food,Juices
End products
Olive oil,Soy sauce,Chicken soup concentrate,Vinaigrette dressing,Nut butter,Tomato paste,Orange juice concentrate,Apple juice concentrate,Fruit puree,Tomato sauce
Steps before
Grinding,Juicing,Extraction,Chopping
Steps after
Fruit,Vegetable Processing,Sterilization,Filling,Packaging
Input ingredients
super-hotbreak products,highly viscous ingredients,tomato products,fruit products
Output ingredients
high quality tomato paste,high quality fruit paste
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Automation
PC/PLC-controlled
Capacity
High viscosity and super-hotbreak capable
Operating time
More than 45 days without downtime
Temperature control
Low temperature operation
Heat exchanger design
Tube-in-shell heat exchanger with upward forced flow recirculation

Operating Characteristics


Working mechanism
Forced circulation with vertical tube-nest heat exchangers
Integrated steps
Multiple effect evaporation
Control system
PC/PLC controlled
Downtime
Operates more than 45 days without downtime
Startup and shutdown control
PC/PLC system
Risk of burning
Minimized due to consistently wet heat exchanger
Processing capability
Handles super-hot break,highly viscous products

Material Compatibility


Abrasion resistance
Suitable for highly viscous products
Corrosive resistance
Heat exchanger consistently wet
Biological compatibility
Food-grade materials
Cleanability
Designed for low risk of burning
Density/particle size
Highly viscous super-hot break

Product type Characteristics


Agglomeration risk
Super-hotbreak processing

Physical Characteristics


Machine footprint
N/A
Tube-nest shape
Vertical
Heat exchanger type
Tube-in-shell
Flow configuration
Upward forced flow
Recirculation method
Recirculation pump
Vapor separation chamber
Present
Control system
PC/PLC system

Custom Options


Control panel type
PC/PLC controlled
