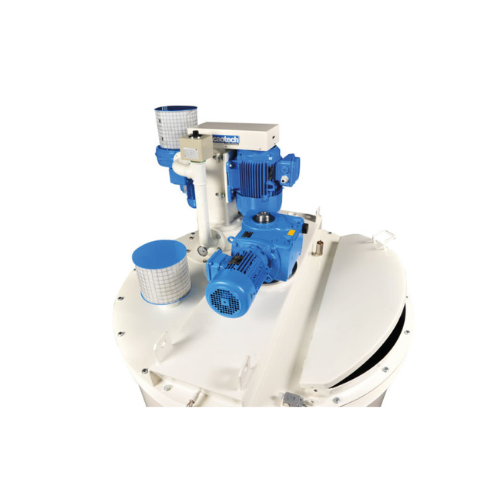

Wet conching system for chocolate production

Achieve optimal chocolate viscosity and flavor by effectively removing volatiles, acids, and moisture through efficient thin-film evaporation, enhancing the quality and taste of your final product.

Mixes and Homogenizes Chocolate Masses

The CWC 1000 from Caotech is a high-performance wet conching system engineered to enhance the production of chocolate and related coatings. This unit specializes in mixing, homogenization, and the removal of volatiles, acids, and moisture, employing a thin-film evaporation technique. With a capacity of up to 1,000 kg/h, it efficiently processes chocolate masses to improve viscosity and taste. The system integrates seamlessly with a mixing tank and circulation system, supporting continuous, high-speed operations and optimizing your production line. The CWC 1000 is designed to reduce energy consumption with its low power requirement of 13 kW and offers minimal maintenance due to its robust construction. It suits applications in the food and confectionery industries, delivering high-quality chocolate bars, truffles, and compound coatings with consistent product quality and efficiency.

Benefits

  • Enhances chocolate flavor and texture by removing unwanted volatiles and moisture.
  • Increases production efficiency with a throughput of up to 1,000 kg/h.
  • Reduces energy costs with low power consumption of 13 kW.
  • Saves space with a compact design that requires no foundation.
  • Lowers operational costs with minimal maintenance requirements.

General


Applications
Chocolate,Ice cream coatings,Compound coatings
End products
Chocolate truffles,Compound-coated nuts,Ice cream bars with compound coating,Chocolate bars,Chocolate dragees,Chocolate coating for confectioneries
Steps before
Collection of cocoa beans,Grinding of cocoa beans
Steps after
Packing,Coating
Input ingredients
cocoa beans,chocolate-related masses
Output ingredients
chocolate,compound coatings,ice cream coatings
Market info
Caotech is known for its expertise in designing and manufacturing industrial equipment for processing cocoa, chocolate, and confectionery. The company is reputable for producing high-quality, tailor-made processing machinery, catering to both large-scale operations and niche producers.

Technical Specifications


Capacity
Up to 1,000 kg/h
Installed power
13 kW
Weight
350 kg (including circulation pump and control panel)
Dimensions (LxWxH)
815 x 600 x 900 mm
Conching method
Wet conching with thin-film evaporation
Evaporation
Thin-film by fast rotating disc and pre-heated air
Conching capacity
Depends on desired flavour and moisture content
Power consumption
Low energy consumption
Maintenance
Low maintenance costs

Operating Characteristics


Working mechanism
Thin-film evaporation
Integrated steps
Mixing,homogenization,volatile removal
Batch vs. continuous operation
Inline Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
815 x 600 mm
Height
900 mm
Weight
350 kg
Control panel type
Included
Discharge method
N/A
Compact footprint
Yes

Custom Options


Control panel type
Available
Integration Possibilities
Compatible with external circulation systems
Footprint
Compact,no foundation required
