Spray dryer for heat-sensitive powders

Ensure high-quality drying of heat-sensitive powders, producing non-caking and non-hygroscopic results that maintain product integrity and stability.

Processes and Dries Heat-Sensitive Powders Continuously

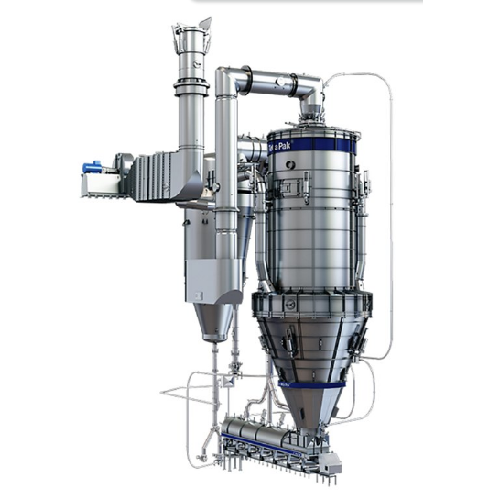

The Tetra Pak® Spray Dryer Tall Form Bustle is a cutting-edge solution designed for continuous, high-quality spray drying of heat-sensitive powders. Ideal for dairy producers, whey processing facilities, and nutritional product manufacturers, it efficiently transforms liquids into powders like infant formula and protein shakes. The system integrates seamlessly into full production lines, including evaporation and powder handling stages. This spray dryer features a modular design with a straight tube air distributor and high-pressure nozzles, which reduces energy consumption and minimizes pressure drops. With capacities ranging from 0.5 to 10 tonnes per hour, it supports diverse powder properties and production rates. The drying process is further enhanced by a chamber roof cooling system to prevent material deposits and overheating. For safety and ease of operation, swivel adjustable lances enable precise process adjustments. Additionally, the Tetra Pak® Shaking Bed and a middle-pressure fines transport system ensure optimal moisture removal and particle distribution. Hygienically designed, the equipment supports automated, continuous operations with PLC control and energy optimization features. Customizable configurations and engineering support are available to meet specific production requirements.

Benefits

  • Ensures high-quality powder output by preventing bearding and overheating.
  • Optimizes energy usage with smart air distribution and heat recuperation technologies.
  • Increases operational efficiency with automated, continuous processing.
  • Enhances safety and precision with adjustable and easily accessible lances.
  • Offers flexible processing capabilities for a wide range of heat-sensitive powders.

General


Applications
Hydrolyzed proteins,Whey protein concentrates,Skim milk,Milk powder,Infant formula powder,Minerals,Nutritional powders,Plant-based powders,Dairy products,Whey protein isolates
End products
Instant skimmed milk powders,Beverage whitening powders,Protein snack bars,Fortified mineral supplements,Infant formula,Protein shakes,Sports nutrition supplements,Nutritional meal replacement powders,Dairy-free milk alternatives,Dietary supplements
Steps before
Evaporation,Crystallization
Steps after
Powder Handling,Packing
Input ingredients
WPC80,WPI,skim milk,minerals,hydrolyzed proteins
Output ingredients
non-caking powder,non-hygroscopic powder,high-quality powder
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
0.5 to 10 tonnes per hour
Automation
Continuous system
Air pressure drop
Relatively low
Max air inlet temperature
280˚C

Operating Characteristics


Batch vs. continuous operation
Continuous
Cleaning method
CIP
Automation level
Fully automatic
Energy efficiency
Low energy consumption due to low pressure drop
Changeover time
Minimal due to modular design
Integration level
Integrated with full Tetra Pak line solution
Flexibility in product range
High,suitable for various heat-sensitive powders

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Heat sensitivity
Yes
Agglomeration risk
Yes
Powder caking
Non-caking
Powder hygroscopicity
Non-hygroscopic
Drying flexibility
High


3A Sanitary Standards
Yes
GMP Compliance
Yes
FDA Materials
Yes
CE Marking
Yes
EHEDG Certification
Yes
ATEX Certification
Yes

Physical Characteristics


Machine footprint
Compact design
Tall form design
Yes
Air distributor type
Straight tube air distributor (STAD)
Nozzle assembly
High-pressure
Lance adjustment
Swivel adjustable
Chamber roof cooling
Integrated system
Venturi deployments
Modular
Drying stages
Single- and multi-stage
Bag Filter design
Top exit via clean air side

Custom Options


Modular design
Multiple venturi deployments
Swivel adjustable lances
Side-mounted placement
Spray monitoring system
Camera system connected by fiber optic cable
Exhaust air heat recuperator
Energy optimisation
