Bottling Equipment

Bottle filling equipment entails transferring your products to a bottle which involves inspecting the material, and then conveyors feed it into the machine which then pours it into the vessels using volumetric technology and nozzles before capping them. Bottle filing varies not only in product type but in the size, shape, and material of the container too. Depending on your operation, filling systems may adopt in-line or rotary methods before transferring the bottles to the next stage of processing.

Bottle filling equipment

Inspection of jars and bottles is an essential part of any reliable bottle filling operation. Beverage bottles need to be inspected for foreign objects, contaminants, or any residual liquid before filling. After filling, the bottles need to be checked again to ensure the desired fill level, no leaks or potential label problems. Bottles generally travel along conveyors that feed them into the system whereby non-contact optical inspection takes place. This process is usually automated and uses technology to scan the bottles for any potential issues. Considerations for selecting bottle inspection equipment include the size, shape, and material of the bottles, production speed, and the relevant inspection parameters. Bottle inspection equipment is widely used in the food industry to ensure compliance with quality control procedures as well verification.

Bottle inspection systems

A bottle sorter automatically sorts empty bottles at high speeds by size, color or shape before filling. A bottle unscrambler receives empty bottles in bulk and positions them on a moving conveyor for further processing. Both pieces of equipment are generally integrated into a complete and automated production line. Considerations for selecting a bottle sorter or unscrambler include the size, shape, and material of the bottles, production speed, and sorting criteria. Bottle sorters and unscramblers are used in the food industry for packaging fruit juices, oils, and other liquid products; in the pharmaceutical industry, they are used for the filling of vials, ampoules, and bottles.

Bottle sorters and unscramblers

Empty bottle inspection equipment can help ensure the safety and quality of a bottle-filling operation. Bottles may need to be inspected for variation in size, shape, and color, for the presence of foreign objects, for breakage, or for the presence of residual liquid. The bottle finish, capping-thread, inner and outer sidewalls, may also require an inspection to ensure compliance with quality standards. Considerations for selecting the right equipment include the size, shape, and material of the bottles, production speed, and other relevant inspection parameters. Bottle inspection equipment is widely used in the food industry to ensure compliance with quality control procedures. In the pharmaceutical industry vial, ampoules and bottles are inspected to ensure product safety.

Empty bottle inspection

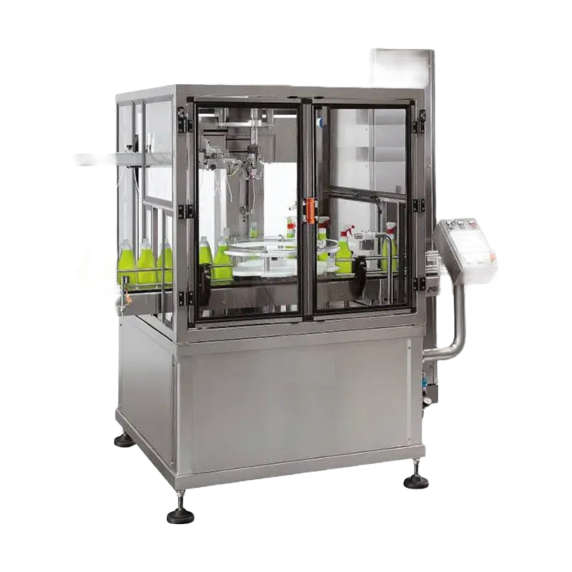

Bottle capping solutions

bottling-process

Bottling-process

When bottling beer and soft drinks in glass, achieving high precision while minimizing CO2 consumption is a critical challenge. Excess oxygen pickup can degrade quality, and changing bottle sizes adds to the complexity.
<h2>Efficient bottling with reduced Co2 usage</h2>
The Innofill Glass DPG by KHS is designed for precise bottling of beer and soft drinks in glass containers. This pneumatically-controlled system minimizes CO2 usage by up to 50% when compared to traditional methods. It also ensures very low oxygen pickup, preserving the quality of the beverage. With a processing capacity of up to 75,000 bottles per hour, it is suitable for high-demand operations. The system allows for quick adjustments to handle different bottle sizes and formats, enabled by easily replaceable return gas tubes. Available both as a standalone unit or integrated with a bottle rinser, it provides flexibility for various production needs.

Bottle filler for beer and soft drinks in glass bottles

<span style="font-weight: 400;">One of the biggest challenges when bottling beverage drinks is that many of the bottles are of different sizes. This often means that the bottle openings range in thickness or size make the bottling process difficult to achieve. Thus, you need a fast, hygienic, and accurate solution to bottle beverage drinks that have a range of different characteristics.</span>


<h2>Automatic system for filling and capping bottles and rigid containers</h2>
<span style="font-weight: 400;">The RF-25 8/4 by Dosimaq is the perfect solution for filling and capping bottles and rigid containers with narrow mouths for liquids and beverages such as juice and milk.</span>

<span style="font-weight: 400;">With the help of an intermittent rotary unit with a star plate with 8 dedicated stations for container movement powered by a conveyor for pulling the containers into the star plate, this system can comfortably fill up to 2,000 containers per hour.</span>

<span style="font-weight: 400;">Moreover, the unit is equipped with 4 pumps and impulse generators allowing the operator to select dose size from the touch screen control panel attached to the system.</span>

<span style="font-weight: 400;">In the case of filling bottles with sparkling liquids, the automatic nozzle elevation system can be adjusted to fill the bottom of the container in order to preserve product quality and prevent fizz and spillage of the product on the conveyor.</span>

<span style="font-weight: 400;">Furthermore, the unit facilitates 4 independent anti-drip nozzles for liquid products with easy-install washing collectors, making the cleaning of the unit easier.</span>

Automatic bottling machine for beverage

In an industrial setting where efficiency and consistency are crucial, particularly in the beverage industry, bundling and shrink-wrapping bottles can be a time-intensive process. Challenges often include maintaining speed without sacrificing quality and ensuring minimal downtime for maintenance.
<h2>Automates bundling and shrink wrapping</h2>
The MS560 by IMA is a high-performance system designed for bundling bottles or cartoned bottles and shrink-wrapping them with PE film. This equipment ensures efficiency, ergonomics, and ease of use. Its servo-driven technology allows for accurate product handling at speeds up to 40 cycles per minute. The system is built ergonomically to maximize accessibility, facilitating cleaning and maintenance procedures. Optional features like an automatic film splicing device can further eliminate reel change times, enhancing operational efficiency. This compact system also boasts tool-free size changeovers in just 5 minutes, pneumatic quick release reel spindles, and a transparent window with internal lighting for easy inspection of the T600 tunnel's heat chamber.

Bottle bundling and shrink wrapping system

High-throughput production lines in industries such as pharmaceuticals and food & beverage require precise, efficient bottle filling and capping processes to maintain product quality and meet regulatory standards.
<h2>Automates precise filling and capping operations</h2>
The ML611 by Marchesini is an automatic, intermittent motion solution designed for filling bottles with volumetric dosing or through Electromagnetic Flow Meters or Coriolis Mass Flow Meters. The safety norms have been followed, and it comes with the Œ mark. Its balcony design ensures a clear separation between bottle transport and mechanical areas, making it cGMP compliant. It can handle bottle sizes ranging from 30 to 90 mm in diameter and heights from 35 to 220 mm. Fast size changeover and adjustable conveyor speed enhance its flexibility. The machine can fill between 30 to 1000 ml depending on the dosing system and supports an output of up to 100 bottles per minute.

Bottle filler and capper

Top picks for bottling

Milk can be consumed as a stand-alone product (whole, low-fat or skim) or can be the starting point for food industry products such as cheese, butter, yogurt, condensed milk, and ice cream. In order to process milk and other dairy products, you need specialized dairy production equipment which then encapsulates different processes such as pasteurization, homogenization, and fermentation.

Dairy

Industrially manufactured soups gained traction in the 19th century when canning was invented and they have been warming us ever since. Whether it’s a classic ready-to-eat canned soup, condensed soup or a dry soup mix, soup manufacturing equipment for mixing, cooking, boiling, or sterilizing caters to every manufacturer’s production requirements.

Soup

A beverage is any kind of liquid or drink, usually other than water, made for human consumption. Beverages are further classified into two categories: alcoholic beverages and non-alcoholic beverages. Alcoholic beverages refer to liquids that contain 1% to 75% of liquor and are produced by fermentation such as wine, beer, or distillation such as vodka, rum, tequila. Non-alcoholic beverages are drinks that don’t have any liquor such as tea, coffee, fruit juices, soft drinks, and carbonated beverages. They can be produced premix or postmix, depending on the setup of your production line.

Beverages

Sauces bring personality to a dish. From a spicy, dense Zhoug to a tangy, runny Suero, sauces add an extra dimension of flavor, texture, and mouthfeel. But developing recipes into industrial products with long shelf lives and consistent tastes is a complex process. Specialized sauce making equipment prepares and combines the ingredients into delicious, high-quality foods. The result is a sauce ready to elevate meals.

Sauce

Spreads

Fruit pulp is a mass of pressed fresh fruit not meant for immediate consumption. Production of fruit pulp avoids wasting food and preserves the flavors and nutrient value of the fruit product. Processed fruit pulp is an ingredient in beverages, sauces, baby foods, jellies, smoothies, and bakery products.

Tradition and manufacturing procedures dictate the distinction between fruit juice, puree, and pulp. Still, naming and labeling are complex and depend on regulations, type of fruit, texture, consistency, preservation methods, and sugar or solid content (measured in Degrees Brix). Depending on your desired output, there are various fruit pulper machines for different stages of production that make the process quicker and more efficient.

Fruit pulp

<span style="font-weight: 400">Spice manufacturing is one of the world's oldest trading products. The word spice refers to any dried part of a plant other than the leaves and is used for seasoning and food coloring. Spices are made from dried barks, roots, berries, and twigs, while green leafy parts of plants are considered herbs. Well-known examples include cinnamon, chilies, star anise, ginger, garlic salt, turmeric, cumin, or pepper, as well as pre-mixed blends such as Masala, Five-Spice Powder, or Old Bay.</span>

Spices

The most important part of a capsule is its contents. But if the shell is not carefully made, the dosage ingredients inside lose effectiveness. From molding to sizing, capsule manufacturing equipment forms perfectly-matching husks ready for filling. The simplicity of encapsulation revolutionized pharmaceuticals since it was introduced in the 19<sup>th</sup> century. However, capsules are changing to increase delivery efficiency and reduce the dependency on gelatin.

Capsules

Among all dosage forms in use today, tablets constitute the most common one. They are pharmaceutical solid dosage forms containing active ingredients and excipients such as diluents, binders, glidants, and lubricants. Using tablet making equipment, these solid dosage forms are made by compression of granules or powder blends and then shaped by molding.

Tablets

Parenteral preparations refer to drugs using non-oral means of administration. Injectables, such as needles and syringes, are used to deliver a drug into the systemic circulation directly in the veins, muscles, under the skin, or in the tissue.

These parenteral formulations are pharmaceutical dosage forms that have strict regulations on being sterile, pyrogen-free, and free from visible particulate matter including reconstituted sterile powders. Solutions, suspensions, emulsions, and gels with APIs intended for administration by injection are usually supplied in vials, ampoules, pre-filled syringes, or pens to facilitate ease of use.

Injectables

Although not all women use makeup every day, almost all of them own at least one makeup product, be it lipstick or face powder. Most makeup products share the same basic ingredients of waxes, oils, and fillers with pigments like iron oxide used for colors and shades. Makeup manufacturing equipment includes pulverizers, mixers, and mechanical press machines to produce cosmetic products in different forms such as powder, liquid, or mousse.

Makeup

Ancient civilizations discovered that plant extracts were useful for the treatment of pathologies. The origin of plant extraction cannot be specifically verified, but we can infer that the earliest attempts at plant extraction were more intuitive than scientific. Today, the extraction of compounds is a precise process with plant extraction systems complimenting traditional knowledge.

Plant extracts

Essential oils are known as the liquid gems of nature. The sweet-smelling essences impact not just our senses but also our biochemical and cellular make-up. Besides aromatherapy, the products of an essential oil extraction system found applications in pharmaceuticals and foods.

Essential oil

Eating is more than just nutrition, but we have found ways to increase the nourishing power of our foods. Nutraceuticals manufacturing, from vitamin C powder and probiotics to omega 3 oil, is a concentration of natural ingredients and health supplements that complement our diets. While dietary supplements are not quite haute cuisine, the process of extraction and purification is no less a blend of science and art.

Nutraceuticals

<p class="filterable-grid__description">Liquid dosage forms are designed for easy absorption. The body quickly carries the active ingredients through the system and triggers the required response. But the greatest advantage of this medicinal type is its flexibility in formulation and dispensation. From lotions and syrups to drops and sprays, liquid solutions can be adapted to different administration routes including parenteral, topical, and oral. The fundamental liquid dosage manufacturing process involves dissolving or suspending solutes in a fluid. But that is not enough. A precise blend of excipients is needed to make the medicine go down.</p>

Liquid dosage forms

Detergents are cleaning agents that help remove dirt and grease from porous and non-porous surfaces. Industrial production of detergents began after World War I. Still, it was after the 1950s and 1960s that the detergent industry grew exponentially due in part to the development of new detergent manufacturing equipment.

Detergents

Edible oils are fats that you can extract from various plants and animal tissues. The most popular sources are olives and sunflowers. You can use them for different cooking techniques, such as frying, baking, and other methods. Manufacturers are now finding ways to extract oils with a higher natural fat content efficiently using edible oil extraction machines.

Edible Oil

Liquid

Spirits are an expression of their combined surroundings. Everything that goes into producing a liquor bottle leaves a unique mark on the final product. So, liquor making machines are a particular equipment category in the food and beverage industry. Every detail in their design can be tasted in the spirit’s flavor, texture, or aroma. Next time you allow yourself to a tipple, raise a glass to technology.

Spirits

Gummies, a staple in the confectionery industry, can come in various forms, such as gummy bears, vitamin gummies, heart-shaped jellies, and many more mouth-watering alternatives. They are manufactured using specialized equipment for mixing, molding, coating, and packaging. From precise mixers to efficient packaging lines, industrial gummy production relies on a range of equipment to ensure consistent quality and meet consumer demand worldwide.

Gummies

Milk

Syrup

Bottling equipment draws a measured quantity of your drink, food, or formulation from a holding tank and fills it into bottles. These bottles usually need to be checked, capped, labeled, and sealed for distribution. Bottling solutions differ in product metering system, sterilization level, and bottle type and sealing system depending on your production scale and product format and regulations. Bottling systems are utilized in a variety of industries. For example, in the food and beverage industry as well as in cosmetics and pharma.

Continuous

Industrial

Before bottling wine, significant amounts are used to rinse the plant, including pumps, tubes, and fillers. This generates waste that could be reutilized, reducing both product loss and environmental impact.
<h2>Collect and reuse rinse wine efficiently</h2>
The R.W.S. (Recovery Wine System) by INNOTEC (Omnia Technologies) enables the recovery of wine used for rinsing in pre-bottling phases. The system stores the rinsed wine in a holding tank, which is capped with inert gas to maintain integrity. This wine is then dosed back into the production line with high precision, controlled by the dosing pumps' pressure management. It interfaces seamlessly with C.I.P. and micro-filtration systems, automating production and washing operations. This solution effectively reduces oxidative matter and ensures precise dosing proportional to the production batch.

Wine recovery system for bottling processes

Bottling

When looking for capping equipment, it is crucial to know first which type of capper your product requires. Do you want screw caps, twist-off caps, hand pumps, or push-pull caps on your bottle or container? If you require different cap types for format changeover times can be time-consuming. The bottle cap seals the top opening of a bottle to guard the product against leakage and spoilage and sterility and filling requirements depend on the nature of your product.

Capping

Industrial cleaning equipment is used to wash or disinfect machinery and the production/warehouse area. It may also be used to sterilize the product, equipment, tools, floor or work surfaces and to purify or clean the product by removing impurities. Choosing a suitable cleaning system depends on the type of product or equipment to be cleaned, the sensitivity of the product to heat, pressure, and chemicals, and the level of sterility desired.

Cleaning

Dosing systems are a line of hoppers, feeders, filling machines, and checkweighers that operate in sync to dispense materials accurately. Dosing is an essential feature of the packaging process, whether you’re filling shampoo bottles or tea bags. But dosing equipment is critical for formulations, too, particularly in the pharmaceutical and chemical industries. Imprecise dosing may cause quality degradation in the best-case scenario. In the worst scenario, it creates serious health risks.

Dosing

Industrial filtration equipment separates solid matter from liquid by using a filter medium. The filter allows only the fluid to pass through but retains the solid matter. The choice of filtration equipment depends on the particle size, the consistency of the mixture, and the nature of your product.

Filtration

Purification is the removal of contaminating substances and by-products to increase the level of purity of the desired substance. Considerations for choosing a suitable purification system in the industry, include the physical state of the mixture, the desired product, required level of purity, the type of mixture, heat sensitivity of the product, number of purification steps needed, and the production volume. Industrial purification systems are used for the production of pure water in the food pharmaceutical and biotech industries.

Purification

Recovery

Rinsing

liquid

Maintaining consistent carbonation levels in beverages is crucial for achieving the right effervescence texture before bottling. Precise CO2 dosing can be complex, especially with varying product flows during the bottling process.
<h2>Ensures precise Co2 dosing and fine effervescence</h2>
The CARBOX by Innotec (Omnia Technologies) is an automated CO2 dosing system designed for beverage bottling. It utilizes a microporous membrane for dosing, ensuring fine, persistent effervescence without creating turbulent flows. This system calculates the exact CO2 amount automatically, adapting to variable flow rates during bottling. For higher dosing requirements, the product is stabilized in an autoclave to ensure complete gas dissolution. The process is monitored inline using high-precision instruments to meet the desired parameters. The system's AISI 316 stainless steel structure allows for easy washing and sanitization, compatible with C.I.P. and micro-filtration systems. Full process traceability is ensured, with the option of integration with coolers.

Co2 dosing system for effervescent beverage bottling

Complex processes call for continuous tracking and monitoring systems that help you to keep the manufacturing operation under control. The technology analyzes the components in the production phase for divergence in behavior or changes in conditions. Based on advanced software applications, monitoring platforms make sure that your products satisfy the quality criteria while they are being developed.

Monitoring

Pharmaceutical manufacturing often demands precise and efficient bottling processes, especially when handling tablets and capsules. Challenges such as counting accuracy, safety, and maintaining product integrity are paramount and require a system that can handle multiple tasks within a compact space.
<h2>Efficiently manage bottle transport, filling, and capping</h2>
The MINILINE by IMA is an integrated counting system designed for comprehensive bottling operations. This compact solution integrates desiccant insertion, tablet or capsule counting, cotton insertion, capping, and induction sealing. It is configurable for various products and container requirements, ensuring quick format changes and immediate start-up at the desired production speed. The GMP-compliant design facilitates easy cleaning and excellent visibility, reducing risk of contamination. With its reduced energy consumption, the MINILINE is efficient and space-saving, fitting within a fraction of the space occupied by traditional equipment.

Integrated counting system for tablet and capsule bottling

Counting

Filling lines are used extensively in all industries, such as food, pharmaceutical, chemical, and cosmetics, to accurately package different products into a container suitable for that product. Although the filling process is at the very end of the production line, it is no less important than the earlier steps. Last but not least, the idiom that dates back to 1382 when John Wyclif wrote the firste the laste, and the laste the firste, indicates just that the last things on a list are just as valuable as the previous ones. In this case, this idiom fits perfectly.

Filling

Sealing

solid

When producing a large quantity of bottled beverages, maintaining high efficiency, reliability, and minimal downtime is crucial. Challenges include ensuring consistent filling, sealing, and labeling while preventing contamination and oxidation.
<h2>Fill, seal, and label with precision</h2>
The GAI Macchine Imbottigliatrici bottling lines are designed to cater to a wide range of beverage industries, from wines and spirits to oils and beers. These systems handle up to 20,000 bottles per hour, offering extensive customized options for filling, rinsing, deaeration, capping, and labeling. The machines are optimized for high efficiency and low maintenance, utilizing both mechanical and electro-pneumatic operations. Specialized features like the 'Unica' electro-pneumatic spout for sparkling wines allow for automatic level adjustments and precise filling. The use of inert gas at various stages ensures the oxidation of beverages is minimized. The family of machines also boasts advanced sterilization capabilities, integrated vacuum corking, and secure labeling techniques, suitable for various bottle shapes and sizes. Designed by GAI Macchine Imbottigliatrici, these lines provide scalable solutions to meet both small-scale and large-scale production demands.

Complete bottling lines for beverage industries

Deaeration

Labels provide customers with important information about both your product and your brand. Different labeling technology attaches the printed film to the packaging using a range of methods such as shrink wrapping, side sealing, and adhesives. For added traceability and protection, you may also use serialization coding equipment and anti-tampering labeling systems.

Labeling

Industrial sterilization processes are employed in different industries to completely eliminate all living microorganisms from the final product. For instance, in food processing, sterilization equipment is used to produce a stable product with a long shelf-life by eradicating harmful bio-contaminants. Instead, in the medical field, sterilization technologies aim to prevent the transmission of microbes to patients by sterilizing all the tools and medical devices that come in contact with the patient. Most sterilization equipment, such as autoclaves, employs high-temperature pressurized steam to destroy bacteria and disinfect surfaces from spores. Other methods include radiation sterilization or using chemicals such as hydrogen peroxide for disinfection.

Sterilization

For beverage manufacturers, ensuring that bottles are properly and securely capped is crucial. Challenges such as inconsistent sealing or equipment downtime can disrupt production and lead to product wastage and consumer dissatisfaction.
<h2>Automates capping processes with precision</h2>
The screw capping systems from Della Toffola (Omnia Technologies) provide reliable and precise capping solutions for beverage production lines. Available in two versions, these systems cater to different capping needs. The PPV version, designed for pre-threaded plastic screw caps, features a 'Pick&Place' system. It includes magnetic friction heads to adjust the closing force accurately. The VA version, suitable for aluminum screw caps, utilizes 'direct pick' replicas and stainless steel closing heads with rolls to seal the caps securely. Both systems are equipped with a continuous cap distributor and a 'no cap' sensor to ensure uninterrupted operation. The option of a neck holding system is available for treating PET/PE/HDPE bottles. The capping heads will not release a cap if no container is present, enhancing efficiency and reducing waste.

Screw capping systems for bottling lines

In bottling lines, ensuring precision and high-quality labeling while minimizing downtime and maintenance is crucial. This is especially relevant for industries producing beverages, food, cosmetics, and chemicals, where packaging efficiency directly impacts productivity.
<h2>High-precision labeling with ease of use</h2>
The CG 80 Series from Cavagnino & Gatti is a compact self-adhesive labeling system designed for high precision and quality packaging. Managed by a reliable electronic system and efficient mechanics, it ensures accurate application of labels with minimal maintenance. The labeling units, RPS and XPS, can process up to 3,000 and 4,500 bottles per hour respectively. The system can be equipped with various orientations and an automatic synchronised system for capsule spinning or shrinking. Its user-friendly design makes it suitable for integration into any bottling line, including mobile setups. The CG 80 Series also offers an ergonomic design that allows seamless addition of wet glue labeling units for combined functions.

Self-adhesive labeling system for bottles

Packaging

In the wine bottling industry, maintaining the original organoleptic properties and ensuring extended shelf-life are critical concerns. Oxidation can lead to a decline in wine quality, impacting taste and longevity. Additionally, avoiding microbiological contamination and protecting against all possible contaminants are essential for maintaining product integrity.
<h2>Ensure stable and contamination-free wine bottling</h2>
The no-oxygen filling system by Gruppo Bertolaso is designed to address these concerns by implementing processes that prevent contact between the wine and ambient air throughout the entire bottling cycle. This system features a newly conceived filling valve that offers the benefits of counter-pressure fillers but at significantly lower costs. Suitable for still and slightly sparkling wines, these fillers use advanced technology to ensure maximum stability and protection against oxidation and microbial contamination. With over 100 years of experience, Bertolaso integrates this technology to achieve minimal oxygen pickup, thus preserving the delicate balance and unique characteristics of fine wines.

No-oxygen filler for wine bottling

Batch

Cognac, brandy, whiskey and other luxurious spirits often come in uniquely branded packaging designs marketed as gifts for special occasions. These luxurious designs' size, shape, folding, or flap closing can be complex and require precise packaging solutions for a high-quality finish.


<h2>Precise carton folding and packing for luxurious bottles</h2>
The MAESTRO Cartoner, from Mpac, is an automated carton packaging system specially designed to pack spirits such as whiskey or cognac. The system provides gentle product handling and is available with a dedicated infeed system to accommodate a wide range of carton sizes and special custom packaging. Processes in the system include precise carton erecting, loading, transportation, and closing. The unit has an open flap detection and automatically rejects any unclosed packaging in the process. Production capacity can go as high as 500 cartons per minute for the MAESTRO-c model and 100 cartons per minute. The system is equipped with lockable door switches for safety and Intelligent Machine Interface for information on machine status and changeover procedures.

Bottle Cartoning Machine for Spirits

Cartoning involves erecting a folded carton, filling it with the product, closing the flaps, or applying a lid and sealing with glue or adhesive tape. Choosing a cartoning solution involves, considering the type of primary packaging, the production volume, the size and count of the product in a carton, and the desired level of automation.

Cartoning

<span style="font-weight: 400">At last, you reached the final stage of processing your product - welcome to the packing world! Packing preserves and protects a product from damage, spoilage, and contamination while it makes its way from the production line to the consumer or further production. Depending on which industry your products belong to, the type of primary packaging equipment can change drastically. You need to pay careful attention to products with </span><span style="font-weight: 400">chemicals or hazardous substances since they can be potentially dangerous to human health. </span>

Packing

When you pack your products in bottles, vials, syringes, and test tubes you need to wash them before filling them up. This procedure is done to make sure that your containers are free from dust and other particles that may contaminate the product. Thorough cleaning of containers requires water with sufficient pressure to flow and clean every part of the container's interior.
<h2>Washing internal parts of bottles, vials, and syringes using interchangeable nozzles</h2>
The Bottle Washer, from Adelphi, is a bottle-washing system for containers with neck diameters between 9.5mm and 100mm. It features powerful water jets to clean every part of the container inside. The unit can be connected directly to the main supply or on a stand with a pipe connected to a tap, whichever is more convenient. It also requires water with a pressure not exceeding 2 bar. Production capacity can go as high as 900 containers per hour.

R&D bottle washer

Industrial washing systems are used to clean and disinfect a variety of items in research and manufacturing facilities. Industrial washers use solvents and cleaning agents with mechanical action to remove deposits and residues from stainless steel machinery components, empty containers, and other soiled surfaces. The selection of an industrial or commercial washer depends on the type of items and surfaces to be cleaned, the type of deposits/residue that is typically present, whether drying is required after rinsing and the level of sterilization necessary. Manufacturers will have cleaning specifications and as a result, require washers to be engineered to meet these specs.

Washing

When you are a small-scale producer of liquids contained in bottles with press-on lids and caps you need capping machines to ensure constant cap pressure and a leak-free output. Adapting to different bottles and caps can also become an advantage.
<h2>Pressing caps and press-on lids through a pneumatic operation</h2>
The Pneumatic Cap Press from Adelphi is a pneumatically operated capping system for plastic and glass bottles with diameters ranging from 22 to 85mm. The system features an adjustable height of up to 240mm with depth adjustments to accommodate a wide range of bottle shapes and sizes. The press pads are custom-made to suit the shaped caps used by the customer. The unit is made from hygienic anodized aluminum and stainless steel for durability and long service life. The system produces an approximate output of 6 to 10 bottles per minute.

R&D bottle cap press

Impurities like hair, fibers, or glass, sourced from the environment, equipment or packaging can contaminate your liquids and solutions in cosmetics, pharmaceuticals, and more. Likewise, the product formulation process itself may lead to some unintended contaminants like proteinaceous particles, silicone droplets, or inorganic precipitates. A testing technique incorporating special lighting will provide you an optimal solution for the particulate examination of liquids in transparent glass containers.
<h2>Detect impurities and visible particles in ampoules, vials, and transparent glass bottles</h2>
Apollo II Dimmable Liquid Inspection Unit from The Adelphi is an easy-to-use system designed for the inspection of visible particles in transparent glass containers. It can effectively detect any visible particulate contaminants like hair, fibers, glass, proteinaceous particles, silicone droplets, or inorganic precipitates in transparent glass bottles, vials, and ampoules. The lamp unit installed has a light level between 1,200 and 3,500 Lux, adjustable by dimmer control, depending on the light in the room. The intuitive assembly is simply operated by swirling the container under inspection, in front of both panels, light-colored particulates will be visible in front of the black panel, while dark-colored particulates will be visible in front of the white panel. Bulbs are rated to have a high service life of 50,000 hours, which would be more than 17 years when used in an 8-hour shift.

Laboratory liquid viewer for transparent glass bottles

Industrial inspection equipment is used for checking compliance with health, safety, and quality control standards. For that reason, inspection systems are most commonly utilized in the food and pharmaceutical industry but, they are also used in other industries too. Inspection solutions are often integrated into a production process or production line. Visual inspection systems perform checks to detect variation in size, shape, and color and ensure the presence of labels and closures. Check-weigh systems help ensure that product packages are not under or over-filled. Metal detection systems can help guard against the presence of foreign objects in product containers and X-ray inspection equipment is used to detect physical defects and to ensure high quality package seal integrity.

Inspection

In the pharmaceutical industry, an inspection to detect any particulate contamination in solutions contained in colored glass bottles is not so easy to perform without special lighting. To improve impurity detection rates in such products, the European Pharmacopoeia Commission recommends measures like extended inspection times and the use of higher light intensities for testing. Your research laboratory will benefit from an effective non-destructive testing method implementing these techniques.
<h2>Detect particulates in opalescent solutions using a unit with light intensities higher than 3750 Lux</h2>
Apollo II High-Intensity Liquid Inspection Unit from Adelphi is an easy-to-use system designed to effectively detect particles in colored glass bottles, vials, and ampoules. It is fully compliant with the European Pharmacopoeia Specification 2.9.20 &amp; US Pharmacopoeia USP chapter 41 (1790), section 6.1. It has an updated lamp unit with three LED bulbs having a light level of 8,000 to 10,000 Lux, and light intensities higher than 3750 Lux. The inspection time of more than 5 seconds in front of both panels gives optimum visual detection rates. Light-colored particulates will be visible in front of the black panel, while dark-colored particulates will be visible in front of the white panel. The optimal system design provides for height and angle adjustment to allow for greater operator comfort. Bulbs have a high service life of 50,000 hours, which would be more than 17 years when used in an 8-hour shift.

Laboratory liquid viewer for colored glass bottles

Spillage and overfilling are common problems in most production lines for bottled products. A good solution to minimize such waste is to have a single system that can both fill the precise amount of liquid to the containers until the desired net weight is reached, as well as perform the capping of the bottled product.
<h2>Filling and capping bottled containers with load cells for net-weight filling</h2>
The Rotary Monobloc from Rejves machinery is a compact two-in-one system that can perform both filling and capping of bottles through rotary mechanisms. This system can be equipped with various filling technologies available for a precise filling process such as net weight, flow meter, level filling, and vacuum filling. This makes the system suitable for most industries and applications, including food and cosmetic products. A notable feature to reduce cap waste is a bottle detection system that prevents the capping section from supplying caps if no bottle is detected. An optional feature provides a rinsing section using water or ionized air. Production capacity for this system can go as high as 620 bottles per minute.

Bottle filling and capping monobloc

New ways of packaging products are popping up all the time on the market. These new types of packaging, such as display tray with a lid, allow manufacturers to keep up with the latest market trends, make the product more appealing to customers and at the same time save cardboard and reduce costs.


<h2>Pack your products in wraparound, shrink-wrap, and tray with lid packaging</h2>
The Multifunction system provided by Baumer is an all-in-one complete packing system capable of wraparound carton packaging, shrink wrapping, and other special functions such as providing special lids or covers in combination with trays. With its wide array of formats, this system can provide packaging that is ready for display at retailers or stores. The system also features touch screen panel controls that can change the configuration of the production.

Multifunction case packer for bottles and jars

Wrapping is the final step before your finished products are ready to leave the manufacturing site. Packages are bundled tightly together with a low-density polyethylene wrapper to secure the goods inside during transportation and distribution. Automatic or semi-automatic stretch wrapping machines cloak the palleted load in expandable film at high speeds and precision.

Wrapping

During a shrink-wrapping process, a change of reel can slow down the production cycle as manual intervention is required. A system that automatically changes the reel after it has been used to the end, makes it possible to continue working without interruptions, even without an operator present.


<h2>Shrink wrap PET bottles while eliminating any waste of film</h2>
The Shrink wrapper from Baumer is a highly versatile and configurable shrink-wrapping system fit for most production requirements. Products can be shrink wrapped with film only or a combination of pad and film or tray and film. The system also features a green tech tunnel that helps save energy. Other features include automatic reel changeover for less interruption in production and touch screen panel controls for product packing configuration. Apart from smoother operation, automatic reel change lets you reduce film waste, which is usually generated when the photocells detect the end of the reel. Speeds can also be adjusted and go as much as 200 cycles per minute.

Shrink wrapping machine for PET bottles

When it comes to beer packaging, most of the manufacturers use plain box cartons. Being able to produce something as unique as custom-shaped cartons with an appealing design is ideal for satisfying customers and following the latest trends in the market.


<h2>Packing products into wraparound packaging, display and tray cartons</h2>
The Baumer Wrap-Around is a carton packing system designed to pack bottles or cans into display cartons, tray cartons, and wrap-around cartons - those can be regular or custom-shaped, with a convenient plastic free handle for easy transport. It has an external cardboard magazine with an ergonomic position for effortless loading of the operator. Besides, the system has a patented three-arms pickup system using suction cups for easy pickup of cartons of varying thickness. The controls are done through a touch screen panel with production data and information on machine operation. It permits format changeovers allowing changing configuration in seconds and can be selected from the operator panel, making the machine automatically set up for new products. The production capacity can go as high as 80 cartons per minute.

Wrap-around case packer for cans or bottles

Medicines in tablet, capsule, or soft gel forms undergo various processes before reaching the consumer. Of the steps involved in production and packaging, automatic visual inspection and accurate counting with filling are essential to meet quality standards and specifications. Since separate equipment for each process step adds high costs, multi-function machines are much better in this regard.
<h2>Automatic Inspection and Bottle Filling of Capsules, Tablets, and Soft Gels</h2>
Spine Fibo by Sensum is designed to ensure accurate automatic visual inspection, sorting, counting, and filling of tablets, capsules, and soft gels. Products are conveyed through an optical system, which can perform a 100 percent visual inspection of each product using several cameras. During the inspection, products are counted for the first time. After inspection, defective products are rejected, while only good products are counted again with an additional optical system and then filled into bottles. Another advantageous feature of Spine Fibo is that it uses no flaps at bottle filling. With such double counting and no-flap system, the machine ensures high accuracy in counting and reduces risks of defective products getting to the market.

Spine Fibo can handle smaller and bigger bottles, and no formatting of parts is required for bottle changing. It can identify many defects like foreign products, size variations, thickness variations, lamination, engraving defects, coating problems, chips, cracks, dots, dents, bubbles, variations in prints, and texture. This equipment can inspect pharmaceutical products like plain, coated, and multi-layer tablets, opaque, bi-color, transparent capsules, and a large variety of soft gels. In addition, defective samples are not required to train the system.

High speed bottle filler with inspection

Industrial separation equipment encapsulates the separation process which is to separate components of a liquid mixture, for recovering dissolved solids from liquids. The choice of a suitable technology depends on the identification of the key physical or chemical property, such as size, mass, density, or boiling point, which sets the product of interest apart from the rest of the components. Separation technology is widely used in the pharmaceutical and chemical industries for the isolation of active ingredients and high-purity chemicals. As well as in waste management and recycling industries.

Separation

To ensure product quality and freshness in the drink industry, capping is a very important step. Sometimes during the capping phase, products are rejected due to defective caps causing delay in the production line. To avoid jams along the line, it’s helpful to inspect bottle caps with a machine before they enter the capping process and not when they are being capped.


<h2>Artificial vision system to inspect cap quality before capping phase</h2>
QT730-VA is an inspection system for cap quality manufactured by FTsystem using artificial vision technology. The system is available in different configurations based on the caps to be checked. The artificial vision provides a high-level quality control thanks to industrial cameras that, with the help of direct analysis, gathers information about cap defects. In QT730, caps are introduced and positioned in the star wheel via the integrated chute. As the wheel rotates, caps pass one by one under the camera that analyses them. The camera is able to detect for example overturned caps, ovalization, deformation, security ring or sealing ring defect/absence and contamination. Based on the caps and the inspection, in the standard configuration more cameras could be implemented. This particular version is recommended for flat caps, for caps that have an irregular upper surface like sport caps and for shaped caps.

Inspection machine for bottle caps

Industrial measurement equipment is used as a crucial step before products leave the production line. These measuring instruments check for correct dosage and standards. Equipment for measurement and control employs a wide range of technologies to detect inconsistencies in volumes, sizes, weights, and fill levels as well as to inspect goods for quality against a set of criteria. Specialized measuring tools allow you to minimize the probability for error to its lowest possible, ensuring that both products and packaging meet your benchmarks.

Measurement &amp; Control

It seems logical to implement a quality inspection of bottles and spot any imperfections or contaminants before the filling process starts. Such an inspection machine will prevent unnecessary waste of the content of the bottle and avoid jams in the production line, this saves both time and money.


<h2>Accurate and complete inspection system for containers before filling</h2>

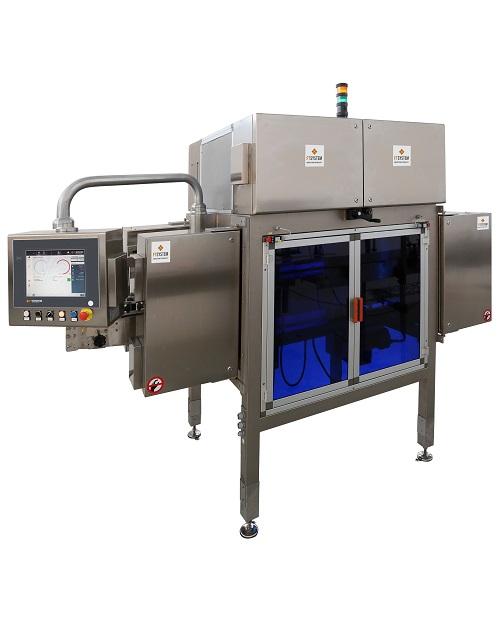

IV1000 is an inspection system designed by FTsystem to ensure a good quality of empty containers using artificial vision technology. The artificial vision provides a high-level quality control thanks to industrial cameras that, with the help of direct analysis, gather information about bottle defects. IV1000 is able to detect bottle shape, glass defects, damaged containers, scratches and bubbles (neck and thread inspection), holes, deformation and presence of foreign bodies, washing liquids, or dirt. Multiple cameras are located throughout the system (from the inlet to the outlet) to inspect every part of the bottle (neck, thread, and bottom). For a fully and meticulous inspection, the machine is provided with motorized belts that rotate every bottle 90 degrees to check bottle sidewalls. The production speed of IV1000 is up to 60,000 bottles per hour.

Empty bottle inspection machine

Pharmaceutical packaging industry requires the ability to quickly manage the process yet achieve efficiency. Having a reliable bottle unscrambler can assure your pharmaceutical plastic bottles are prepared faster for the next step in the packaging process, which helps to reduce production time, save costs, and increase the overall output.
<h2>Effective packaging solution for pharmaceutical bottles</h2>

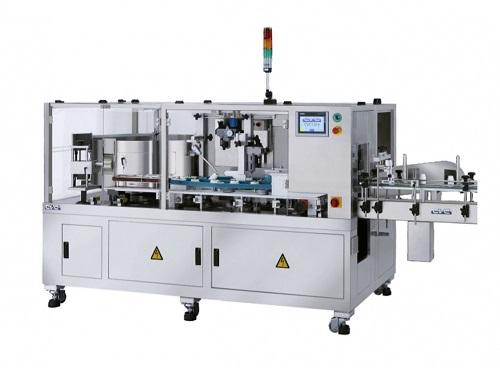

The CVC’s 1266 Bottle Unscrambler is a variable packaging solution developed to automatically feed empty plastic bottles from a bin and place them on a conveyor. The empty bottles are received in bulk which are then lifted and deposited. The unscrambler orients, processes, and positions the bottles onto a moving conveyor for further downstream processing. The machine can handle up to 200-250 empty bottles per minute, either running independently or being integrated into an automated packaging line.

The Pharmaceutical bottle unscrambler is equipped with a Human Machine Interface (HMI) panel, which accelerate the working process. The machine can also be equipped with ionized air rinse assembly, sensors to detect upside down bottle, fallen bottle reject assembly, sensors to check hopper level, tower lamp and static eliminator bar.

Pharmaceutical bottle unscrambler

A loading system feeds your continuous or batch processing machine with the specified material or item in line with the flow of production. Loaders transfer the articles from one stage of preparation to the next with uniformity and accuracy.

Loading

<span style="font-weight: 400;">Autonomous filling systems are a very widely utilized solution for the consistent output of large quantities of products due to their great level of output and minimal level of human supervision required which in turn, makes it cost-efficient. </span><span style="font-weight: 400;">In case of supplying a range of products with dramatically different characteristics like size, accuracy of filling required, speed and volume of filling, such units prove to be a highly beneficial addition to any business as they can meet the requirements for a range of different products such as fizzy drinks and juices.</span>


<h2>Autonomous filling system for low viscosity liquid products</h2>
<span style="font-weight: 400;">The ECL 300 by Dosimaq is specifically designed for the packaging of liquid or low viscosity products such as fruit juice, milk, and others.</span>

<span style="font-weight: 400;">This system is fitted with a  magnetic measure gauge filling system and an elevator for volumetric pistons which fill the packaging from the bottom. This is especially useful for the packaging of foaming products.</span>

<span style="font-weight: 400;">The control panel on the ECL 300 is equipped with a system that can electronically regulate the filling volume for each package. Furthermore, this unit also offers the advantage of filling the product at three different speeds which helps in avoiding spilling when pouring.</span>

<span style="font-weight: 400;">Equipped with a rotary monobloc closing unit with 8 workstations, the unit can easily reach a production rate of up to 5,000 packs per hour and change the toolset for the packaging of different pack formats and conveyor belts specially designed for a range of packaging designs.</span>

<span style="font-weight: 400;">The closing unit is easily changeable and adaptable to different cap formats by a pneumatically adjustable screw.</span>

Linear automatic bottling machine for liquids

It is vital to have precise and long-lasting labels on bottles to avoid any accidents or overdosage. Labels on these bottles are constantly exposed to liquids and everyday handling; therefore, they require special care so that they can stand up to the challenge of remaining intact even after rough use.
<h2>Precise and reliable self-adhesive labeling</h2>
The ETIMA  MLP-3000 is built to provide longer-lasting self-adhesive labeling on various containers, including oval, flat, and cylindrical surfaces with complete precision, and to meet different labeling requirements such as partial position labeling or full-body labeling. Whether they are made from glass, tin, or plastic, the MLP-3000 easily ensures self-adhesive labeling for all materials.

This labeling machine can be formatted to deliver a maximum output of 5,000 containers per hour. Designed with NOVEXX labeling heads and a centering system knows as the ORBITER, this labeller delivers an exceptional performance, even at incredibly high application speeds. Lastly, MLP-3000 is specifically designed for the pharma, chemical, food, and personal care sectors.

Self-adhesive linear labeling machine for bottles

Polyethylene terephthalate (PET) and glass bottles are widely used in the beverage industry as well as in labs. Since it is more ecological to wash bottles than recycle them, mineral springs, breweries, and soft drink bottlers or manufacturers use industrial bottle washing machines to clean PET and glass bottles. However, bottle washing is a task that demands the highest levels of product safety, sterilization and hygiene. Along with meeting sanitization requirements, it’s also essential that the machine uses water economically.


<h2>Clean and disinfect bottles in a cost-effective way</h2>
Designed with a low bottle discharge unit, automated conveyor and a low overall height, the Arcade GEL series cleaning system by GM Gera is ideal for washing bottles in an environment-friendly and economical way. The three models can wash up to 17,000 bottles per hour (BPH), 12,000 BPH, and 7,000 BPH.

With a compact design, the Arcade GEL series combines low space requirements with a high-performance. Their low height, coupled with low-built bottle discharge and infeed units, enable users to use them in a limited space.

Furthermore, all components are optimally designed to ensure high serviceability and durability. Boasting low heat consumption, low disinfectant carry-over proportion, and economical use of water, the Arcade GEL is able to meet the increasing demands of the beverage industry from both ecological and economic points of view.

Industrial bottle washing machine

Industrial disinfection equipment use antimicrobial agents to destroy microorganisms found on machines, floors, walls, and other surfaces. In industry, disinfection of machinery and the production area is important to prevent product contamination which may lead to spoilage and health hazards for workers and the consumer. The choice of industrial cleaning equipment depends on the level of disinfection needed, the sanitizing agent, the size of the area or objects to be treated, and the suitable method of treatment such as sterilization, pasteurization, exposure to ultraviolet light, or chemical fogging.

Disinfection

Users who prefer rigid storage over single-use pharma charge bags, require lightweight solutions for easy handling, especially when storing and transferring active pharmaceutical ingredients. The containers must clamp securely to equipment to ensure no powder loss or cross-contamination and make efficient use of space when stored.
<h2>Bottles for Convenient Storage and API Powder Transfer</h2>
Ezi-Dock pharma process bottles were designed to be used with Split Butterfly Valves. They have unique square design ensuring a more compact footprint per unit of storage in pharmaceutical and biopharmaceutical laboratories. Their filling and dispensing necks feature a standard 6-inch Tri-Clamp neck design that uses an injection-moulded adaptor to connect to laboratory equipment receiving the product.

These versatile containers are available in a variety of sizes including 15, 25, 30 and 40 litre capacity. Bottles are in individual cartons packed in quantities of 84, 60, 48, and 36 respectively for space-efficient storage. They are made of high-density polyethylene that is blow-moulded to comply with the U.S. Pharmacopeia standard.

API powders storage bottle

The essential objectives of containment systems are personnel protection and preventing the release of toxic or infectious material into the environment. Containment is also used to prevent a product or sample from contamination by the external environment. In the chemical and pharmaceutical industries, containment solutions are used to protect the personnel from the leaking of airborne particles of hazardous substances, as powders or liquids are handled or transferred during processing.

Containment

Almost all manufacturers will require industrial storage systems and solutions at some point during their production process. The raw materials that go into your products need dedicated storage solutions to protect them from spoilage and contamination before they enter the manufacturing cycle. Storage usually refers to particular storage space. For example, having enough warehouse storage. Or clearing out a production facility for more floor space.  However, in this case, we are referring to the equipment and solutions that make storage manageable and easier. Such equipment includes solutions such as storage racks, pallet racks and shelving systems. These are just some of many storage options available to manufacturers. Advanced technology facilitates the management of heavy duty and high density tank and silo systems by automating the delivery system and linking it with the rest of the production line.

Storage

Sterilization is an important process in the beverage industry to kill microorganisms. It is important to prevent the possibility of re-infection of the product due to an unsterilized cap. There is a need for a unique, tailor made solution for production halls constructed in a way that require conveying of single containers, crates or packages from one to another level.


<h2>Simple and effective vertical conveyors for sterilizing bottles</h2>
Petek Proces’s Vertical conveying solutions and Bottleneck steriliser are commonly used in hot fill project. They come with vertical conveyors which can be used for lowering, elevating or both functions. This solution also includes neck sterilisers which are commonly used in hot fill projects. It is mainly used after the product is filled and before it enters re-cooling tunnel. The container is twisted for sterilization to reach soaking of the bottle cap with pasteurized product and thus prevent the possibility of re-infection due to a not sterilized cap.

The Industrial bottle sterilizer is equipped with conveying belt made of rubbers applied to two chains that enable the lateral taking of the containers. It allows manual or automatic adjustment of width depending on the size of the containers. Its bottle inverter is equipped with its own electrical cabinet to enable control of your work. It can be used for the sterilization of bottles of beer, soft drinks, sauces, juices etc.

Industrial bottle sterilizer

Wet containers are unacceptable and can be problematic in the food and beverage industry.  A solution is needed to prevent the slipping or distortion of labels and dry surfaces where the production data is printed. As a result, there is a demand for a drying solution that makes production lines run faster, occupies less space, is cleaner, has more flexibility, and operates efficiently than ever before, making it ideal for products or packaging demands.


<h2>Save costs while efficiently and sustainably drying containers</h2>
Petek Proces’s Air Knife Drying System is configured as a monobloc system that can be integrated as a self-standing construction in your bottling line. It efficiently removes dust and moisture from a surface using a system of air knives and high-speed centrifugal blowers. It guarantees to provide you with sufficient quality and air pressure. It is powered by an electrical engine assembled with a high-speed centrifugal blower directly to the motor shaft, not belt-driven. Its electrical motor is equipped with a frequency controller, which enables precise setting of flow rate and air pressure depending on your containers and capacities. On the suction side, a filter is placed for the rough filtration of the air before entering into the blower.

The blower is installed inside a noise-proof box. Its state-of-the-art design makes it completely isolated, which allows it to work more quietly while also being more user and environmentally friendly.

The single line conveyor belt is an important part of the air knife system for the bottling line. Input and Output openings can be tailored according to your content type or adjusted to your site’s existing conveyor concept.

Air knife system for bottling lines

Industrial drying machines are designed to remove moisture from your product. But the drying process must cater to variations in the state of matter and molecular structure of the input material. Industrial dryer technology exploits the modes of heat transfer (convection, conduction, radiation, evaporative cooling) to control the moisture content.

Drying

For metal contamination detection in finished products that are bottled, traditional solutions require a slow line speed due to sub-optimal sensor sensitivity. They are also often inflexible, incapable of being utilised for differing products contained in a variety of packing types and sizes. A custom-designed modern detection system allows for high line speeds while offering the flexibility to check a wide range of packaging types with fully-automatic rejection.
<h2>Flexible, high-speed metal detector for bottles, flacons and jars</h2>
The THS/FBB and THS/MBB metal detectors from Ceia offer the perfect choice for advanced metal contamination detection and rejection for pharmaceutical bottles, jars, flacons and similar container types.

Available in fixed or modular belt form to suit your requirements, the THS unit is ideal for multi-product or multi-package production environments.

Core to the units is the extremely sensitive THS detection. This high sensitivity allows for fast line speeds compared to traditional detection units. The detector offers enhanced shielding making it resistant to electromagnetic interference and able to perform in the most demanding production environments.

The belt system is digitally adjustable to maintain optimum throughputs, with fully automatic and verified rejection system. Both aspects are fully programmable from the easy to use control interface.

Designed for optimum reliability, the THS/FBB and THS/MBB systems are easy to maintain and inspect, with quick and easy access to all serviceable parts.

Built-in password protection, data logging and traceability features ensure complete compliance with FDA requirements.

The THS series includes a unique Auto-Learn system for pharmaceutical products. This allows automatic optimization of the detector to all metals with the maximum speed and precision.

Metal detector for bottles

Filling machines for pharmaceutical bottles must achieve high production speeds while maintaining hygienic-sanitary conditions. They should also provide high precision metering while being reliable with low maintenance costs.
<h2>Linear Filling Machine for Bottles</h2>
BRAM-COR FFIL filling machines for bottles benefit from linear hydraulic circuits that keep them steady while operating. Quality stainless-steel equipment ensures trouble-free operation, long-term reliability, and low maintenance costs.

The bottles feed through a sanitary belt to where a mechanical system positions them under the filling system. Slides bring down the filling nozzles to the mouths of the bottles. The design of the nozzles prevents foam-forming even at high filling speeds. The nozzles lift after filling as separators slide the bottles from the filling station.

Complete bottle lines can be achieved through integration with washing ma­chines, capping and crimping machines, labeling lines, and belt conveyors. Automated flow meters ensure greater than 99% precision. This allows accurate sterilization using pure steam.

BRAM-COR linear filling machines for glass or plastic bottles can accommodate 50ml to 1,000 ml size vessels. The maximum capacity is 12,000 bottles per hour.

Pharmaceutical bottle filling machine

Traditional bottle capping systems are inflexible, limiting the scope of your packaging and therefore product delivery. A modern, high-output machine that has been purpose-designed for rapid changeover to a wide range of formats will increase your efficiency by reducing downtime, as well as expanding your range.
<h2>Fully automatic high output capping machine designed for rapid changeovers</h2>
The Miray range of automatic capping machines from CMI Industries represents a new benchmark in automatic capping, thanks to fast and easy cap or bottle size change time.

The range features output rates from 1,800 per hour through to 18,000 per hour, allowing you to choose the perfect match for your requirements.

Miray systems can handle the widest possible range of plastic caps, including screw caps, press-on caps, oriented press-on caps, triggers, and dispensers. Brushless motor cappers give Miray the ability to convert between pump capping, screw capping and plugging, offering maximum flexibility.

All Miray are fitted with the patented ScrewMaster system. This automatically checks tightening torque and position over the bottle for fewer rejections.

Thanks to the use of electronic cams, maintenance is reduced to a minimum. For further protection, Miray is fitted with a programmed lubrication system.For even more flexibility, Miray is available in GMP and ATEX approved versions.

Automatic bottle capping machine

When filling glass bottles during beverage production, the cleaning and filling processes often leave residual moisture on the bottles and closures. This can compromise downstream processes such as labeling. A purpose-designed compressed air-free drying unit offers reduced running costs and increased throughput while offering superior drying performance.


<h2>Drying system for glass bottles</h2>
The JetTunnel system from Jetair Technologies is a high-efficiency drying solution designed specifically for the consumer beverage market. It uses powerful centrifugal blowers to feed high-speed air to specially designed air knives offering superior drying and fast throughput.

JetTunnel is a complete system that has been designed to drop into your existing line wherever it’s required - most often before the inspection and/or labeling process. Using a single-feed conveyor, it can completely dry up to 120,000 glass bottles per hour thanks to its air knife technology.

The arrangement of the air knives and the power of the centrifugal blowers is custom-designed for your requirements, making the JetTunnel a truly “drop-in” solution. Able to dry bottles of a wide range of sizes, shapes and materials, JetTunnel can be specified with a powerful motor of up to 90kW to meet your exact requirements.

The highly efficient blowers produce clean, filtered, oil-free air and use 70% less energy than the equivalent compressed air based drying solution.

Air knife dryer for bottles

Large-scale production of smaller volume bottled product needs a gentle, accurate yet high-speed unscrambler suited to the task. Traditional small format unscramblers can compromise on speed, so a dedicated high speed unit that can gently handle smaller vessels will increase line efficiency whilst maintaining quality.


<h2>High-speed unscrambler specifically designed for careful handling of smaller containers</h2>
The Lanfranchi Compact range of unscramblers has been specifically designed for the highest speeds and most gentle handling for containers up to 270mm tall.

Built in stainless steel and designed for minimal maintenance and continuous 3-shift use, the Compact unscrambler range can gently handle up to 64,000 bottles per hour using patented No Scuff Technology.

Vacuum powered output starwheel offers enhanced flexibility. No outer guide rail means changeover to different size bottles requires minimal intervention as bottles of different sizes can be accommodated easily.

Options are available from Lanfranchi designed to maximise output speed for lines which use particularly lightweight bottles (to minimise bouncing), or lower speeds using larger, more stable bottles. There is a COMPACT model and options available to suit all production requirements.

High-speed unscrambler for small bottles

Large volume plastic bottling plants need high-speed unscramblers suitable for larger plastic bottles. Large format unscramblers designed for speed can compromise on accuracy, increasing rough handling and damage, so a dedicated high speed unit that can gently handle large vessels will increase line efficiency whilst maintaining quality.


<h2>High-speed unscrambler specifically designed for careful handling of larger containers</h2>
The Lanfranchi Classic range of unscramblers have been specifically designed for the highest speeds and most gentle handling for medium to large size containers for beverages and soft drinks.

Built in stainless steel and designed for minimal maintenance and continuous 3-shift use, the Compact unscrambler range can gently handle up to 75,000 bottles per hour using patented No Scuff Technology. Automatic rejection of any damaged bottles (usually without stopping the machine) increases uptime.

Vacuum powered output starwheel offers enhanced flexibility. No outer guide rail means changeover to different size bottles requires minimal intervention as bottles of different sizes can be accommodated easily.

Options are available designed to maximise output speed for lines which use particularly lightweight bottles (to minimise bouncing), or lower speeds using larger, more stable bottles. There is a COMPACT model and option available to suit all production requirements.

High-speed unscrambler for large bottles

Labels for ampoules, vials and bottles are typically applied at the end of the packaging process. What control and printing features do you want to excel within your particular work environment?


<h2>Tailor made labeling solutions for ampoules, vials and bottles</h2>
The labeling machines of Rota meet all requirements of the pharmaceutical industry in an optimal manner. You need properly attached and error-free labels to market your drugs. Rota machines are ideal for integration of any kind of control and printing features from various manufacturers, with top precision at high speeds.

Flexible solutions at in-feed and out-feed of the labeller allow its integration into packaging lines from other manufacturers, as well. Upright transport of all containers, whether of glass or plastic, guarantees a high precision application of labels. Rota labeling machines for ampoules, vials and bottles can label up to 24.000 containers per hour.

Labeling machines for pharmaceutical bottles

For the visual inspection of small to medium batch-sizes of vials, ampoules or bottles with parenteral drugs, a reliable semi-automatic inspection machine can help you further.


<h2>Inspect ampoules and vials with highly reliable semi-automatic machines</h2>
Rota offers inspection of parenteral liquid drug through semi and fully automated inspection machines with state of the art camera systems.  The semi-automatic machines are cost-effective, reproducible and can be systematically validated.

The integrated cameras capture images of the objects to be inspected and send these magnified up to 10 times on the LCD screen. Because nothing checks more reliably than a human being, up to six objects are presented to the operator at simultaneously, who can then decide quickly whether the liquid is free of particles or not. The machines can reach a speed of up to 6.000 per hour for the ampoules.

Pharmaceutical bottles inspection machine

If you are looking for a system with empty bottle inspection; base, residual liquid, finish, thread, inner and outer sidewall, then taking advantage of this system, with state of the art calculation method, is advisable.


<h2>Empty Bottle Inspector with an outstanding inspection performance</h2>
The DAVID 2 from Miho is a High-end empty bottle inspection system with an outstanding performance. Built with a consistently sophisticated modular basic design, the Miho DAVID 2 takes a leading position among the inspectors due to its continued innovation as time has gone by.

Naming just two of the recent Miho development successes:

An innovative thread inspection detects even the smallest, until now, undetectable faults. With the base inspection self-monitoring module Miho AIM, a big step towards the self-control of inspection processes has been achieved, providing a final security measure to ensure accurate test results. It has optimized lighting conditions through high-performance LEDs using the latest technology.
