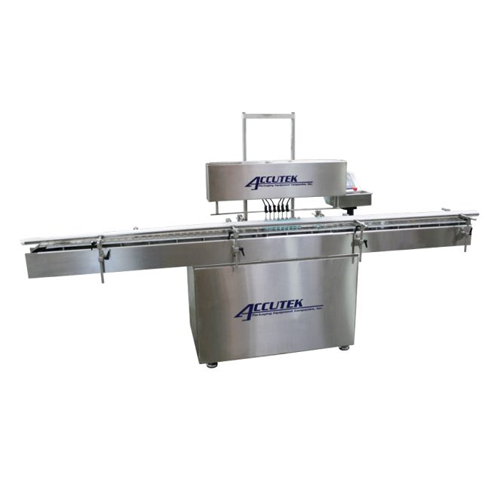

Automatic timed flow volumetric filling machine

Streamline your liquid packaging process with precise volumetric filling of diverse products, from thin juices to viscous creams, while ensuring consistent fill levels and reduced product waste through efficient automatic operation.

Fills and Indexes Liquids for Bottling

The Auto Pinch 50 from Accutek Packaging is a versatile automatic timed flow volumetric filling machine ideal for diverse industries such as food, pharmaceuticals, and cosmetics. Engineered to fill liquid products ranging from essential oils to industrial chemicals, it offers precision and adaptability for various packaging lines. Equipped with a color touch screen control package and a job memory system, the Auto Pinch 50 ensures user-friendly operation and seamless production integration. Featuring stainless steel construction, it supports easy cleaning and maintenance, while its automatic dual pin bottle indexing system optimizes the bottling process. Capable of filling containers at speeds of up to 100 per minute, it maintains accuracy with its sanitary no-drip fill heads and built-in surge tank. The machine can handle viscosities up to 1000 cps and can include options like heated packages for molten products, meeting stringent industry standards and operational needs.

Benefits

  • Enhances production efficiency with up to 100 containers filled per minute.
  • Reduces cross-contamination risk with stainless steel no-drip fill heads.
  • Ensures easy operation and quick adjustments via user-friendly touch screen controls.
  • Minimizes cleaning time with sanitary design and quick exchange manifold.
  • Adapts to a wide range of liquids, from thin to viscous, broadening product compatibility.

General


Applications
Food,Beverages,Personal care products,Pharmaceuticals,E-liquid,Household chemicals,Perfumes,Cosmetics,Industrial chemicals,Cannabis products,Essential oils
End products
Iced tea bottles,Ketchup,Vape juice,Shampoo,Cbd oil,Eau de toilette,Hand sanitizer,Disinfectant liquid,Degreaser,Facial cream,Lavender essential oil
Steps before
Mixing,Blending,Emulsification
Steps after
Capping,Labeling,Packaging
Input ingredients
water thin liquids,light oils,creams,water,fruit juices,extracts,food coloring,perfumes,essential oils,nail polish,nail polish remover,ink,urine,blood,alcohol,wax,lip balms,candles,sun tan lotions,light shampoo,light lotions
Output ingredients
filled containers
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Automation
Automatic
Speed
Up to 100 CPM
Fill Size
1 oz. – 64 oz.
Air Requirements
90 psi @ 2 cfm
Electrical Requirements
110VAC or 220/240 VAC / Single Phase / 20 Amp
Viscosity Range
1 cps to 1000 cps
Dimensions
Height
Weight
~400 lbs. (317.75 kg)
Filling Method
Timed Flow Volumetric
Container Neck Locator
Yes
Conveyor Type
10’ variable speed sanitary conveyor
Bottle Indexing System
Automatic dual pin
No Fluid Contact Pinch Valves
Yes
Container Type
Various

Operating Characteristics


Working Mechanism
Automatic timed flow volumetric filling
Integrated Steps
Fill-place-cap
Batch vs. continuous operation
Continuous operation
Automation level
Automatic with optional PLC integration
CIP/SIP
Easy cleaning features

Material Compatibility


Cleanability
Easy cleaning
Corrosion resistance
Stainless steel construction
Biological compatibility
Food grade centrifugal pump
Corrosive resistance (e.g. acids)
Yes*
Density/particle size
1 cps to 1000 cps
Viscosity Range
1 cps to 1000 cps

Product type Characteristics


Viscosity Range
1 cps to 1000 cps
Foamy Product Handling
Yes
Corrosive Product Handling
Yes
Heated Product Handling
Yes
Particulate Product Handling
Yes
Container Size
1 oz. – 64 oz.
Product Types
Water,Fruit Juices,Perfumes,Essential Oils,Nail Polish
Food Grade Products
Yes
Container Speed
Up to 100 CPM

Physical Characteristics


Machine footprint
66" height x 120" length x 28" width
Weight
~400 lbs (317.75 kg)
Discharge method
Automatic dual pin bottle indexing system
Control panel type
Color touch screen
Sanitary construction
Stainless steel
Conveyor length
10’ variable speed sanitary conveyor
Tank option
Gravity or Pressurized

Custom Options


Control Panel Type
Color touch screen
Integration Possibilities
Remote Location Control Package
Container Neck Locator
Yes
Drip Tray
Available
Pump Upgrades
Various Options
Conveyor System
Sanitary
Heated Package for Molten Product Filling
Available
