Auto-indexing filler for aqueous solutions and light oils

Streamline your bottling process with this six-head filler, perfect for efficiently handling aqueous solutions and light oils, minimizing waste and optimizing flow control for precise fills.

Indexes and Fills Liquid Products Efficiently

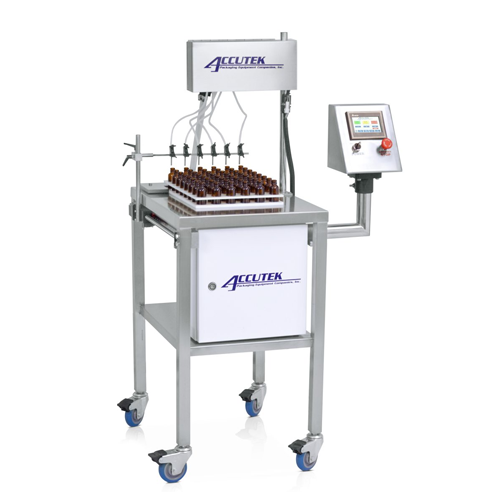

The Auto-Indexing Mini Pinch from Accutek Packaging Equipment stands out as an efficient liquid filler tailored for food, beverage, personal care, and industrial applications. This versatile machine excels in filing aqueous solutions and light oils, such as distilled water and olive oil, with a fill rate of up to six ounces per second. It features a six-head, timed flow volumetric filling system that reliably accommodates container sizes ranging from 5mL to 475mL. Integration into your production line is seamless with its automated indexing and filling capabilities, controlled via an intuitive touch screen interface. Constructed from sanitary stainless steel, the Auto-Indexing Mini Pinch ensures compatibility with various liquids, including corrosive and heated products. Its modular design supports easy-to-clean operations and accommodates customization, offering options such as thin nozzles for precise dispensing. Ideal for small to medium-sized manufacturers, this equipment effectively addresses your efficiency and precision demands while maintaining compliance with industry standards.

Benefits

  • Enhances operational efficiency with automated filling and indexing, minimizing manual intervention.
  • Accommodates a broad range of liquid viscosities, expanding its applicability across multiple industries.
  • Reduces cleaning time and contamination risk with toolless removal of the sanitary stainless steel manifold.
  • Offers flexibility with customizable options to meet specific production needs.
  • Ensures consistent product quality with individual flow controls for each filling head.

General


Applications
Ink,Light oils,Thin oils,Urine,Alcohol,Tomato juice,Milk,Perfumes,Shampoos,Urethane,Silicone,Aqueous solutions,Liquid soap,Motor oil,Light makeup removers,Essential oils
End products
Hand soap,Olive oil,Lavender perfume,Laboratory urine samples,Printer ink,Baby oil,Polyurethane coating,Skim milk,Rosemary essential oil,Micellar water,Engine oil,Silicone sealant,Distilled water,Ethanol,Herbal shampoo,Tomato ketchup
Steps before
Purification,Emulsification,Grinding,Material Handling,Container Preparation
Steps after
Capping,Labeling,Packing,Inspection,Sterilization
Input ingredients
aqueous solutions,thin oils,light oils,milk,tomato juice,perfumes,essential oils,ink,thin liquid soap,shampoos,light makeup removers,motor oil,urethane,silicone,urine,alcohol
Output ingredients
filled containers,bottles
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Fill Rate
Up to 6 ounces per second
Fill Size
5mL – 475mL
Dimensions
30”x31”x48”
Electrical Requirements
110 VAC – 5amps (optional
Viscosity Range
Under 1 cP to 1000 cP (centipoise)
Automation
PLC-controlled

Operating Characteristics


Automation level
Touch screen controller with job memory
Batch vs. continuous operation
Batch
Cleaning method
Toolless removal of sanitary stainless steel manifold
Flow control
Individual flow controls per head
Fluid handling
Direct from drum draw kit
Container handling
Automatically indexed fill wand
Fill triggering
Auto triggered by PLC

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel components
Density/particle size compatibility
0.5–2.5 g/cm³ / 50–1000 µm
Cleanability
Food-grade tubing

Product type Characteristics


Viscosity Range
Under 1 cP to 1000 cP
Foamy Product
No
Corrosive Product
Yes
Heated Product
Yes
Container Size
5mL to 475mL
Container Type
Various shapes
String or Drip
Thin nozzles option


3A Sanitary Standards
Yes
FDA compliance
Yes
FDA materials
Food Grade
GMP Compliance
Yes

Physical Characteristics


Compact footprint
30”x31”x48”
Control panel type
Touch screen interface
Discharge method
Automatically indexed fill wand
Adjustable tabletop stand
Yes

Custom Options


Control panel type
Touch screen interface
Adjustable components
Adjustable tabletop stand
Integration possibilities
Automatically indexed fill wand
Custom bottle guides and trays
Available
Discharge method
Flow control adjusters
Sanitary options
Sanitary stainless steel hoppers
Frame type
Stand alone frame with or without casters
Additional options
Thin nozzles for products that string or drip
