Level bottle filler for wine and spirits

Achieve consistent fill levels with precision sensor technology, ideal for ensuring every bottle meets regulatory compliance without volume variation, particularly in specialty and artisanal production settings.

Ensures Uniform Filling and Level Sensing

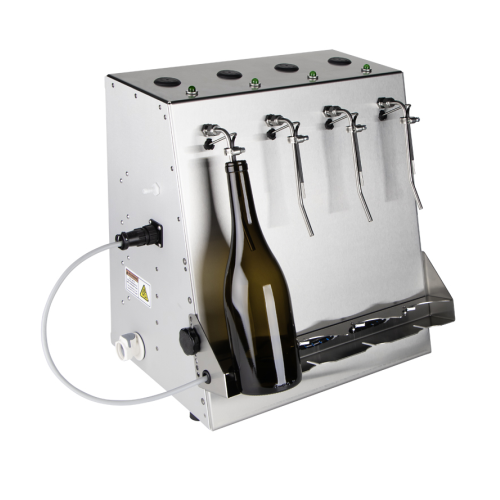

The XF4100 and XF2100 from XpressFill are precision-engineered bottle fillers tailored for artisan distilleries, wineries, and small-batch beverage producers. These machines offer precise level sensing with a sensor probe that halts liquid flow upon reaching the desired fill height. Ideal for wine, spirits, and other beverages, they maintain consistent levels in bottles with minor manufacturing variances. The XF4100 features four filling spouts for higher throughput, while the XF2100 has two spouts for more targeted production needs. Both models benefit from an easy-to-clean design, reducing liquid changeover time to under eight minutes. Constructed with food-grade components and stainless steel, they ensure durability and compliance for beverage applications. Although not certified as explosion-proof, they are built for well-ventilated environments and not suited for solvent use. Customization options include inert gas flush and variable flow rate control, allowing further adaptability. Each unit is built to order, ensuring a tailored fit for your production line.

Benefits

  • Maintains precise fill levels for improved product consistency in specialty bottles.
  • Minimizes labor by simplifying changeovers with quick cleaning processes.
  • Enhances compatibility with varied bottle designs, reducing rejection rates.
  • Supports compliance with regulatory standards for distilled spirits.
  • Available customization options increase operational flexibility.

General


Applications
Soda,Beauty,Distilled spirits,Teas,Wine,Coffee,Spirits,Vinegars,Carbonated water,Juices,Kombucha,Health
End products
Green tea,Orange soda,Organic moisturizer,Kombucha with ginger,Chardonnay,Whiskey,Red wine,Chai tea,Balsamic vinegar,Sparkling water,Arabica coffee,Apple cider vinegar,Perfume,Cold-pressed juice,Gin
Steps before
Purification,Drying,Bulk Container Preparation,Nitrogen Flushing
Steps after
Quality Inspection,Packing,Labeling,Shipping
Input ingredients
wine,spirits,vinegar,bottles
Output ingredients
bottled wine,bottled spirits,bottled vinegar
Market info
Xpressfill is known for manufacturing affordable, high-quality bottle filling machines suitable for small to medium-sized production. They specialize in versatile, easy-to-use equipment that serves industries like wine, beverage, and cosmetics, earning a reputation for reliability and customer service.

Technical Specifications


Number of spouts
2 (XF2100) / 4 (XF4100)
Automation
Manual
Power supply
AC Power 115 VAC
Filling method
Level sensing
Filling speed
Application dependent
Flow control
Snap switch / Sensor probe
Cleaning method
Easy cleaning (<8 minutes)
Material
Stainless steel front
Adjustability
Adjustable tray
Compatibility
Wine,spirits,vinegar
Not suitable for
Oils,solvents
Lead time
1–4 weeks
Indicator lights
Level fill indicator lights
Sediment management
Mesh sediment inline strainer
Pump type
Self-priming diaphragm pump
Gas compatibility
Inert Gas (Nitrogen)
Flow path material
Food-grade components

Operating Characteristics


Working mechanism
Sensor-based level filling
Automation level
Manual sensor activation
Batch vs. continuous operation
Batch
Energy efficiency
Low energy consumption with 115 VAC
Cleaning method
Manual
Changeover time
Less than 8 minutes for cleaning

Product type Characteristics


Container type
Hand-blown bottles and other specialty bottles


TTB Compliance
Required for Distilled Spirits
FDA Materials
Food-grade components

Physical Characteristics


Machine footprint
Compact
Spout quantity
2-spout / 4-spout
Adjustable tray
Yes
Filler spouts
Laminar flow design
Material
Stainless steel
Front panel
Stainless steel
Pump type
Self priming,diaphragm
Flow path components
Food-grade
Power
AC Power 115 VAC

Custom Options


Inert Gas Flush
Nitrogen or similar gas
Variable Flow Rate Control Valves
Slow down or speed up filling rate
Custom Filler Spouts
Bottling unusual-sized bottles or types
Transfer Kit
Transfer product from bulk container to filler
