Self-adhesive labeling system for bottles
Streamline your bottling operations with high-precision labeling that enhances product presentation and efficiency, all while ensuring seamless integration into existing production lines.
Applies High-Precision Labels to Bottles

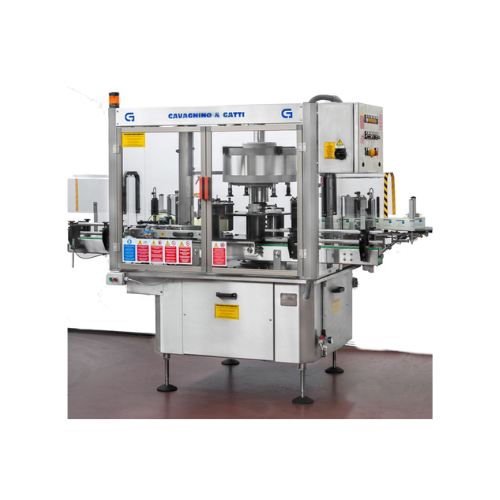

The CG 80 Series from Cavagnino e Gatti is a versatile labelling solution engineered for seamless integration into various packaging lines, including mobile bottling setups. This system excels in precision labelling across a wide range of products such as wine, spirits, soft drinks, and cosmetic bottles. Featuring a compact design, it utilizes synchronized electronic and mechanical systems to accurately apply labels at a rate of 1,000 to 4,500 bottles per hour. The unit accommodates both self-adhesive and wet glue labelling, expanding its adaptability. Equipped with automation features, the CG 80 Series employs a PLC-managed touch-screen interface for straightforward operation and minimal maintenance. Enhanced by options like spinning and heat-shrinkage systems and adaptable star wheels, this machine ensures efficiency and accuracy for continuous, high-speed operations.
Benefits
- Increases production efficiency with high-speed, precise label application.
- Minimizes maintenance needs with robust and reliable electronic systems.
- Enhances flexibility with support for multiple label types and orientations.
- Adapts easily to existing lines, including mobile bottling operations.
- Streamlines operations via user-friendly PLC-controlled interface.
- Applications
- Vinegar, Water, Wine, Oil, Spirits, Chemical products, Cosmetics, Food containers, Juices, Soft drinks, Beer
- End products
- Coca-cola bottles, Wine bottles, Olive oil bottles, Sparkling water bottles, Balsamic vinegar bottles, Salad dressing bottles, Perfume bottles, Orange juice bottles, Whiskey bottles, Craft beer bottles, Shampoo bottles
- Steps before
- Bottle Manufacturing, Filling, Capping
- Steps after
- Packaging, Quality Control, Distribution
- Input ingredients
- bottles, cylindrical bottles, capsules, labels
- Output ingredients
- labelled bottles, packaged bottles
- Market info
- Cavagnino & Gatti is renowned for designing and manufacturing high-performance labeling and packaging machines, specializing in providing tailored solutions for diverse industries with a reputation for innovation, quality, and reliability.
- Labeling speed (RPS)
- up to 3, 000 b/h, up to 25 m/min
- Labeling speed (XPS)
- up to 4, 500 b/h, up to 40 m/min
- Throughput capacity
- 1, 000 to 4, 500 b/h
- Automation
- PLC management with touch-screen panel interface
- Integration capability
- Can be combined with wet glue labelling units
- Bottle type adaptability
- Adaptable to cylindrical bottles of variable diameter
- Mechanical orientation
- Orientation of notches on glass (side or bottom)
- Synchronous system
- Automatic synchronised system for spinning or heat-shrinkage of capsules
- Design
- Compact and ergonomic
- Automation level
- PLC-controlled / Automatic
- Batch vs. continuous operation
- Inline Continuous
- Synchronized system
- Automatic
- Changeover time
- Minimal
- Cleaning method
- Manual
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Label Type
- Self-adhesive / Wet glue
- Container type
- Glass / PET / Cylindrical
- Bottle diameter compatibility
- Variable
- Target Industry
- Wine, Spirits, Beer, Oil, Vinegar, Soft Drinks, Water, Juices, Food, Chemical Products, Cosmetics
- Packaging Capacity
- 1, 000 to 4, 500 b/h
- Footprint
- Compact
- Design
- Compact and ergonomic
- Integration
- Suitable for mobile bottling lines
- Control panel type
- Touch-screen panel interface
- Orientation
- Mechanical orientation of notches
- Customization
- Multi-format star wheels for variable diameter bottles
- Compact footprint
- Yes
- Control panel type
- Touch-screen panel interface
- Automation level
- PLC management
- Integration possibilities
- With wet glue labelling units
- Additional functionality
- Multi-format star wheels
- Automatic synchronised system for capsules
