High-capacity no-oxygen wine filler

Ensure optimal flavor retention and prevent oxidation in your bottling process with advanced no-oxygen filling technology, designed to protect delicate wine properties and enhance product longevity.

Fills and Protects Beverages from Oxidation

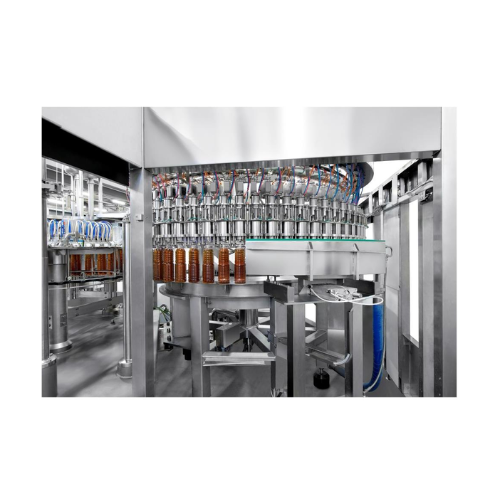

The Bertolaso no-oxygen isobaric and electropneumatic fillers are engineered to deliver precision filling for wine and beverage bottling, minimizing oxygen exposure to enhance product stability and quality. These systems are designed to handle still, sparkling, and slightly sparkling wines, offering flexibility for wine producers and beverage manufacturers. The no-oxygen filling technology features a specialized filling valve, ensuring minimal oxygen uptake and protection from microbiological contamination throughout the process.

Bertolaso fillers efficiently manage high-capacity throughput with optimized energy usage, supported by a PLC-controlled interface for seamless integration into existing production lines. Built with AISI 316 stainless steel, these fillers ensure robust corrosion resistance, meeting industry standards for hygiene and safety. The filling systems are further enhanced by separation capabilities to maintain product purity and integrity. Custom engineering support is available to adapt the system to specific operational requirements, ensuring it meets the unique demands of each production environment.

Benefits

  • Minimizes product oxidation, enhancing flavor and shelf life.
  • Ensures microbiological safety, reducing risk of contamination.
  • Optimizes production speed for high-volume output.
  • Integrates seamlessly with existing bottling lines, improving efficiency.
  • Customizable configurations to meet diverse production needs.

General


Applications
Water,Slightly sparkling wine,Wine,Still wine,Spirits,Drinks,Juices,Sparkling wine
End products
Cabernet sauvignon,Champagne,Syrah,Pinot grigio,Mineral water,Port wine,Chardonnay,Orange juice,Sparkling water,Riesling,Zinfandel,Vodka,Apple juice,Merlot,Lemonade,Moscato,Prosecco,Cider,Gin
Steps before
Wine treatment,Bottle rinsing
Steps after
Corking,Packing
Input ingredients
wine,spirits,juices,drinks,water
Output ingredients
filled wine,filled spirits,filled juices,filled drinks,filled water
Market info
Bertolaso (Omnia Technologies) is renowned for manufacturing high-quality, engineered-to-order bottling and packaging machinery, with extensive expertise in providing customized solutions for wineries and the beverage industry, ensuring efficiency, precision, and reliability in production processes.

Technical Specifications


Filling method
Gravity / Low vacuum / Isobaric / Electropneumatic
Capacity
High-capacity solutions
Automation
Automatic Filling Level Control
Oxygen Increase
Zero increase in oxygen
Operation Pressure
0.3 bar (for electropneumatic fillers)
Material
Aisi 316 stainless steel (filling valve)
Energy Consumption
Reduced energy consumption (for isobaric fillers)
Filling Speed
High specific speed
Contamination Protection
No-oxygen filling systems
Filling Cycle Type
Counter pressure-like cycle for still and slightly sparkling wines
Filling Flexibility
Sparkling,slightly sparkling,and still wines
Process Quality
High production flexibility and process quality (isobaric fillers)

Operating Characteristics


Working mechanism
Gravity / Low vacuum / Isobaric
Integrated steps
Filling,corking,rinsing
Oxygen control
No-oxygen filling
Automation level
High
Changeover time
Minimal
CIP/SIP
Available
Energy efficiency
Enhanced via optimized cycles
Batch vs. continuous operation
Can perform both
Anti-contamination measures
Microbiological protection

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Glass / PET
Filling purpose
Wine / Spirits / Juices / Water
Viscosity compatibility
Low viscosity / Non-viscous
Heat sensitivity
Yes
Foaming risk
Moderate
Sensitivity to oxidation
High
Microbiological contamination risk
High
Container size
750 ml – 1.5 L
Sparkling capability
Still / Slightly Sparkling / Sparkling

Physical Characteristics


Discharge method
No-oxygen environment
Valve material
AISI 316 stainless steel

Custom Options


Control panel type
HMI
Integration capabilities
ERP/SCADA compatible
Valve material
Aisi 316 stainless steel
Oxygen management system
No-oxygen filling
Custom filling processes
Gravity,Low vacuum,Isobaric filling
