Integrated bottling center for pharmaceutical tablets and capsules

Enhance your production line with versatile bottling capabilities, precisely counting pharmaceutical tablets and capsules while seamlessly integrating packaging and labeling functions.

Counts, Packages, and Bottles Pharmaceuticals and Supplements

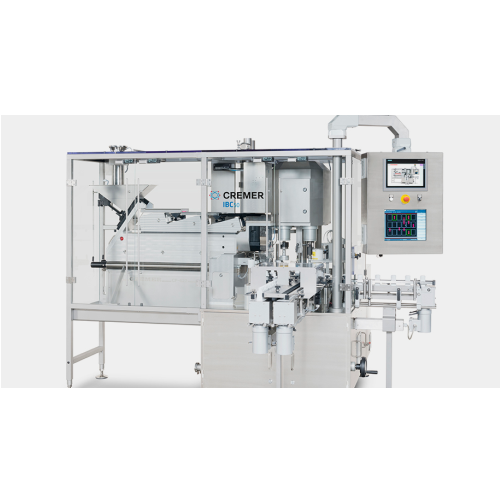

The IBC 50 Integrated Bottling Center from Cremer is tailored for pharmaceutical and supplement manufacturers seeking precision in packaging. This compact solution excels with its GMP-compliant design, efficiently counting, packaging, and bottling tablets and capsules, including vitamin D capsules and multivitamin pills. With a capacity of up to 50 bottles per minute, it ensures unwavering accuracy and speed. Its automated, continuous operation integrates counting, labeling, and bottling within one unit, minimizing manual handling and reducing error rates. The IBC 50’s FDA-compliant materials and optional containment features offer both product and operator protection. Easy accessibility allows for streamlined maintenance and clean-up procedures, meeting stringent pharmaceutical industry standards. Configurable features are available to match distinct production line requirements, backed by Cremer’s engineering expertise.

Benefits

  • Enhances production accuracy with 100% tablet and capsule counting precision.
  • Optimizes operational efficiency by integrating counting, labeling, and bottling processes.
  • Conserves floor space with its small footprint design.
  • Minimizes contamination risks with FDA-compliant contact materials.
  • Increases worker safety with optional containment features.

General


Applications
Supplements,Vitamins,Capsules,Pharmaceutical tablets
End products
Multivitamin pills,Omega-3 soft gels,Vitamin d capsules,Vitamin c chewables,Fish oil supplements,Folic acid supplements,Probiotic capsules,Calcium supplements,Iron tablets,Aspirin tablets
Steps before
Bottle washing,Bottle inspection
Steps after
Labeling,Packing,Quality control
Input ingredients
round bottles,oval bottles,rectangular bottles,special-shaped bottles,tablets,capsules
Output ingredients
packaged bottles,labeled bottles
Market info
Cremer is known for designing and manufacturing precision counting machines, particularly in the pharmaceutical and food industries. Their expertise lies in innovative, accurate, and reliable counting solutions for tablets, capsules, and confectionery.

Technical Specifications


Bottle Diameter
Max. 80 mm
Bottle Height
Max. 160 mm
Output
50 bottles / minute
Counting Accuracy
100%

Operating Characteristics


Automation level
PLC / Integrated
Batch vs. continuous operation
Batch
Changeover time
Efficient and quick
Cleaning method
Manual / Optional containment features
Energy efficiency
Cost-effective
CIP/SIP
Optional containment features

Physical Characteristics


Footprint
Small
Bottle Diameter
Max 80 mm
Bottle Height
Max 160 mm

Custom Options


Control panel type
HMI / Touchscreen
Integration possibilities
Labeler / Counting system integration
Customization of functions
Customer requirement integration
Operator and product protection features
Optional containment features
