Automatic food cooking oil bottling solution

Ensure precise volumetric filling for a range of liquid products, enhancing your production line’s accuracy and efficiency across multiple product types from cooking oils to industrial chemicals.

Bottles and Caps Various Liquid Products

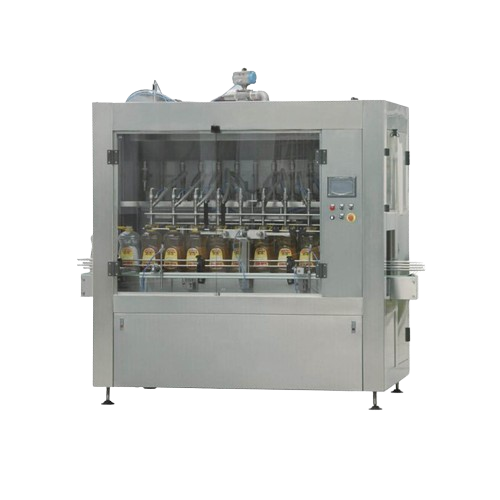

The SNYG-10, offered by Alps Machinery, is designed to facilitate high-speed bottling and capping of liquid products such as cooking oils, detergents, and shampoos. This machine utilizes a volumetric filling system powered by servo motor technology, ensuring precise and stable filling for liquids of varied viscosities. It accommodates plastic and glass bottles ranging from 500ml to 3L, delivering capabilities of up to 3000 liters per hour. The SNYG-10’s anti-foam diving system and Airtac cylinder filling valves prevent leakage and ensure clean operation, crucial for food, cosmetic, and chemical industries. With a user-friendly PLC interface, the machine easily integrates into automated production lines, enhancing reliability and throughput while reducing labor costs. Constructed from SUS316L stainless steel, it offers exceptional corrosion resistance and supports compliance with industry standards. Custom configurations, including adjustable filling volumes and optional remote monitoring, are available to meet unique production requirements.

Benefits

  • Enhances production efficiency by processing up to 3000 liters per hour.
  • Maintains filling precision with minimal waste through automated volumetric control.
  • Simplifies integration into existing lines with flexible bottle size compatibility.
  • Reduces risk of product contamination with anti-leakage and anti-foam mechanisms.
  • Provides durability and corrosion resistance with SUS316L stainless steel construction.

General


Applications
Cooking oils,Cleaning liquids,Detergents,Medicine,Shampoos,Grease,Cosmetics,Chemical industry,Pesticides,Foodstuff,Daily chemical industry,Motor oil
End products
Hair conditioner,Face creams,Engine oil,Dishwashing liquids,Industrial solvents,Canola oil,Gear oil,Hair shampoo,Insecticides,Lip balm,Olive oil,Vegetable oil,Liquid medicines,Cleaning chemicals,Floor cleaners,Industrial grease,Laundry detergents,Fertilizers,Ketchup,Sunflower oil,Glass cleaners,Cough syrup,Mayonnaise,Lubricants,Herbicides,Anti-corrosion agents
Steps before
Water Treatment,Oil Preparation,Blending,Emulsification,Ingredient Mixing
Steps after
Capping,Labeling,Packing,Quality Inspection,Storage
Input ingredients
Vegetable oil,Cooking oil,Motor oil,Detergent,Cleaning liquid,Shampoo
Output ingredients
Bottled oil,Packaged detergent,Shampoo bottles,Liquid containers
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
2500~3000 liters per hour
Bottle size
500ml~3L
Max bottle size
5L
Filling heads
4–16 heads
Filling precision
±0.5%
Working power
220VAC
Air pressure
6~7 kg/cm²
Air consumption
1 m³/min
Total power
3.2kw–7.5kw
Height
2.3m
Weight
1500kg–2800kg
Filling system
Volumetric filling type
Filling method
Straight filling way
Automation
Servo motor drive
Material
SUS316L

Operating Characteristics


Working mechanism
Volumetric filling
Integrated steps
Filling,anti-leakage,fast speed
CIP/SIP
CIP compatible
Batch vs. continuous operation
Inline Continuous
Automation level
PLC-controlled
Changeover time
Quick-change settings
Energy efficiency
N/A
Air incorporation control
Anti-foam function
Cleaning method
Manual or CIP

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Application range
Cooking oil / Motor oil / Detergent / Cleaning liquid / Shampoo

Physical Characteristics


Machine footprint
Not specified
Max bottle size
5L
Can size
500ml to 3L
Height
2.3m
Weight
1500kg to 2800kg
Filling heads
4 to 16 heads
Discharge method
Volumetric filling
Filling valve material
SUS316L
Material handling method
Servo motor drive

Custom Options


Control panel type
HMI / PLC
Filling head options
4 to 16 heads
Bottle size compatibility
500 ml to 5 L
