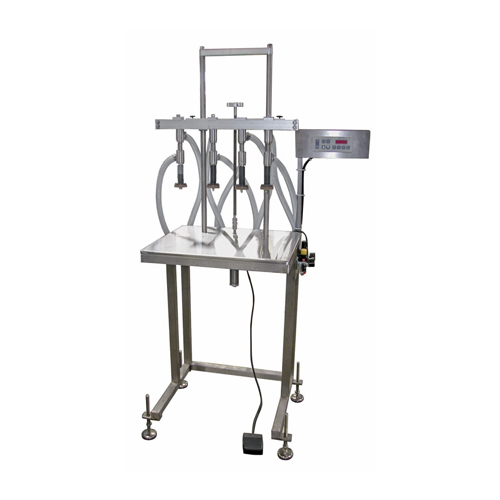

Semi-automatic overflow liquid filler

Optimize your production line with a reliable filling solution for low to medium viscosity liquids, expertly handling foaming products and diverse container shapes for precise and consistent results.

Fills Liquids Precisely and Efficiently

The SAPOF Series from Accutek Packaging is a semi-automatic pressure overflow filler engineered to tackle the challenge of efficiently filling liquids with low to medium viscosities, including foaming products. Utilizing a pressure-based overflow filling method, it ensures precise fill levels across various container types such as plastic, metal, or glass. Capable of handling fill sizes from ounces to gallons, this series is ideal for applications like bottling water, juices, or motor oils.

The base SAPOF model includes a standard pump and two filling nozzles, with an optional upgrade to a four-nozzle configuration for increased throughput. With a production speed of up to 32 containers per minute, it integrates seamlessly within semi-automatic and batch operations. The robust stainless steel construction ensures durability and corrosion resistance, making it suitable for industries ranging from food and beverage to industrial chemicals.

Accutek’s SAPOF Series supports easy changeover between container sizes, augmented by self-centering bottle locators and quick adjust features. The system is microprocessor-controlled for optimal precision and efficiency, featuring options like pump-controlled feed tanks and pneumatic operation for enhanced customization. Compliant with safety and operational standards, this filler is ideal for enhancing productivity while minimizing product loss and waste.

Benefits

  • Ensures consistent fill levels with its pressure overflow technology, reducing product waste.
  • Increases flexibility with rapid container changeovers, minimizing production downtime.
  • Enhances operational efficiency with a microprocessor-controlled system, optimizing accuracy and reliability.
  • Offers durability and longevity with heavy-duty stainless steel construction, ideal for corrosive environments.
  • Supports a wide range of container types, expanding compatibility across diverse production lines.

General


Applications
Beverages,Household chemicals,Perfumes,Cosmetics,Pharmaceutical products,Food products,Industrial chemicals,E-cigarettes,Essential oils
End products
Milk cartons,Vegetable oil bottles,Water bottles,Perfume bottles,Fruit juice bottles,Alcohol bottles,Liquid tea bottles,Ink cartridges,Household cleaner bottles,Liquid coffee bottles,Urethane products,Liquid e-cigarette refills,Essential oil vials,Shampoos,Some salad dressing bottles,Liquid soap,Light makeup removers,Tomato juice containers,Motor oil bottles,Silicone products,Urine sample containers
Steps before
Container Unscrambling,Preparation of Liquid Mixture,Container Cleaning
Steps after
Capping,Labeling,Packing,Inspection-Rejection
Input ingredients
water,fruit juices,extracts,liquid tea,liquid coffee,food coloring,vegetable oil,milk,tomato juice,some salad dressings,perfumes,essential oils,ink,thin liquid soap,shampoos,light makeup remover,motor oil,urethane,silicone,urine,alcohol
Output ingredients
filled containers,bottles,rigid plastic,metal containers,glass containers
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Speed
Up to 32 CPM
Fill Size
2oz-5L
Height
75 inches
Length
32 inches
Width
28 inches
Weight
~160 Lbs. (72.57 kg)
Air Requirements
90 PSI @ 3 CFM
Electrical Requirements
110 vac / single phase / 10 amp
Viscosity Range
2000 cps (centipoise)
Foamy Product
Yes
Corrosive Product
Yes
Heated Product
Yes
Particulates
No

Operating Characteristics


Automation level
Manual / PLC
Changeover time
Quick container changeover
Cleaning method
Manual
CIP/SIP
No
Batch vs. continuous operation
Batch
Energy efficiency
High efficiency with reduced energy use

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Biological compatibility
Yes
Cleanability
Yes
Abrasion resistance
Yes

Product type Characteristics


Viscosity
Low to medium
Foaming
Yes
Container shape
Rigid plastic,metal,glass
Fill size
Ounces to gallons
Corrosive Product
Yes
Heated Product
Yes
Particulates
No
Product Examples
Vegetable oil,juice,cleaners

Physical Characteristics


Machine footprint
75" H x 32" L x 28" W
Weight
~160 Lbs. (72.57 kg)
Control panel type
Foot pedal operation
Nozzle configuration
2 filling nozzles (upgradable to 4)
Construction material
Heavy-duty stainless steel
Container compatibility
Rigid plastic,metal,glass
Fill size capacity
2oz-5L

Custom Options


Control panel type
Microprocessor controlled
Filling nozzles
2 to 4 nozzle options
Operation method
One button auto program / Foot pedal operation
Pump controlled feed tank
Available as an option
Neck support
Available as an option
All pneumatic operation
Available as an option
