Vacuum bottling equipment for wineries and breweries

Optimize your bottling process with a vacuum solution that fills up to 600 containers per hour, ensuring precise fill levels and reducing waste for liquids like oils, wines, and juices.

Fills and Seals Liquid Products Efficiently

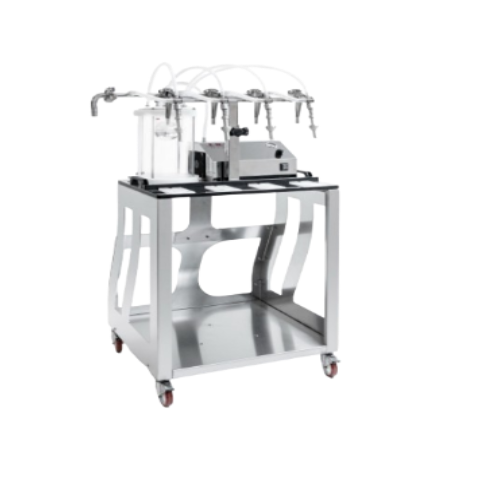

The Enolmaster from Tenco is a versatile vacuum bottling machine tailored for diverse filling needs in industries such as beverages, cosmetics, food, chemicals, and pharmaceuticals. Ideal for production facilities like farms, wineries, distilleries, and breweries, it efficiently fills up to 600 bottles per hour, maintaining absolute hygiene and minimal waste. The Enolmaster uses a vacuum sealing process that ensures accurate liquid levels and maintains product integrity by adjusting the filling level automatically.

Its adaptable design offers various spout configurations in stainless steel or plastic, allowing it to handle a wide range of products including wine, oils, perfumes, and liquors. The bench-top or trolley-mounted setup integrates seamlessly into existing production lines, offering flexibility in operation. Durable materials such as stainless steel enhance its corrosion resistance, while options like a pyrex recovery jar cater to high-temperature applications.

Equipped with electric or pneumatic pumps, the Enolmaster is suitable for environments with specific safety requirements. Maintenance is straightforward with easily accessible parts and a simple washing protocol using water and neutral detergents. Tenco provides comprehensive customization options to meet specific production requirements, ensuring that each Enolmaster enhances operational efficiency while adhering to industry standards.

Benefits

  • Enhances production efficiency with a capacity of up to 600 bottles per hour.
  • Minimizes product waste through precise vacuum sealing.
  • Flexible integration into existing setups with bench-top or mobile trolley configurations.
  • Reduces maintenance effort with easy-to-clean components.
  • Suitable for high-temperature and high-alcohol applications, ensuring product safety and integrity.

General


Applications
Food,Beverages,Chemicals,Oils,Cosmetics,Wines,Liquors,Fruit juices,Pharmaceuticals
End products
Beer bottles,Essence bottles,Energy drinks bottles,Flavored oils,Wine bottles,Olive oil bottles,Essential oil vials,Gin bottles,Perfume bottles,Cough syrup bottles,Tomato sauce jars,Aromatherapy oils,Fruit juice bottles,Herbal extract bottles,Grappa bottles,Distilled spirits bottles,Liqueur bottles
Steps before
Purification,Emulsification,Filtering,Preparation of liquid products,Cleaning and setup
Steps after
Sterilization,Packing,Labelling,Storage,Quality control
Input ingredients
wine,oil,beer,water-like liquids,viscous liquids,foamy liquids,high alcohol content liquids,high temperature liquids
Output ingredients
bottled wine,bottled oil,bottled beer,bottled miniature bottles,bottled magnum bottles,bottled liquid products,bottled viscous products,bottled foamy products
Market info

Technical Specifications


Production Capacity
500-600 bottles/hour
Container Neck Internal Diameter
16 - 28 mm
Minimum Bottle Height
180 mm
Maximum Bottle Height
350 mm
Power Supply
Electric and pneumatic
Voltages
230V - 50Hz / 110V - 60Hz
Dimensions (Bench Version)
65 x 47 x 45 cm
Dimensions (Trolley Version)
65 x 60 x 140 cm
Weight
35 kg

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Automatic
Changeover time
Quick and easy
Cleaning method
Manual
Energy efficiency
Low energy consumption
CIP/SIP
Manual Cleaning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Glass bottles,jars,vials
Product types
Wine,oil,beer,milk

Physical Characteristics


Machine footprint
65 x 47 x 45 cm (bench version)
Machine footprint
65 x 60 x 140 cm (trolley version)
Spout configuration
Stainless steel / Plastic
Number of spouts
2 or 4
Packaging type
Glass bottles / Jars / Vials
Control panel type
Manual adjustments
Positioning
Benchtop / Trolley

Custom Options


Spout configuration
Stainless steel wine/oil/beer,Stainless steel for miniature bottles,Stainless steel milk cone
Number of spouts
2 or 4
Positioning
On bench,on trolley
Power supply
Electric and pneumatic
Recovery jar material
Methacrylate,Pyrex glass
Pump type
Electric pump,Pneumatic pump
