Industrial fruit juice extractor

Maximize juice yield from a wide range of fruits and vegetables with precise extraction and efficient processing, ensuring high-quality outputs for diverse beverage production needs.

Extracts and Processes Multi-Fruit Juices

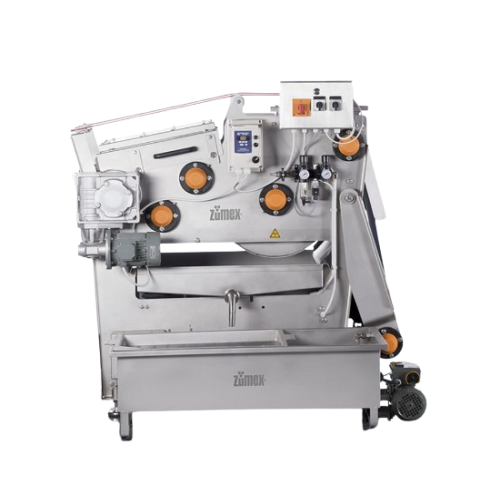

The ZMF400 Belt Press from Zumex is designed for high-efficiency juice extraction from a wide range of fruits and vegetables. It uses a continuous, low-speed operation with tension adjustments that maximize yield and maintain juice quality. Commonly applied in the food and beverage industry, it processes products like orange, apple-carrot, and pomegranate juice, catering to beverages from citrus to tropical fruits.

The ZMF400 integrates into production lines seamlessly with adjustable crushing and rinsing functionalities, benefitting from modular rigid belts and versatile blades that handle fruits with or without stones. Automation features include cable-pull emergency stops and a control panel that manages elevator speed and cleaning modes.

Constructed from durable stainless steel, the ZMF400 is energy-efficient and designed to minimize maintenance downtime with its easy-to-clean belt system. It supports continuous operations, suitable for juice manufacturing and food processing sectors. Optional customization ensures the equipment meets specific production requirements, backed by engineering support from Zumex.

Benefits

  • Enhances juice yield and quality through optimized low-speed extraction.
  • Integrates seamlessly into existing production lines, streamlining operational workflows.
  • Minimizes operational costs with energy-efficient design and reduced downtime.
  • Adapts to diverse fruit types, providing versatile processing capabilities.
  • Facilitates easy maintenance with a continuous, easy-to-clean belt system.

General


Applications
Pomegranate juice,Tropical fruit juices,Citrus juices,Multi-fruit solutions,Vegetable juices,Fruit juices
End products
Lemon juice,Pineapple juice,Orange juice,Mango juice,Mixed berry juice,Grapefruit juice,Green juice,Passion fruit juice,Apple-carrot juice
Steps before
Selection,Washing,Loading,Sorting
Steps after
Capping,Labelling,Bottling,Packing,Pasteurization
Input ingredients
citrus fruits,fruits with or without stone,fruits and vegetables,pomegranate,tropical fruits
Output ingredients
fruit juice,vegetable juice,citrus juice,pulp,pomegranate juice,tropical fruit juice
Market info

Technical Specifications


Automation
Elevator speed regulator
Control panel
Stop and start of all elements,presence sensor,status pilot lights
Emergency stop
Cable-pull emergency stop
Material
Stainless steel
Mode
Integrated continuous mode
Speed
Operates at low speed for highest yield
Belt
Tension adjustment for optimal performance
Cleaning method
Easy-to-clean belt
Fruit handling
Automatic fruit feed speed and rinse adjustment
Blade type
Different blades for crushing fruits with or without stone

Operating Characteristics


Working Mechanism
Integrated continuous mode
Automation Level
Automatic / Manual
Batch vs. Continuous Operation
Inline Continuous
Cleaning Method
CIP / Easy-to-clean belt
Emergency Stop
Cable-pull emergency stop
Control Panel Features
Stop and start control,speed regulator,status lights
Fruit Feed Adjustment
Automatic feed speed and rinse adjustment

Material Compatibility


Cleanability
Yes
Corrosive resistance (e.g. acids)
Stainless Steel
Biological compatibility
Food Grade Materials

Product type Characteristics


Fruit type compatibility
Stone fruit / Citrus / Non-stone fruit
Container size and shape
Variable


CE marking
Yes

Physical Characteristics


Feed method
Automatic fruit feed
Discharge method
Modular rigid belt
Material
Stainless steel
Control panel type
Integrated control panel
Belt adjustment
Tension adjustment
Cleaning method
Easy-to-clean
Cleaning mode
Cleaning mode available

Custom Options


Control panel type
Stop and start of all elements,elevator speed regulator,emergency stop,cleaning mode
Integration possibilities
Integrated continuous mode
Customization for fruit types
Crushing of all types of fruit,with or without stone,thanks to its different blades
Belt tension adjustment
Yes
Emergency stop
Cable-pull emergency stop
