An emulsifier is used to mix two immiscible liquids. Heating or cooling requirements during emulsification, overpressure or vacuum requirements, the need for wall scrapers, design of the mixing head, the viscosity of the liquids, and the desired droplet size are all important considerations when selecting an emulsifying system. Emulsifiers are typically used in the food industry for the production of batters, creams, and sauces, in the pharmaceutical and cosmetics industry for the production of creams and lotions, and in the chemical industry for the production of paint and other emulsions.

Emulsifying

Mayonnaise is created by blending oil with eggs, and then flavoring with vinegar, mustard, herbs, and spices. The eggs are a natural emulsifier that creates a uniform mixture. Ingredients are pumped into mayonnaise manufacturing equipment. First, a dynamic mixer maintains the desired level of emulsification of the mixture, which then moves on to packaging and bottling once reaching a satisfactory consistency.

Mayonnaise

For products of medium viscosity and relatively consistent particle size such as honey, cremes, and some plastics, a simple, low cost mixing machine is useful to ensure even dispersion.  The most efficient production plants take advantage of such equipment in continuous production processes to minimize required floor space and serve double-duty as mixing and pumping/transfer equipment.
<h2>A basic effective mixing machine with transport pump capabilities and low cost</h2>
The lower-priced ULTRA-TURRAX UTL 1000 machines from IKA are particularly multifunctional and are used for the mixing, dispersing (emulsifying/suspending) and homogenizing of solid and liquid substances up to viscosities of several thousand mPa·s, such as honey, plastic masses and crèmes. The mixing components are fed into the machine at the inlet connection. The materials are mixed, homogenized and then discharged from the machine via the outlet connection. The economic dispersing machine does not have automatic suction, but does have a conveyor height of up to 20 meters.  Units are available with flow rates from 4.800 to 125.000 liters per hour.

&nbsp;

Economic dispersing machine for emulsions and suspensions

Producing the finest micro-emulsions and suspensions requires a mixing machine that generates extremely high shear.  Multi-staged rotor/stator dispersing machines work well for this purpose because of the high shear forces applied to the mixture at each rotor/stator stage.  A rotor /stator dispersing machine that also incorporates extremely fast rotation and resultant tip speeds for even greater shearing action will lead to the creation of super-fine emulsions and ensure the success of your process.
<h2>Top-of-the-line rotor/stator dispersion with utlra high shear for nano-scale particle emulsions and suspensions</h2>
The DISPAX-REACTOR® DRS from IKA is an inline ultra high shear dispersing machine used to achieve the finest micro-emulsions and suspensions. Extremely high shear rates (up to 190.000 1/s) combined with a fine generator geometry enable crushing of droplets and solids particles down to the nanoscale. The resulting product has long-term stability which reduces the need for emulsifying agents and thickeners. Because of the extremely high energy density, other dispersing aids can be reduced or possibly eliminated.

The DRS is usually equipped with a two-stage rotor-stator system (generators). The high tip speed of 40 m/s (10.000 fpm) often negates the need for a third stage. The ultra-fine dispersing machine, designed with the same high quality features as the ULTRA-TURRAX® UTL and the DISPAX-REACTOR® DR, is especially well suited for challenging pharmaceutical applications.  The units are designed for easy and reliable scalability and sizes are available with flow rates from 70 to 40.000 liters per hour.

Ultra-fine dispersing machine for emulsions and suspensions

Manufacturers need production mixing equipment that is capable, flexible, and easy to maintain. Accurate mixing form a reliable, user friendly machine will give plant managers the peace of mind and worry free operation they need to focus on improving other areas of their process. A high quality piece of equipment allows for low maintenance, easy cleaning, enables the direct feed of solids and liquids, mixing and dispersing of the vessel contents, heating or cooling of the product, and processing under vacuum or under pressure.
<h2> A universal mixing system with precise, reproducible results and safe operation</h2>
The Master Plant homogenizing and emulsifying system from IKA was designed specifically to meet the production mixing needs of the pharmaceuticals industry but has also proven useful in the production of food, beverages, cosmetics, and chemicals.  Several mixing heads are interchangeable depending on the process and desired results.  Each mixing head can be heated or cooled to control product temperature simultaneous to the mixing process. Flexible PTFE scrapers move with the mixing head and keep product from adhering to the vessel walls.  Products of up to 100.000 mPas viscosity can be processed.  The GMP homogenizing systems  can be fully discharged without the need for additional pumping and are available in capacities from 10 to 4.000 liters.

GMP homogenizing system

When producing liquid and viscous products such as mayonnaise, sauces, dressings and ketchup it’s vital to achieve thorough emulsification and homogenization to ensure product quality. Traditional homogenizing solutions can be slow and difficult to clean, increasing downtime between batches. A modern vacuum-based system offers the flexibility to produce a wide range of products quickly, with exceptional quality and short cycle time.


<h2>Vacuum processing plant for emulsions, suspensions and gels</h2>
The MultiVacH from Enoop is a state-of-the-art processing plant for the production of high-quality sauces, mayonnaise, <a href="https://making.com/ketchup/">ketchup</a> and other liquid and viscous products.

Designed to be completely flexible, MultiVacH can be used whenever liquids or powders need to be thoroughly mixed and offers both cooling and heating to suit all production methods.

Ingredients are circulated via vacuum pump to a high-shear mixing element, then recirculated. This allows for extremely fast processing, as the circulation of product provides additional macro-mixing.

Downtime associated with batch or product changes is reduced to an absolute minimum thanks to fully pumped emptying via the recirculation line. In addition, rotating clean-in-place nozzles speeds up cleaning, allowing the MultiVacH to be used in multi-recipe environments.

Heating and cooling are via a double-jacket system, with direct steam injection available for high-temperature recipes.

Control is via a Siemens PLC with 12” touchscreen display, allowing observation and control of all parameters. Production can be manual, semi-automatic or fully automatic to your requirements.

Vacuum based homogenizer

Sauce cookers and mixing machines have traditionally been designed to suit one process. This can mean they are an inefficient choice for multi-recipe production. By installing a modern, fully flexible stainless steel machine that can handle a wide range of processes, you can produce a range of high-quality products more efficiently. All while still maintaining the maximum quality of sauce or food that you wish to make.


<h2>Fully-flexible cooking and sauce mixer machine for a wide range of food products</h2>

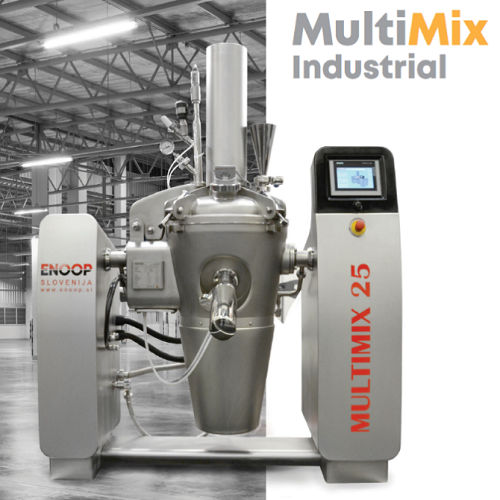

The MultiMix from Enoop is a highly advanced full automatic mixer and cooker unit that has been designed from the outset to be incredibly versatile.

Able to mix, chop, cut, cook, cool, concentrate, emulsify, and perform vacuum deaeration and homogenisation, the MultiMix can handle the widest range of product recipes. From chili sauce to any other type of mixing you can think of.

The MultiMix cooking mixer machine is fitted with a vacuum system, as well as cooling and heating up to 125 Celsius. Thus, allowing a full range of sauce cooking operations to be formed by the same machine.

For rapid changeover, full clean-in-place system ensures quick and thorough cleaning. The 90-degree tilting bowl and pneumatic dispensing valve make emptying after sauce mixing, quick and easy.

Full Siemens PLC with touchscreen control allows simple operation. The recipe management system allows step-by-step parameter programming and recipe store and recall. Additionally, HACCP compliant data recording is available for this cooking mixer machine.

Universal Mixer and Cooker for Sauces

Emulsions enhance foods with a creamy mouthfeel and richer flavors. But the immiscible nature of oil-and-water mixtures makes it challenging to maintain consistency in textures and taste across batches.


<h2>Versatile, powerful, and reliable</h2>

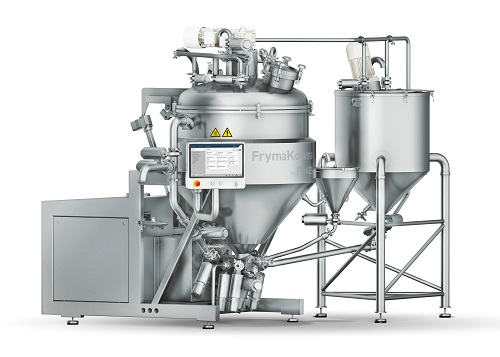

The ProxxD® high-shear emulsifier from ProXES guarantees reproducibility batch after batch. The built-in proprietary automation system hands full control over the shear energy input and other critical parameters.

Droplet distribution impacts emulsion stability and the sensory profile of the final product. FrymaKoruma specializes in droplet size control and is the world market leader in emulsion-based food processing systems.  Its technology solution disperses fine droplets with precision to create superior-quality foods and extend their shelf-life.

The ProxxD® is a highly versatile system that is easily adaptable to match your exact processing needs. Besides emulsification, the ProxxD® performs a range of food processing functions, including dosing &amp; weighing, mixing, and vacuum deaerating.

The integrated unit has been redesigned with a small footprint but large capacities, reaching up to 5,000 kg/hour depending on the product recipe.

Batch processing system for emulsions and suspensions

Large-volume producers of single-serve packs, such as sugar sticks, instant coffee, and instant soup, continuously pack different product sizes into cartons. Intelligent and flexible infeed systems are needed to ensure your products integrate smoothly into the carton line at higher speeds.


<h2>Pack stick packs or flow packs into cartons continuously</h2>
The VENTO Cartoner from Mpac is a carton packaging system with a smart infeed system suitable for single-serve products such as condiments or coffee and milk powders. The unit is made of hygienic stainless steel materials. It has an open design for easy visibility of product flow and quick access to the components in case of maintenance and cleaning.

The entire system is servo-driven and coupled directly to its components for minimum maintenance and long operating life. It is designed to operate 24/7, allowing maximum production yield, and is equipped with an advanced intelligent machine interface that provides information on machine status, maintenance, and changeover controls based on product application. The processes include carton erecting, loading, transportation, and closing. Changeover for different carton sizes and types can be done quickly and automatically.

High-speed Cartoner For Single-Serve Products

Basically, to make milk powder, you need to remove the water content from the liquid milk and turn it into powder. How to do it? After pasteurizing and homogenizing the milk, milk’s water content is removed through filtration, evaporation, and drying. You have then to cool and sieve it before filling the containers. Here's how you get milk powder.

Milk powder

Sugar is the fuel that drives photosynthesis in plants. The leafy organisms constantly convert water and carbon dioxide into glucose. But it takes manufacturers specialized sugar processing technology to extract the sweet crystals from them. Today, most sugar products are derived either from sugarcane or sugar beet.

Sugar

Ketchup processing begins with tons of tomato paste that is mixed and heated together with sugar, vinegar, and spices in a cooking kettle. After cooking, any remaining fibers and particles are filtered out. Once it reaches the right viscosity, your tomato ketchup production process is finished and ready for packaging and transport.

Ketchup

White, black and brown seeds from the mustard plant are the key constituents of this colorful and classic condiment. The various mustard production technology includes a mixer that mixes the mustard seeds with a handful of other ingredients and a mill that finely grinds the seeds to impart their characteristic flavor.

Mustard

Mpac Group is an industry leader in packaging automation, cartoning, and case-packing technologies.

Its complexity begins with the term itself, which has no clear and precise definition in the industry. As Jan Verweijen and Frank Jeurissen from the Mpac Group explain, the big question is always: is it a sachet or a stick pack?

“What is what” is defined by the way it is sealed, not by its width or length. A stick pack is a product with three seals, one of which is in the middle, lengthwise. Instead, a sachet is a four-sided sealed product with no seal in the middle.

First introduced in Japan in the 70s to pack sugar, these single-use sticks are now used to pack everything you can think of. But what impact does your product have on the cartoning process?


<h2>The first step is to find the right balance.</h2>
Stick packs are first filled vertically; this means that all the product is on the bottom.

Before entering the stick packs into the cartons, you need to evenly divide the product over the left and the right side of the stick packs. This step is called equalization and it is done by horizontally shaking the product to redistribute the contents inside the sticks.

“<em>If the weight is not evenly distributed, all the stick packs will slide off toward one corner of the box leading to an unstable formation that can damage the sticks</em>.” Frank points out.

For mere mortals, powder is powder, but for the experts, coffee powder, for instance, has a different structure than cocoa powder.

“<em>Liquids do not need equalization as the fluids divide automatically.” </em>Jan explains.

In addition, the sticks must have a minimum size, usually around 80 or 90 millimeters, to be cartoned horizontally and the shorter the sticks, the more difficult to keep them stable.
<h2>On edge vs. random orientation - Which side do you stand on?</h2>
Premium single-use products, such as coffee or pharmaceuticals, are often packed with the brand name and description always facing the consumer.

“<em>When this is the case, we use a paddle conveyor that brings each stick pack on a single edge so that when pulled out of the box, the branded face is the first thing the consumer sees,</em>” says Jan.

Frank adds: “<em>In 90 percent of cases, manufacturers choose speed over where the stick pack is facing. With random orientation, you can easily speed up to 900 sticks per minute</em>”.

“<em>Our bomb bay system counts each stick individually and puts them together in the quantity the producer requires; then it drops the sticks into the bucket conveyor</em>.” continues Jan.

To prevent damage, the bomb bay system consists of multiple drop levels, and the sticks need to be always dropped at a limited height - no higher than 250 mm.

As every stick has two ends, cartoning single-serve packs may seem easy, but as Jan and Frank explained, the journey from equalization to orientation and bomb bay dropping is not exactly a piece of cake.

Unpacking the world of stick pack cartoning

Food

Pharmaceutical

With over one-third of the population consuming it daily in different forms, coffee is one of the most popular processed beverages worldwide. Not only serving as drinks, but coffee is also often regarded as a culture. Coffee manufacturing is a knowledge-intensive industry. Coffee beans from different regions will reveal different tastes, while the level of caffeine could also be different. When it comes to coffee bean processing, the range of roasts varies from light golden brown all the way to dark. The method of tasting coffee differs between countries, habits, and tools.

Coffee

Eating is more than just nutrition, but we have found ways to increase the nourishing power of our foods. Nutraceuticals manufacturing, from vitamin C powder and probiotics to omega 3 oil, is a concentration of natural ingredients and health supplements that complement our diets. While dietary supplements are not quite haute cuisine, the process of extraction and purification is no less a blend of science and art.

Nutraceuticals

Sauces bring personality to a dish. From a spicy, dense Zhoug to a tangy, runny Suero, sauces add an extra dimension of flavor, texture, and mouthfeel. But developing recipes into industrial products with long shelf lives and consistent tastes is a complex process. Specialized sauce making equipment prepares and combines the ingredients into delicious, high-quality foods. The result is a sauce ready to elevate meals.

Sauce

<span style="font-weight: 400">Spice manufacturing is one of the world's oldest trading products. The word spice refers to any dried part of a plant other than the leaves and is used for seasoning and food coloring. Spices are made from dried barks, roots, berries, and twigs, while green leafy parts of plants are considered herbs. Well-known examples include cinnamon, chilies, star anise, ginger, garlic salt, turmeric, cumin, or pepper, as well as pre-mixed blends such as Masala, Five-Spice Powder, or Old Bay.</span>

Spices

Find production technology for Mayonnaise emulsifying, and connect directly with leading machine manufacturers worldwide

Mayonnaise emulsifying

Which mayonnaise emulsifying equipment do you need?

Economic dispersing machine for emulsions and suspensions

Ultra-fine dispersing machine for emulsions and suspensions

GMP homogenizing system

Vacuum based homogenizer

Universal Mixer and Cooker for Sauces

Batch processing system for emulsions and suspensions

There is currently no equipment listed with your specified properties, but we are sure we can help you. Try us!Contact us
