Tank bottom mixer for high viscosity applications

Achieve seamless emulsification and homogenization of high-viscosity products with precision, optimizing your production efficiency and ensuring consistent quality across batches.

Emulsifies and Homogenizes Viscous Media

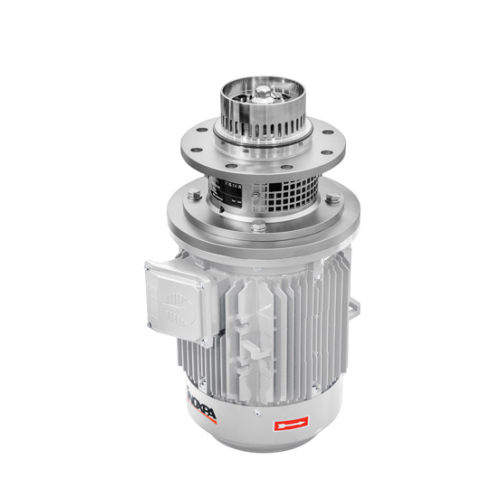

The ME 6100 Tank Bottom Mixer from INOXPA is specifically designed for industries such as food, cosmetics, pharmaceuticals, and fine chemistry. This high shear mixer excels in processes like dispersion, emulsifying, homogenization, and disintegration of solids. It operates at high speed, utilizing the precision-engineered tolerances between the rotor and stator to create substantial suction potential. The product is sheared mechanically and hydraulically, reducing particle size to less than 100 microns, which is essential in producing consistent end-products like salad dressings, lip balms, and polyester resins.

Designed for both open and closed tanks under varying pressures, it integrates seamlessly into continuous production lines. Featuring a single sanitary mechanical seal and interchangeable stator models, maintenance is straightforward. The mixer supports CIP/SIP for efficient cleaning and hygienic operations. It is constructed from AISI 316L for parts in contact with the product, ensuring compatibility with diverse chemical processes and compliance with industry standards.

Benefits

  • Enhances production efficiency by achieving rapid emulsification and homogenization.
  • Minimizes maintenance downtime with easily accessible and replaceable components.
  • Ensures consistent product quality with precise particle size reduction.
  • Facilitates seamless integration into continuous processing lines.
  • Supports high hygiene standards with easy CIP/SIP capabilities.

General


Applications
Fine chemistry,Cosmetics,Viscous media,Food processing,Pharmaceuticals
End products
Paint thinners,Polyester resin,Emulsifiers,Salad dressings,Mayonnaise,Face cream,Cough mixture,Syrup,Lip balm
Steps before
Dispersion,Emulsifying,Homogenization,Disintegration
Steps after
Sterilization,Packing
Input ingredients
solids,liquids,viscous media
Output ingredients
emulsified products,homogenized products,disintegrated solids,dispersed mixtures
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


High shear capability
Particle size reduction to less than 100 microns
Operating Pressure
Atmospheric / Pressure / Vacuum
Material of construction
AISI 316L
Gasket material
EPDM
Motor type
IEC B5,IP 55,F-class insulation
Surface finish
Internal Ra ≤ 0.8 μm
Cleaning method
CIP/SIP
Mechanical seal material
C/SiC/EPDM

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
High shear mixing
Particle size reduction to less than 100 microns
Viscous media compatibility
Suitable for highly viscous media
Integrated cleaning
Easy cleaning and sterilisation (CIP/SIP)
Mixing type
High shear,dispersion,emulsifying,homogenisation,disintegration
Pressure capability
Atmospheric / Pressure / Vacuum
Rotor-stator configuration
Interchangeable stators
Suction potential
High suction potential due to rotor-stator design

Material Compatibility


Corrosion resistance
AISI 316L
Gasket compatibility
EPDM
Seal material compatibility
C/SiC/EPDM

Product type Characteristics


Emulsification ability
High shear

Physical Characteristics


Control panel type
Manual / PLC
Discharge method
Radial thrust
Tank shape and size
Open or closed tanks

Custom Options


Rotor and stator replacement
Interchangeable stators
Sealing options
Single sanitary mechanical seal
Material for parts in contact with product
1.4404 (AISI 316L)
Material for other steel parts
1.4301 (AISI 304)
Gasket material
EPDM
Mechanical seal material
C/SiC/EPDM
Motor type
IEC B5,IP 55,F-class insulation
Cleaning and sterilization options
CIP/SIP compatible
