Multifunctional cheese and sauce processor

Optimize your production of sauces, dressings, and confectionery fillings with precise control over mixing, cooking, and cooling processes, ensuring consistent quality and flavor in every batch.

Mixes, Cooks, Cools, and Homogenizes Food Products

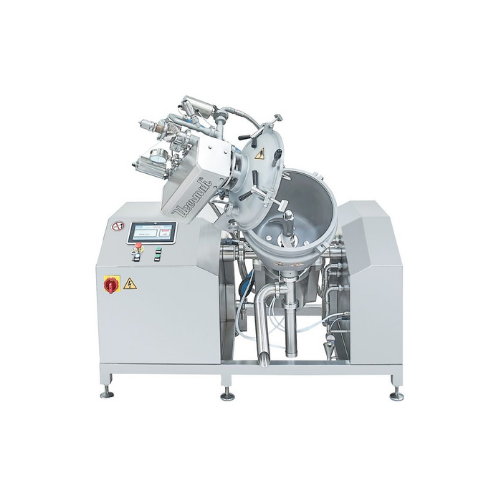

The CCM 60 from Uzermak is a multifunctional industrial mixer that excels in versatility and efficiency, integrating cooking and cooling functions to address complex processing needs for food products. This equipment leverages direct steam injection with a double jacket system for precise thermal management across varying production stages. Capable of processing up to 40 liters per batch, it serves a broad range of applications, including processed cheese, dressings, sauces, confectionery fillings, and baby food. Equipped with a PLC-controlled interface, the CCM 60 allows seamless automation and integration within production lines, ensuring consistent product quality and minimal energy consumption through frequency-controlled motors. Crafted from AISI 304 stainless steel, with optional AISI 316 for higher corrosion resistance, it offers enhanced durability. The machine’s design promotes easy cleaning and maintenance, featuring a discharge valve that facilitates complete product emptying. Customization options, such as vacuum condensers for efficient cooling or inline homogenizers, provide tailored solutions to meet specific production requirements.

Benefits

  • Reduces batch processing time with efficient mixing and thermal management.
  • Enhances product consistency with precise PLC-controlled operations.
  • Minimizes energy consumption through frequency-controlled motor functions.
  • Facilitates seamless integration into existing production lines for varied applications.
  • Offers complete product emptying, reducing waste and maximizing yield.

General


Applications
Ketchup,Sauces,Processed cheese,Confectionery fillings,Dressings,Mayonnaise,Almond paste,Baby food
End products
Fruit puree baby food,Ranch dressing,Classic mayonnaise,Caramel confectionery filling,Barbecue sauce,Marzipan,Tomato ketchup,Cheddar cheese sauce
Steps before
Ingredient Preparation,Pre-mixing,Grinding
Steps after
Cooling,Vacuum Deaeration,Homogenization,Filling,Packaging
Input ingredients
processed cheese ingredients,dressing ingredients,sauce ingredients,baby food ingredients,confectionery fillings ingredients,almond paste ingredients,mayonnaise ingredients,ketchup ingredients
Output ingredients
processed cheese,dressings,sauces,baby food,confectionery fillings,almond paste,mayonnaise,ketchup
Market info

Technical Specifications


Capacity
Max 40 liters/batch
Bowl Capacity
60 liters
Processing Temperature
Max 95 °C
Steam Consumption
90 kg/h
Main Motor Power
7.5 kW
Scrapper's Motor Power
0.37 kW
Vacuum Pump Power
2.2 kW
Rotation Speed
0-3000 rpm
Lid Opening/Locking
Manual
Tilting
Manual
Discharge Method
Valve

Operating Characteristics


Working mechanism
Multifunctional (Mixing,Heating,Cooling,Grinding,Emulsifying)
Integrated steps
Direct steam injection,vacuum deaeration,homogenizing
Batch vs. continuous operation
Batch
Automation level
PLC-controlled
CIP/SIP
Manual cleaning required

Material Compatibility


Corrosive resistance (e.g. acids)
AISI 304 and AISI 316 stainless steel

Product type Characteristics


Heat sensitivity
Max 95°C

Physical Characteristics


Bowl capacity
60 liters
Product processing capacity
Max 40 liters/batch
Machine material
AISI 304 quality stainless steel
Lid opening/locking
Manual
Tilting
Manual
Discharge method
Discharge valve

Custom Options


Bowl capacity
60 liters
Product processing capacity
Max. 40 liters/ batch
Processing temperature
Max 95 °C
Control panel type
PLC and touch screen
Motor control
Frequency controlled
Motor speed
2 knives with 0–3000 rpm
Material quality
AISI 304 stainless steel,optional AISI 316
Integration options
Optional inline mechanical homogenizer
Vacuum capability
Yes
Discharge options
Manual tilting,discharge pump
Heating system
Direct steam injection,double jacket
Cooling system
Double jacket cooling,optional vacuum condenser
Sealing type
Water cooled mechanical double seal
