Pilot plants for small-scale viscous product processing

Optimize your product development with pilot plants designed for simulating industrial processes, from pasteurization to crystallization, enabling efficient testing and innovation on a small scale while conserving resources.

Simulates Industrial Food Processing Operations

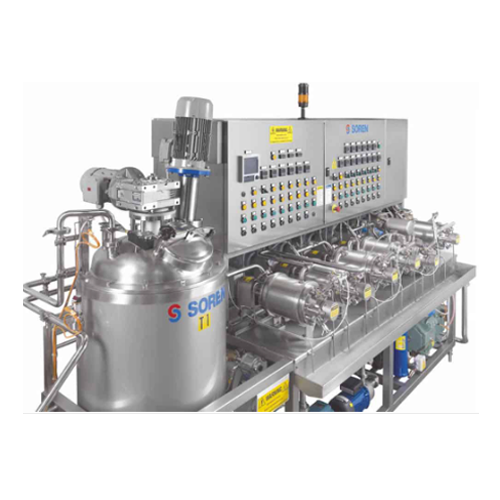

The Pilot Plant from Soren is designed to emulate full-scale food processing operations, making it ideal for small-scale and R&D applications in food, dairy, confectionery, and beverage industries. This equipment allows for efficient preparation, cooking, pasteurization, and cooling of various viscous products, including creams, sauces, and gelatins. With processing capabilities from 15 to 100 kg/h, Soren’s pilot plant supports product development while minimizing waste. It features advanced automation through a PLC system for streamlined control and monitoring. Integration is seamless, with options for vacuum cooking and aeration directly into the production line. Constructed with AISI 316 stainless steel, it offers excellent corrosion resistance crucial for food processing. Maintenance is simplified with a CIP system ensuring thorough cleaning with minimal downtime, making it a versatile and reliable choice for testing new product formulations.

Benefits

  • Streamlines product development by simulating full-scale operations in an R&D setting.
  • Minimizes material waste thanks to small-batch processing capabilities.
  • Enhances product quality with precise temperature and process control.
  • Reduces labor and operational costs with automated PLC-controlled systems.
  • Ensures reliable performance and longevity with corrosion-resistant AISI 316 stainless steel construction.

General


Applications
Ketchup,Sauces,Gelatins,Jams,Ice cream,Mayonnaise,Margarine,Syrups,Creams
End products
Traditional ketchup,Whipped ice cream,Aerated filling cream,Strawberry jam,Vanilla pudding,Barbecue sauce,Margarine spread,Non-aerated filling cream,Eggless mayonnaise,Fruit syrup
Steps before
Preparation,Mixing,Cooking
Steps after
Cooling,Pasteurization,Sterilization,Homogenization
Input ingredients
Aerated filling creams,Non-aerated filling creams,Margarine,Plasticized fats,Ice cream mixes,Pudding mixes,Cream mixes,Parfaits,Mousse,Jams,Gelatins,Syrups,Sauces,Mayonnaise,Ketchup
Output ingredients
Pasteurized products,Sterilized products,Cooked products,Cooled products,UHT treated products
Market info

Technical Specifications


Capacity
15-100 kg/h
Preparation and mixing tank capacity
100 liters
Temperature range
Up to 151°C
Glycol cooling temperature
~15-20°C
Glycol production unit capacity
5,000 kcal/h
Electrical boiler capacity
50 liters
Maximum vacuum residue
0.1 bar
Automation
PLC-controlled
Maximum operating pressure for homogenizer
250 bar
Emulsifier
Included
Compressed air or nitrogen injection range
1-60 l/h

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Batch / Inline
CIP/SIP
CIP with centrifugal pump
Cleaning method
CIP

Product type Characteristics


Foaming potential
High potential
Container capacity
15 to 100 kg/h
Product range
Fats,cream,sauces,and syrups

Physical Characteristics


Compact footprint
Designed for small-scale operations
Material type
AISI 316
Discharge method
Rotative pump for product transferring

Custom Options


Control panel type
AISI 304
Vacuum cooking option
Max vacuum residue
Freezer option
Freezer mod. CS100
Pin worker option
Pin worker for fat crystallization
Creams storage units
With vacuum (0.1 bar)
Homogenizer option
Capacity
