Scraped surface heat exchanger for food processing
Efficiently handle temperature-sensitive food products with a compact system that ensures gentle processing and precise thermal control, ideal for maintaining product quality and consistency.
Processes and Cools Liquid and Slurry Products

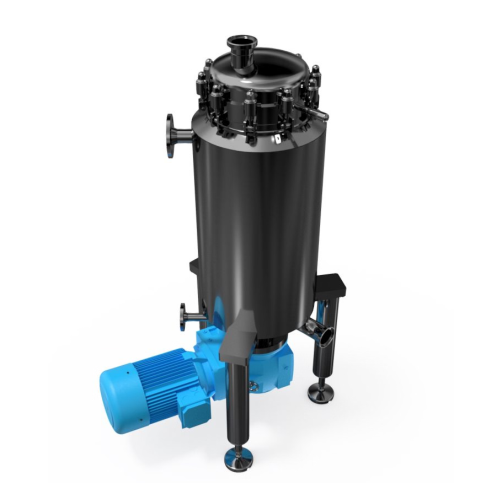

The PERFITHERM from Perfinox is a vertical scraped surface heat exchanger adept for demanding food and beverage processing applications. It leverages a dual-jacketed vertical design to maximize heat exchange surfaces, enabling efficient heating, cooling, sterilizing, and pasteurizing processes. With capacities from 100 kg/hr to 10,000 kg/hr, this system integrates seamlessly into both batch and continuous production lines, managing operations like emulsifying and homogenizing for products ranging from soups to smoothies.
PERFITHERM’s unique advantage lies in its gentle product handling mechanism combined with advanced scrapers, reducing thermal degradation and maintaining product quality. Automated and designed for both CIP (Cleaning-in-Place) and SIP (Sterilization-in-Place), it ensures thorough, easy maintenance without disassembly. Equipped with a PLC control system, it supports remote monitoring and reduces energy consumption through optimized motor control.
Constructed with durable materials, the heat exchanger is suitable for handling liquid and slurry products like dairy, plant-based beverages, and fruit preparations, compliant with food industry standards. Customizable features, including temperature probes and motor shrouds, offer engineering flexibility to meet specific processing requirements.
Benefits
- Enhances product quality by maintaining gentle handling, minimizing degradation.
- Boosts efficiency with dual-jacket design, achieving precise thermal control.
- Lowers operational costs through energy-efficient motor and remote monitoring.
- Simplifies maintenance with CIP and SIP capabilities, reducing downtime.
- Customizable setup adapts to diverse processing needs, increasing line flexibility.
- Applications
- Smoothies,Ketchup,Ready meals,Sauces,Plant-based beverages,Soups,Hummus,Dairy products,Spirits,Wines,Fruit preparations,Dressings,Mayonnaise,Purees,Patés,Dairy concentrates,Creams,Juices
- End products
- Mango smoothie,Lasagna,Whipped cream,Caesar dressing,Duck liver paté,Apple puree,Strawberry jam,Chardonnay wine,Salad dressing mayonnaise,Chicken noodle soup,Yogurt drink,Orange juice,Almond milk,Classic hummus,Tomato ketchup,Condensed milk,Vodka,Bechamel sauce
- Steps before
- Mixing,Heating,Emulsifying,Crystalizing,Homogenizing
- Steps after
- Sterilizing,Pasteurizing,Cooling,Packaging,Aseptic Processing
- Input ingredients
- Mayonnaise (low and full fat),Ketchup,Sauces,Soups,Creams,Ready meal components,Patés,Fruit preparations,Dairy concentrates,Hummus
- Output ingredients
- Aseptic Cooling,Crystalization,Sterilization,Pasteurization,Gelling
- Market info
- Perfinox is known for its expertise in designing and manufacturing industrial engineered-to-order equipment, particularly in the food and beverage sector, providing tailored processing solutions and innovative technologies to enhance production efficiency and quality.
- Capacity
- 100–10,000 kg/h
- Vertical design
- Compact equipment
- Temperature range
- Aseptic Cooling,Heating
- Scrapers
- Lid equipped
- Automation
- Skid mounting,including control system
- Cleaning method
- CIP/SIP
- Temperature probes
- Inlet/Outlet
- Working Mechanism
- Scraped Surface Heat Exchanger
- Integration
- Combines tubular heat exchanger with scraping system
- Flow Type
- Standard / Aseptic
- Cleaning Method
- CIP / SIP
- Automation Level
- PLC-controlled
- Batch vs Continuous Operation
- Inline Continuous
- Temperature Control
- Temperature probes (inlet/outlet)
- Design Feature
- Vertical design,compact equipment
- Product Handling
- Gentle
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Compact vertical design
- Discharge method
- Jacketed product outlet
- Control panel type
- Included in skid mounting
- Compact footprint
- Vertical design,compact equipment
- Control panel type
- HMI with modulating valve
- Integration possibilities
- Skid mounting with control system
- Design flexibility
- Vertical,compact design
- Temperature probes
- Inlet/outlet
- Scrapers
- On the lid
- Mechanical seal type
- Double mechanical seal
- Product outlet
- Jacketed product outlet
- Mounting
- Skid mounting
