Inline wet mill for mayonnaise emulsions

Eliminate the challenges of achieving stable, uniform emulsions in your sauces and dressings with an inline solution designed for continuous, high-speed operation, offering seamless shear adjustments and superior handling of low-fat or egg-free recipes.

Emulsifies and Homogenizes Sauces and Dressings

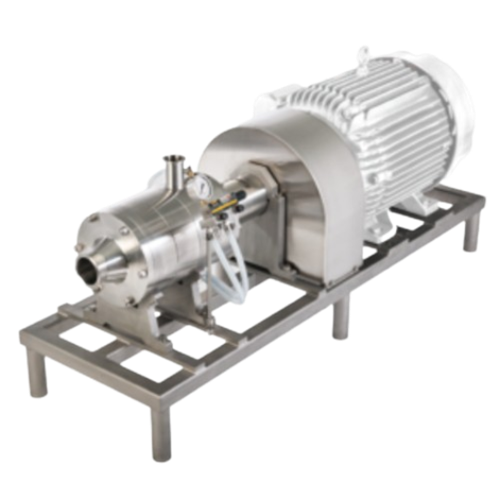

The Admix Mayomill is a cutting-edge inline wet milling device specifically engineered for the rigorous demands of blending and emulsion stabilization in the food and beverage industry. This device stands out due to its continuous operation capabilities, designed to emulsify and homogenize not only traditional mayonnaise and dressings but also egg-free and low-fat alternatives. The Mayomill operates without the need for manual gap adjustments; its nine individually optimized shear points allow for precise shear rate control through electronic RPM adjustments, enhancing process flexibility and product consistency. With a capacity of up to 110 gallons per minute, it supports significant throughput while maintaining uniform particle size distribution.

The Mayomill is constructed for robust processing and is fully CIP-able, drastically reducing cleaning time and maintenance costs by eliminating manual disassembly. Its seals are engineered to withstand pressures up to 725 PSI, reducing downtime and increasing filler efficiency. Ideal for applications spanning sauces, salad dressings, and whipped formulations, the Admix Mayomill is a versatile, reliable solution for manufacturers looking to optimize production line efficiency while maintaining product quality.

Benefits

  • Increases production efficiency with continuous and high-speed operation.
  • Reduces cleaning labor and costs with a fully CIP-able design.
  • Enhances product quality by maintaining consistent emulsion stability.
  • Lowers maintenance expenses with seals rated for high pressure, reducing leakage risks.
  • Offers flexibility for cost reduction in formulations with adjustable shear rates.

General


Applications
Sauces,Egg-free recipes,Whipped dressings,Salad dressings,Condiments,Dressings,Mayonnaise,Emulsions,Low fat formulas
End products
Barbecue sauce,Bearnaise sauce,Low-fat mayonnaise,Caesar salad dressing,Hollandaise sauce,Traditional mayonnaise,Aioli,Blue cheese dressing,Tartar sauce,Creamy salad dressing,Vinaigrette dressing,Mustard,Ketchup,Thousand island dressing,Egg-free mayonnaise,Vegan mayonnaise alternatives,Reduced-fat dressings,Ranch dressing,Sandwich spreads
Steps before
Mixing,Emulsification
Steps after
Packing,Filling
Input ingredients
mayonnaise,salad dressings,oil,egg yolk,soybean oil
Output ingredients
stable emulsion,uniform emulsion,mayonnaise with reduced egg content,mayonnaise with reduced oil content
Market info
Admix is known for its expertise in advanced mixing and blending technology for industrial applications, offering engineered-to-order solutions with a reputation for high-quality equipment and innovative design.

Technical Specifications


Capacity
Up to 110 GPM
Pressure Rating
725 PSI
Shear Rate Adjustments
Electronically via RPM control
Particle Size Reduction
3-5 microns
Viscosity Handling
300,000+ CPS
Continuous Operation
Designed for 24/7 use

Operating Characteristics


Working Mechanism
Rotor-stator
Integrated Steps
Mixing,Emulsifying,Homogenizing
CIP Capability
Yes
Batch vs. Inline
Inline Continuous
Shear Rate Adjustability
Electronic RPM Adjustments
Automation Level
PLC Control
Throughput Capacity
Up to 110 GPM

Material Compatibility


Cleanability
Clean-In-Place (CIP) capable
Density/particle size
0.5–2.5 g/cm³ / 3–5 µm

Product type Characteristics


Temperature Sensitivity
Dependent on egg and oil mixture

Physical Characteristics


Discharge method
Inline continuous flow
Control panel type
Electronic speed control

Custom Options


Control panel type
Touchscreen / PLC
Integration possibilities
SCADA / PLC compatible
Shear rate adjustments
Electronic speed control
Sealing system
Advanced mechanical seals
