Vacuum based homogenizer

When producing liquid and viscous products such as mayonnaise, sauces, dressings and ketchup it’s vital to achieve thorough emulsification and homogenization to ensure product quality. Traditional homogenizing solutions can be slow and difficult to clean, increasing downtime between batches. A modern vacuum-based system offers the flexibility to produce a wide range of products quickly, with exceptional quality and short cycle time.

Vacuum processing plant for emulsions, suspensions and gels

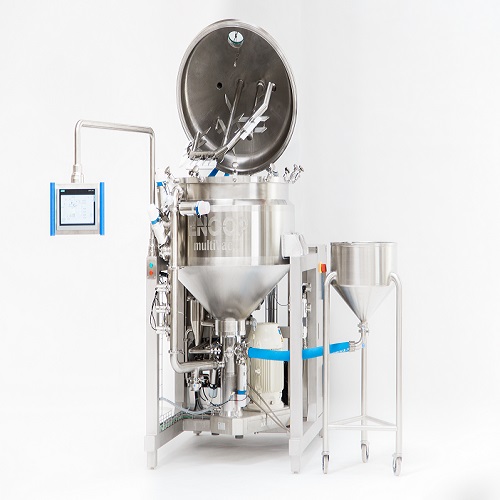

The MultiVacH from Enoop is a state-of-the-art processing plant for the production of high-quality sauces, mayonnaise, ketchup and other liquid and viscous products.

Designed to be completely flexible, MultiVacH can be used whenever liquids or powders need to be thoroughly mixed and offers both cooling and heating to suit all production methods.

Ingredients are circulated via vacuum pump to a high-shear mixing element, then recirculated. This allows for extremely fast processing, as the circulation of product provides additional macro-mixing.

Downtime associated with batch or product changes is reduced to an absolute minimum thanks to fully pumped emptying via the recirculation line. In addition, rotating clean-in-place nozzles speeds up cleaning, allowing the MultiVacH to be used in multi-recipe environments.

Heating and cooling are via a double-jacket system, with direct steam injection available for high-temperature recipes.

Control is via a Siemens PLC with 12” touchscreen display, allowing observation and control of all parameters. Production can be manual, semi-automatic or fully automatic to your requirements.

Benefits

  • High speed, high-efficiency homogenization
  • Full CIP system reduces downtime to a minimum
  • Suitable for multi-recipe and batch production
  • More energy efficient than traditional high-shear mixing
  • Available in volumes from 20l to 2000l to suit your exact needs
